0V-30V 3 Wire DC Voltmeter Terminal 0.56 Inch LED Digital Voltmeter Accessories Reverse Connection Protection, Color: Red
0V-30V 3 Wire DC Voltmeter Terminal 0.56 Inch LED Digital Voltmeter Accessories Reverse Connection Protection, Color: Red
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description

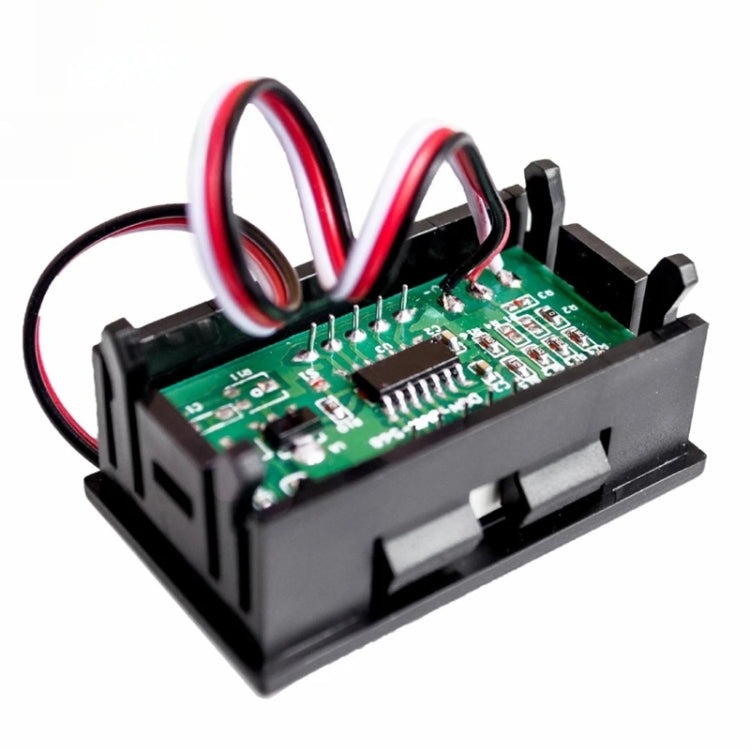

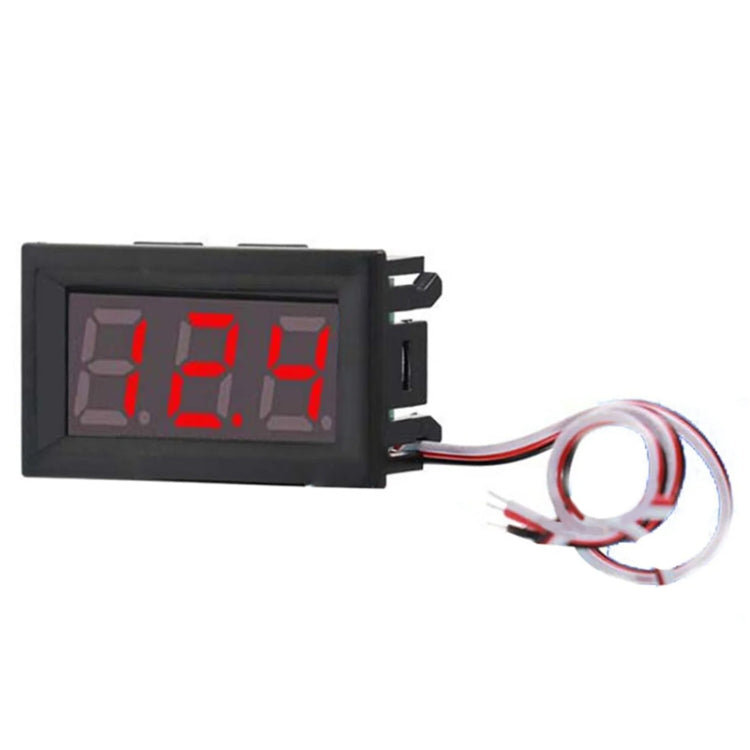

0V-30V 3 Wire DC Voltmeter is a digital voltmeter designed for measuring voltage in the range of 0V to 30V. It is suitable for everyday use in various testing applications, providing accurate readings with reverse connection protection.
- Product Type: Current & Voltage Tester
- Measuring Range: 0V-30V
- Input Impedance: Greater than 100K ohms
- Refresh Speed: Approximately 300ms per reading
- Operating Temperature: -10 to 65 degrees Celsius
- Power Supply Range: Red DC4.5-30V, Green DC4.7-30V, Blue DC5-30V
- Allowable Error: About 1 percent; greater than or equal to 10V error of about 0.3V, less than 10V error of about 0.1V
- Operating Current: Red less than 23mA, Green less than 18mA, Blue less than 13mA
- Display Mode: Three 0.56-inch LED digital tubes
- Display Color: Red, Green, Blue
- Length of Lead Wire: 20 cm
- Weight: Approximately 19 g
- Size: Approximately 4.8 x 2.9 x 2.2 cm; Mounting Holes: Approximately 4.6 x 2.7 cm
- Key Feature: Reverse connection protection
- Material: LED
- Intended Use: Everyday use
- Category: Test Equipment
