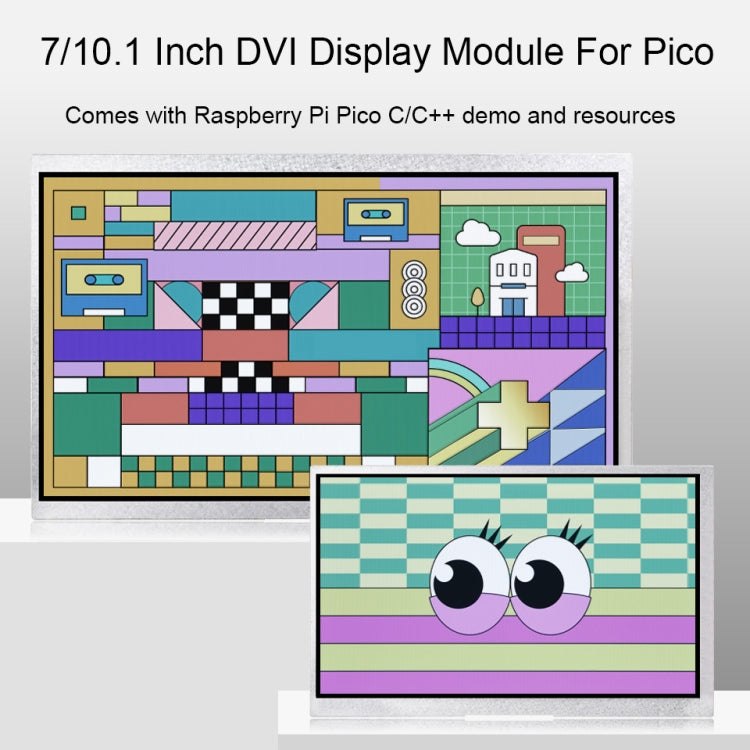

10.1 Inch Waveshare For Raspberry Pi Pico 1024×600 Pixel IPS Panel DVI Display Module

Name: 10.1 Inch Waveshare For Raspberry Pi Pico 1024×600 Pixel IPS Panel DVI Display Module
Brand: Waveshare
SKU: TBD0600688302
Price: 1269.00 ZAR
Availability: InStock

R 1,269.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features:
1. Using IPS panel, 1024×600 resolution, 170-degree viewing angle
2. Using DVI interface, higher communication speed

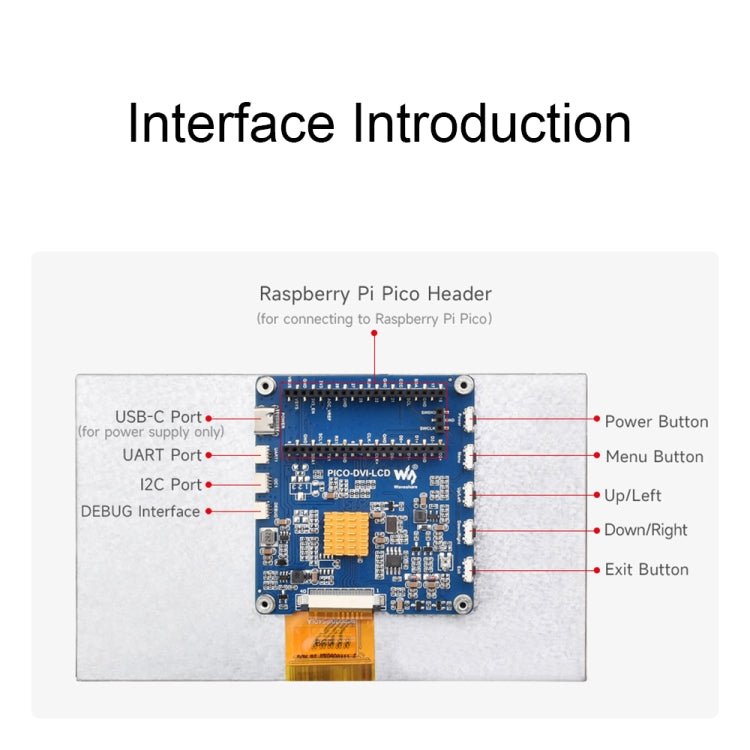

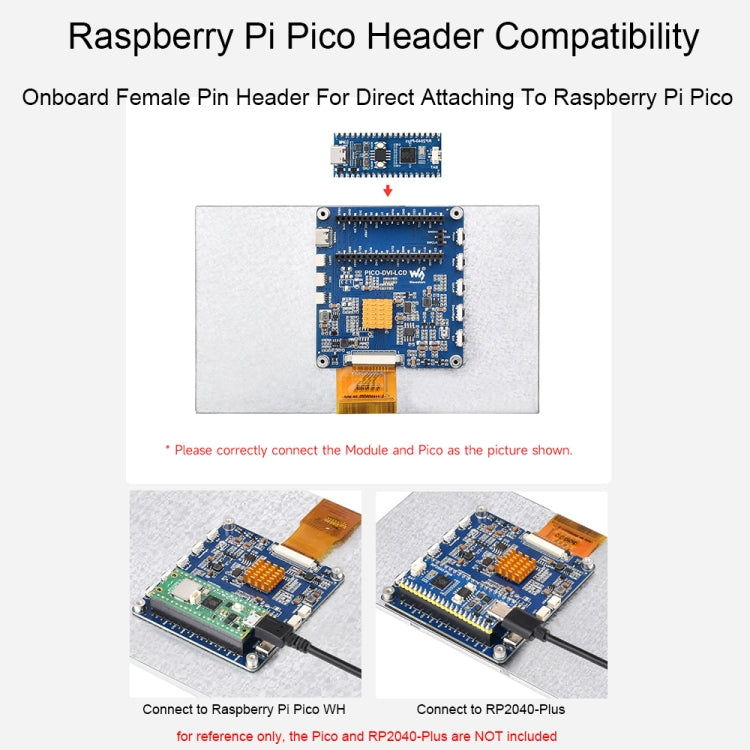

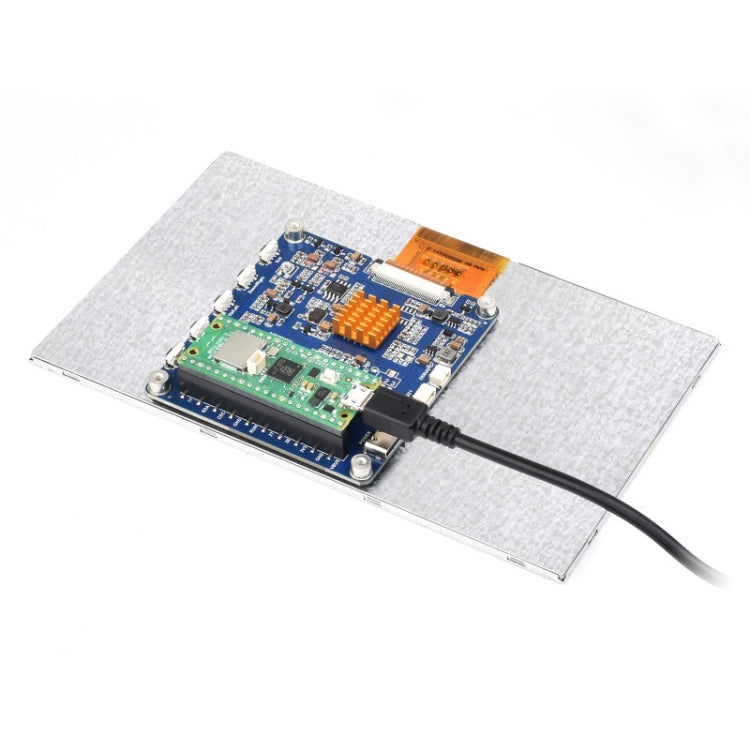

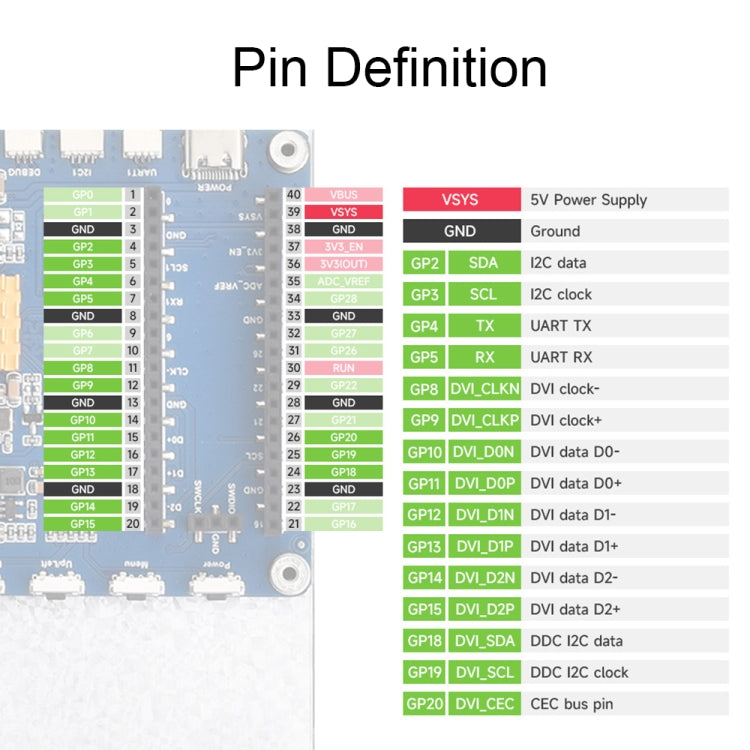

3. Based on Raspberry Pi Pico with onboard 40PIN connector
4. Built-in OSD menu for brightness/contrast adjustment
5. Available in 7-inch and 10.1-inch display sizes
6. Suitable for application scenarios such as advertising image display
7. Comes with online development resources and manuals (Raspberry Pi Pico C/C++ example)

Product parameters:
1. Working voltage: 5V
2. Resolution: 1024×600 pixels
3. Communication interface: DVI
4. Display panel: IPS

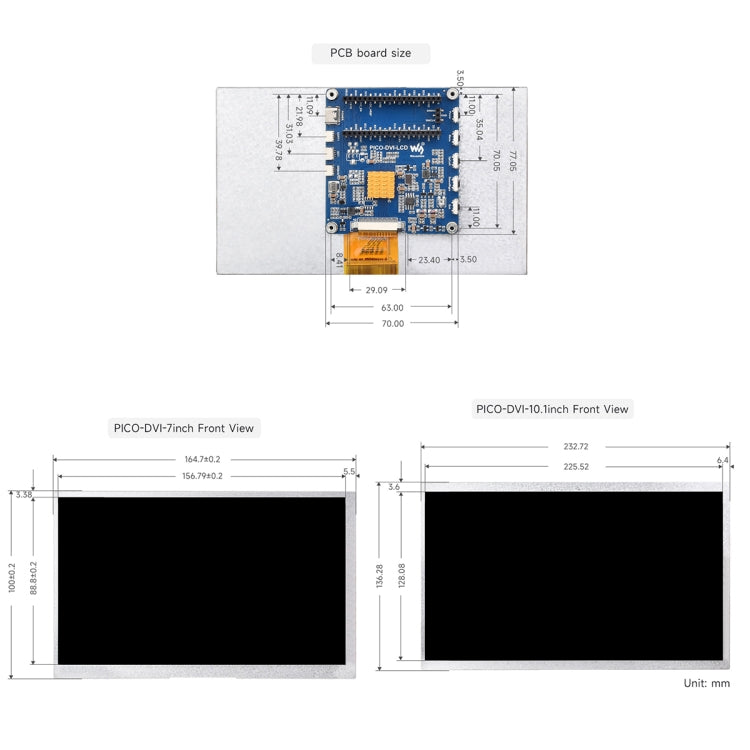

5. Display size:
7 inches: 154.21×85.92mm
10.1 inches: 222.72×125.28mm
6. Pixel size:
7 inches: 0.1506×0.1432mm
10.1 inches: 0.2175×0.2088mm
7. Size: 7 inches: 164.7 x 100mm, 10.1 inches: 232.72 x 136.28mm
8. Weight: 7 inches: 139 grams, 10.1 inches: 271 grams
