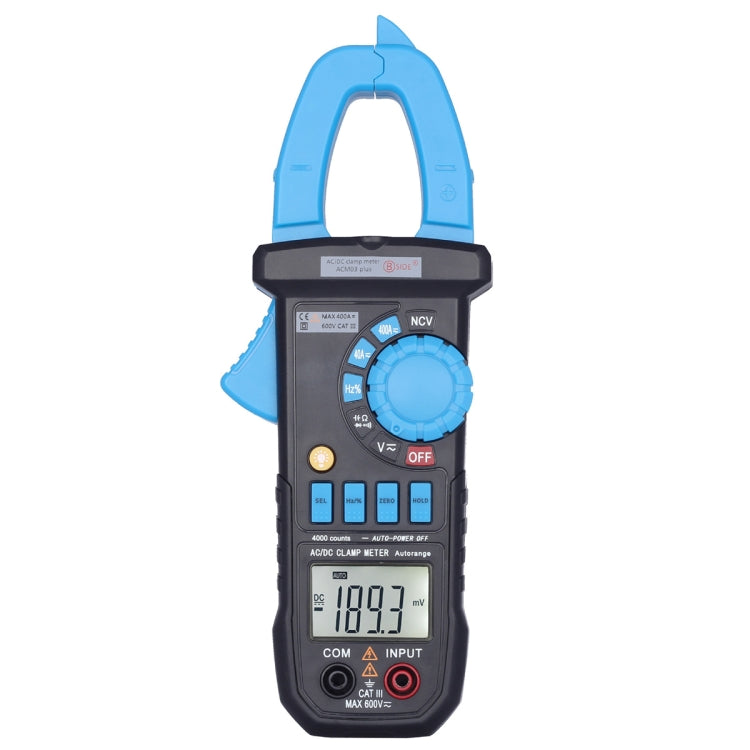

BSIDE ACM03 Plus 400A AC / DC Clamp Meter
BSIDE ACM03 Plus 400A AC / DC Clamp Meter
Sale
Sold out
Pre-order
Regular price
R 1,049.00
Regular price
Sale price
R 1,049.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
1. It is designed according to the relevant safety requirements of iec1010-1 and iec1010-2-032
2. Used to measure AC and DC current
3. Non-contact voltage detection (NCV)
4. AC/DC voltage, resistance, capacitance, frequency, diode and circuit, etc.
5. Auto/Manual range
6. Pass section test, duty cycle test
7. LCD display data
8. Clamp head lighting and backlight
9. Data retention.
10. Display 3999 word count
11. DC voltage: 400m/4V/40V/400V/600+-0.8%
12. AC voltage: 400mV+-0.8%, 4V/40V/400V/600V+-1.2%
13. Alternating current: 40A/400A+-3.0%
14. DC current: 40A/400A+-3.0%
15. Resistance: 400ohm/4kohm/40kohm/400kohm/4Mohm+-1.2%, 40Mohm+-2.0%
16. Capacitance: 40nF/400nF/4uF/40uF/100uF+-3.0%
17. Frequency: 50Hz/500Hz/5000Hz/50kHz/100kHz+-1.0%
18. Non-contact voltage detection (NCV): 90-1000V (50-500Hz)
19. Power supply: 3x1.5V, AAA battery (not included)
20 Product size: 21.5x7x2.7cm
21. Product weight: 300g
