DRV8825 Stepper Motor Driver Carrier Reprap 4 Layer PCB
DRV8825 Stepper Motor Driver Carrier Reprap 4 Layer PCB
Sale
Sold out
Pre-order
Regular price
R 209.00
Regular price
Sale price
R 209.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description

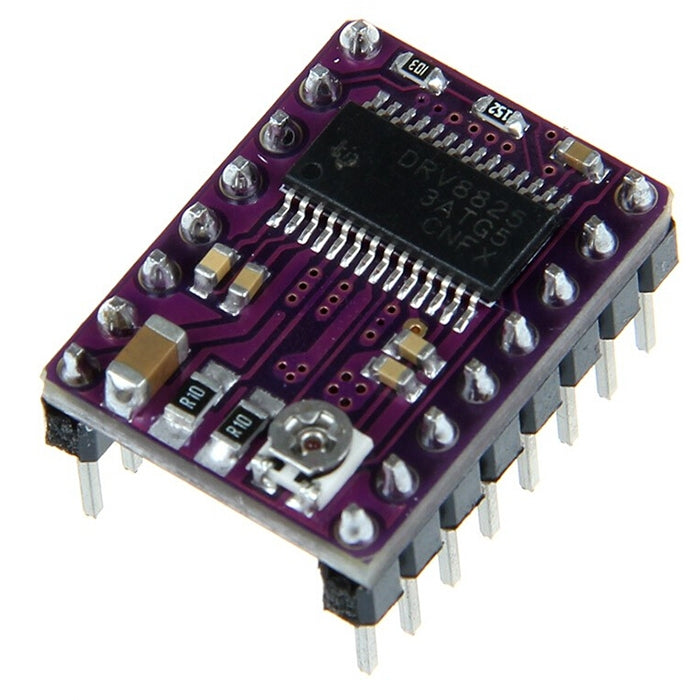

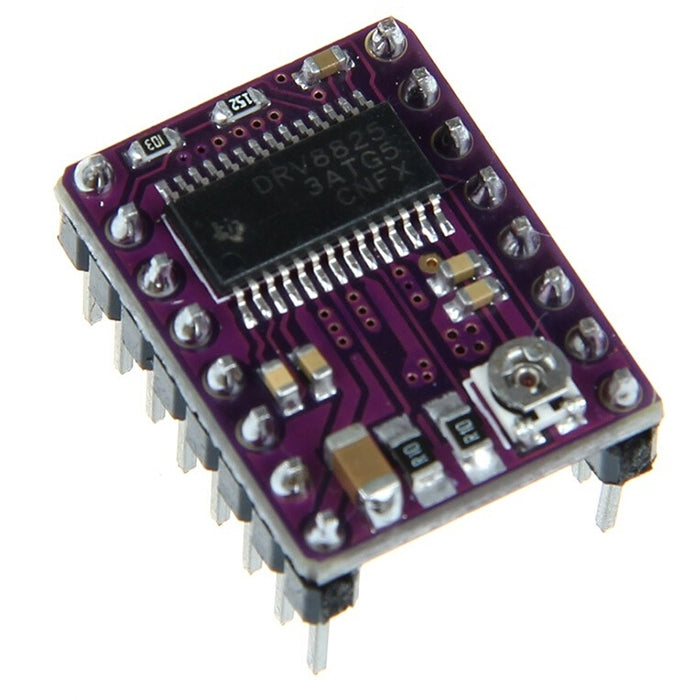

1. The DRV8825 stepper motor driver carrier is a breakout board for TI DRV8825 microstepping bipolar stepper motor driver.
2. Simple step and direction control interface.
3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
4. Can interface directly with 3.3 V and 5 V systems.
5. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
6. Short-to-ground and shorted-load protection.
7. 4-layer, 2 oz copper PCB for improved heat dissipation.
8. Exposed solderable ground pad below the driver IC on the bottom of the PCB.
2. Simple step and direction control interface.
3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
4. Can interface directly with 3.3 V and 5 V systems.
5. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
6. Short-to-ground and shorted-load protection.
7. 4-layer, 2 oz copper PCB for improved heat dissipation.
8. Exposed solderable ground pad below the driver IC on the bottom of the PCB.
