DTECH IOT5060A RS485 To LORA Serial Port Wireless Transmission Module
DTECH IOT5060A RS485 To LORA Serial Port Wireless Transmission Module
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 working days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Communication mode: point-to-point, point-to-multipoint, multipoint-to-multipoint, can be mixed, regardless of the transceiver end
2. Working voltage: DC 5V (powered by micro usb)
3. Working current: 50mA 5V
4. Performance design: super anti-electromagnetic interference design.
5. Frequency range: 410MHz-441MHz
6. Wireless channels: 115
7. Receiving sensitivity: -140dbm
8. Transmitting power: 20dbm
9. Antenna connection: external SMA male antenna
10. Operating frequency: 433MHz
11. Baud rate: 1200-115200bps, the default baud rate is 9600bps
12. Support data bits: 7, 8, 9
13. Stop bits: 1, 15, 2
14. Check Digit: Even, Nore, Odd

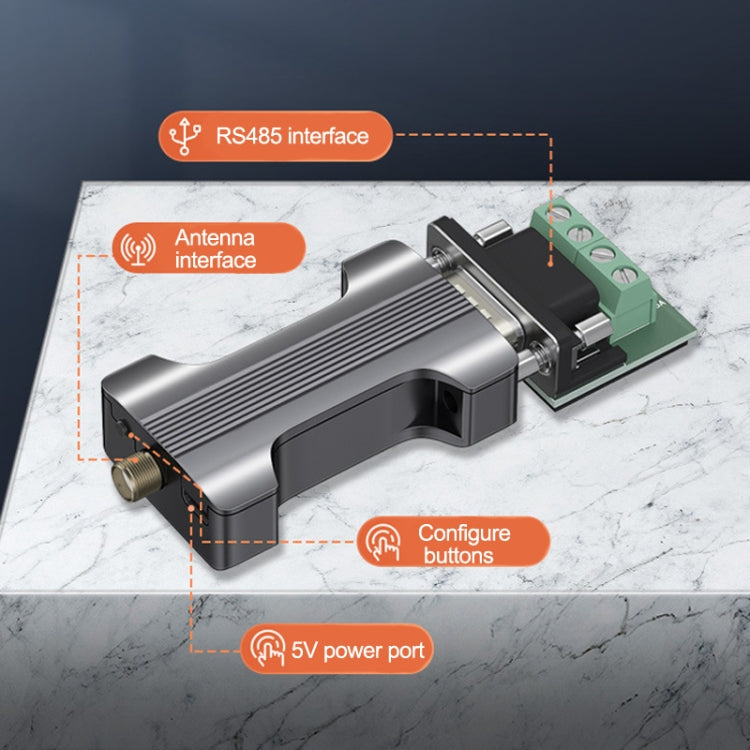

15. Interface: RS485
16. Indicator light: data sending (yellow light), data receiving (green light)
17. Supported operating systems: WindowsXP/Windows7/Windows8/Windows10/Linux/Mac OS and other operating systems
18. Configuration tool: DtechWifiConfig configuration tool is used, which can be configured in a few steps and can be used (press and hold the configuration button for 5s to enter the configuration mode)
19. Transmission distance: about 0-1000 meters

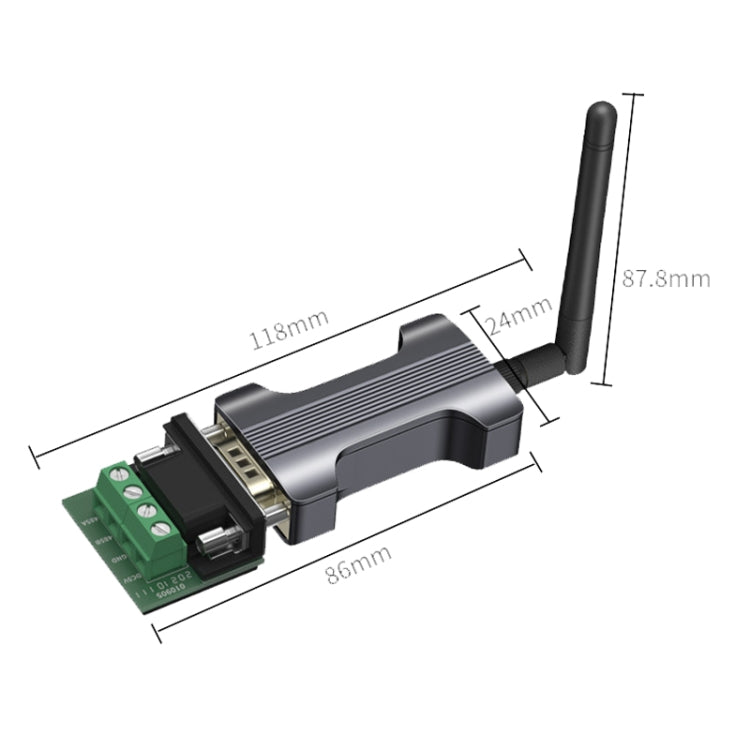

20. Size: about 11.8 x 2.4 x 8.78cm
21. Weight: about 55g
Features:

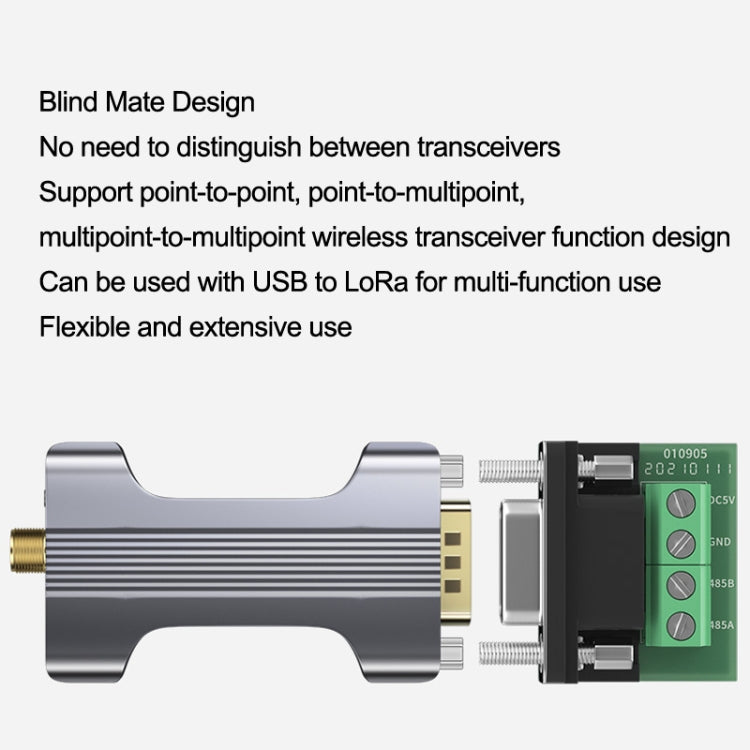

1. Blind insertion design, no need to distinguish between transceivers
2. Support point-to-point, point-to-multipoint, multipoint-to-multipoint wireless transceiver function design
3. Can be used with USB to LoRa for multi-functional use, flexible and extensive use

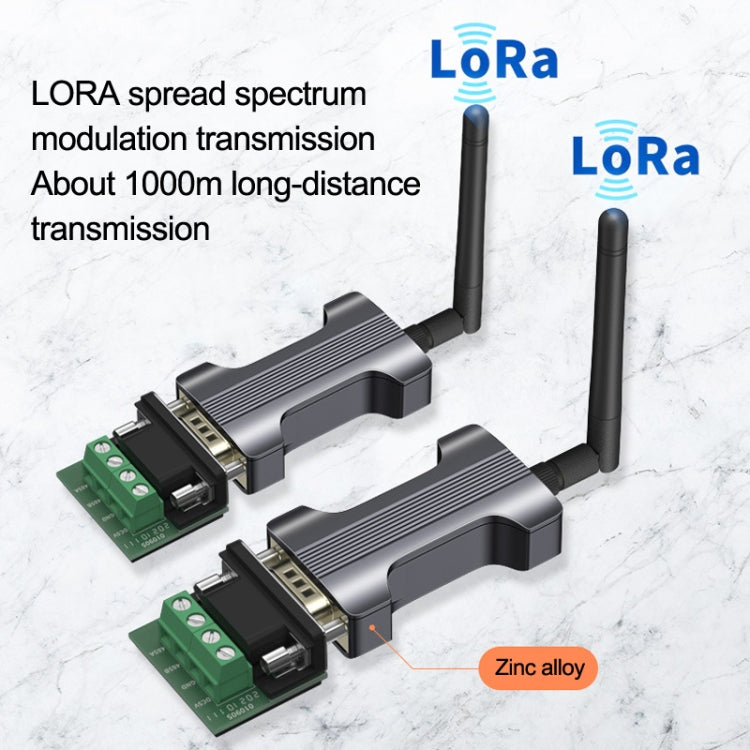

4. LORA spread spectrum modulation transmission, about 1000m long distance transmission

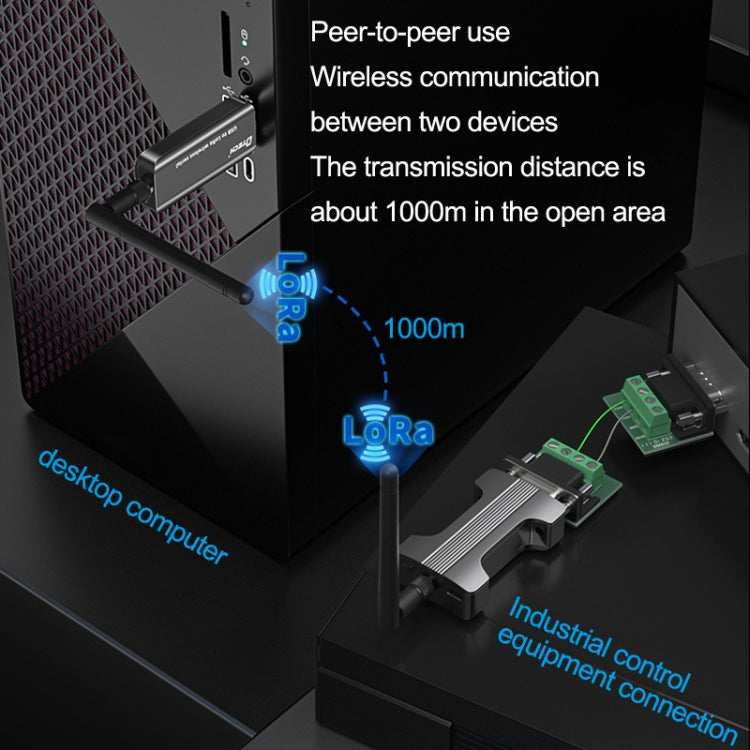

5. Point-to-point use can realize wireless communication between two devices, and the transmission distance is about 1000m in open areas
