Description

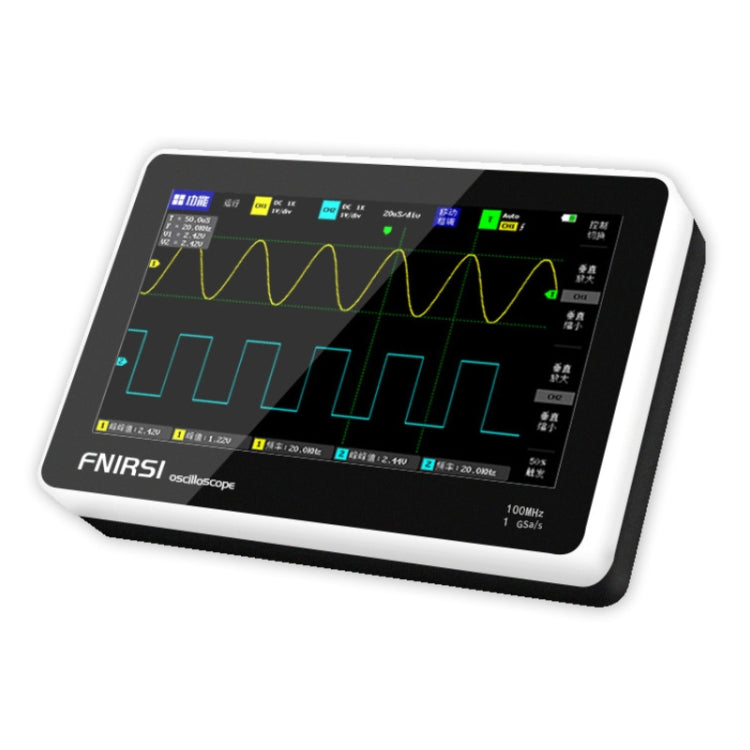

The FNIRSI 1013D is a digital oscilloscope designed for testing and measuring electronic signals. It is suitable for everyday use in various electronic applications, such as troubleshooting circuits and analyzing signal behavior.
- Product Type: Digital Oscilloscope
- Material: ABS
- Analog Bandwidth: 100MHz
- Number of Channels: 2
- Real-time Sampling Rate: 1GSa/s
- Vertical Sensitivity: 50mV/div to 500V/div
- Horizontal Time Base Range: 50S/div to 10nS/div
- Test Voltage: 40V (1X probe), 400V (10X probe)
- Storage Depth: 240Kbit
- Input Resistance: 1MΩ
- ADC Precision: 8 bits
- Coupling Method: AC/DC
- Trigger Mode: Single, Normal, Automatic
- Trigger Edge: Rising Edge/Falling Edge
- External Trigger Voltage: 0 to 40V
- Operation Method: Capacitive Touch Screen + Gesture
- Expansion Port: USB Image Export
- Intelligent Anti-Burnout: 1X can withstand up to 400V
- Screen: 7-inch 800x480 resolution color TFT LCD
- Voltage Measurement Range: 1X (0-40V), 10X (0-400V), 100X (0-4000V)
- Measurement Parameters: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Period
- Cursor Measurement Function: Yes
- Trigger Function: Complete (Single, Normal, Automatic)
- Waveform Display: Pause Function
- One-button AUTO: Yes
- Waveform Storage: Yes, with screenshot capability
- Storage Capacity: 1GB (1000 screenshots + 1000 sets of waveform data)
- Waveform Image Manager: Yes
- FFT Display Function: Yes
- Battery: Built-in 6000mAh rechargeable lithium battery
- Battery Life: Up to 4 hours at highest screen brightness
- Memory Compression Technology: Yes
- Screen Brightness Adjustment: Yes
- Dimensions: 184mm x 124mm x 50mm
- Packing List: FNIRSI 1013D Oscilloscope Host x 1, Matched 100MHz probes (1X and 10X) x 2, USB cable x 1, US charging adapter x 1
