Description

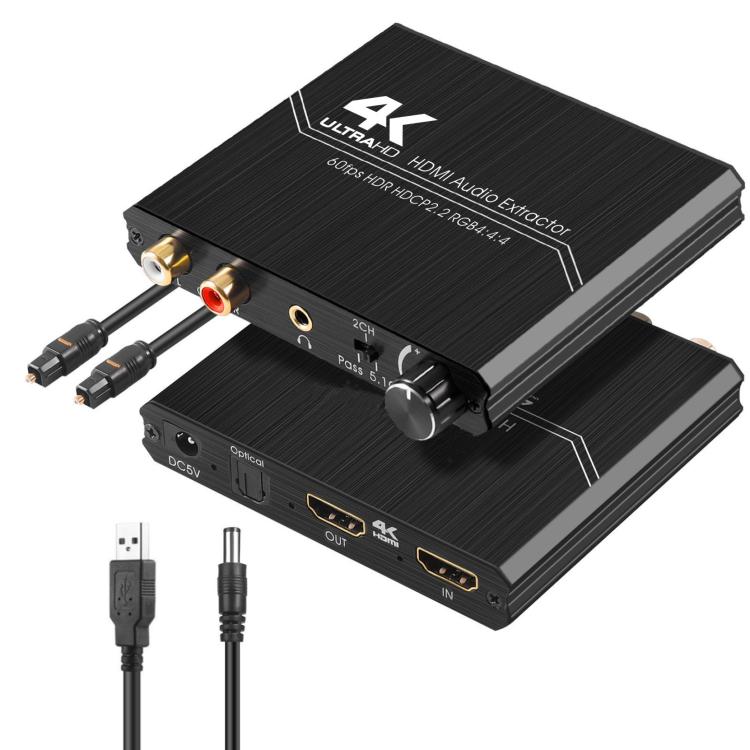

HDMI 2.0 Audio Extractor is a splitter designed to separate audio signals from HDMI sources. It is suitable for connecting audio source devices to display devices while providing volume control and multiple audio output options.
- Product Type: Splitter
- Compatibility: HDMI devices
- Material: Not specified
- Color/Variant: Not specified
- Intended Use: Everyday use
- HDCP Version: HDCP 2.2
- Input/Output Resolution: 1080p/60fps, 4K/30fps, 4K/60fps
- Deep Color Mode: 4K/60fps-YUV444-8 bit, 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
- HDMI Maximum Bandwidth: 600MHz
- HDMI Maximum Baud Rate: 18Gbps
- Input and Output TMDS Signal: 0.5-1.5Vp-p (TTL)
- Input and Output DDC Signal: 5Vp-p (TTL)
- DAC Sampling Frequency: 32-192 KHz
- DAC Bit Rate: 16-24 bits
- RCA Analog Output (1kHz 0dB): 1V RMS
- 3.5mm Audio Port Maximum Output Level: 6.5Vp-p
- 3.5mm Audio Port Maximum Output Power: 32 ohms 30mW
- Signal-to-Noise Ratio 0dB (CC1R/ARM): ≥ 90dB
- Distortion: ≤ 0.1%
- Frequency Response: 20Hz-20kHz
- HDMI Input/Output Cable Distance: ≤ 3m AWG26 HDMI standard cable
- Maximum Operating Current: 400mA
- Power Adapter Specifications: AC 100V-240V 50/60Hz, DC 5V/1A
- Operating Temperature Range: -10 to 55 degrees Celsius
- Storage Temperature Range: -20 to 60 degrees Celsius
- Operating Humidity Range: 10-90% RH (no condensation)
- Storage Humidity Range: 5-95% RH (no condensation)
- Size: Approximately 10 x 9.5 x 2 cm
- Net Weight: Approximately 117 g
- Functions:
- 1 HDMI input port
- 1 HDMI output port
- 1 optical digital audio output port
- 1 stereo audio output port, connects to 600 ohm high impedance headphones
- 1 R/L audio output port
- Supports up to 4K/60fps input resolution
- Volume adjustment capability
- Supports 3D, HDR, and YUV4:4:4
- Supports HDCP 2.2
- Supports AC3, DTS, LPCM, and other digital audio formats
- Audio output supports 3 kinds of EDID selection mode (2CH/5.1CH/PASS)
- Features:

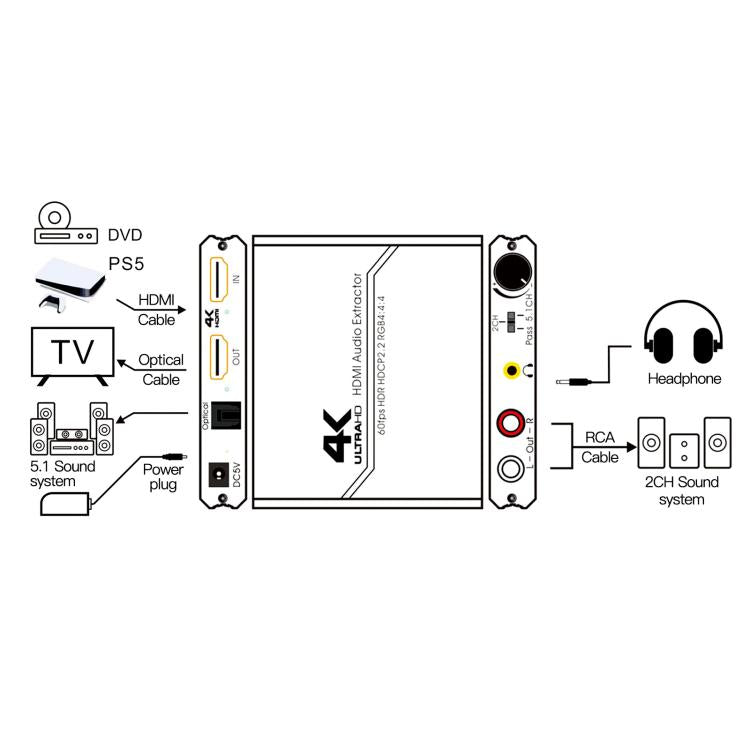

- Connects audio source devices (DVD players, Blu-ray players, network players, set-top boxes, game consoles, computers) to display devices (TVs, HD monitors, projectors)
- Synchronizes to separate an optical fiber signal and an R/L signal
- Connects stereo channels to the sound system for high-quality audio signals
- Volume knob for flexible adjustment of analog audio output intensity
- Lossless signal transmission with simple installation
- Packing List:
- HDMI audio extractor x 1
- DC5V/1A power adapter x 1
- USB power cable x 1
- User manual x 1
