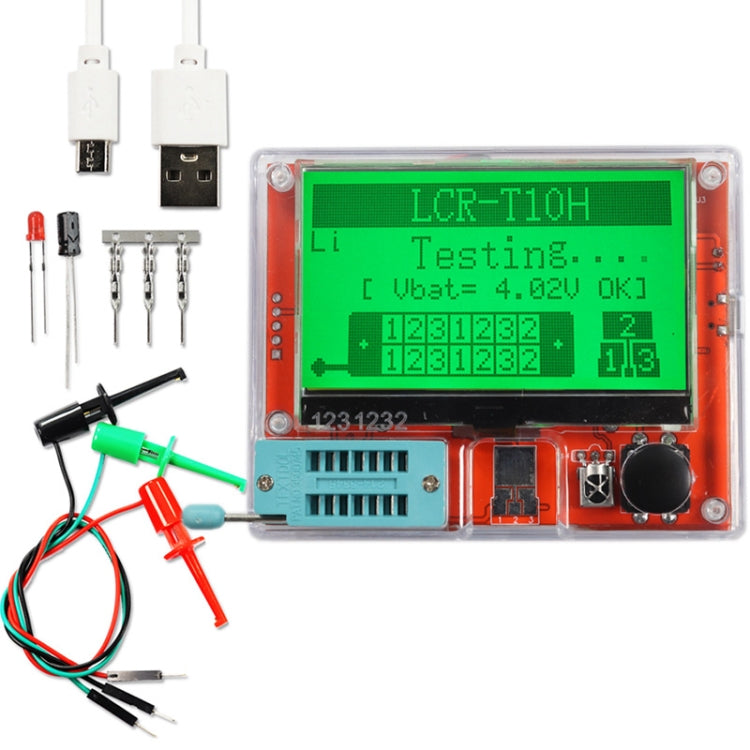

LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Built Lithium Battery
LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Built Lithium Battery
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
LCR-T10H Transistor Tester is designed to test diodes, transistors, capacitors, resistors, and inductors. It is suitable for use in electronics repair and component testing, allowing users to quickly identify component values and characteristics.

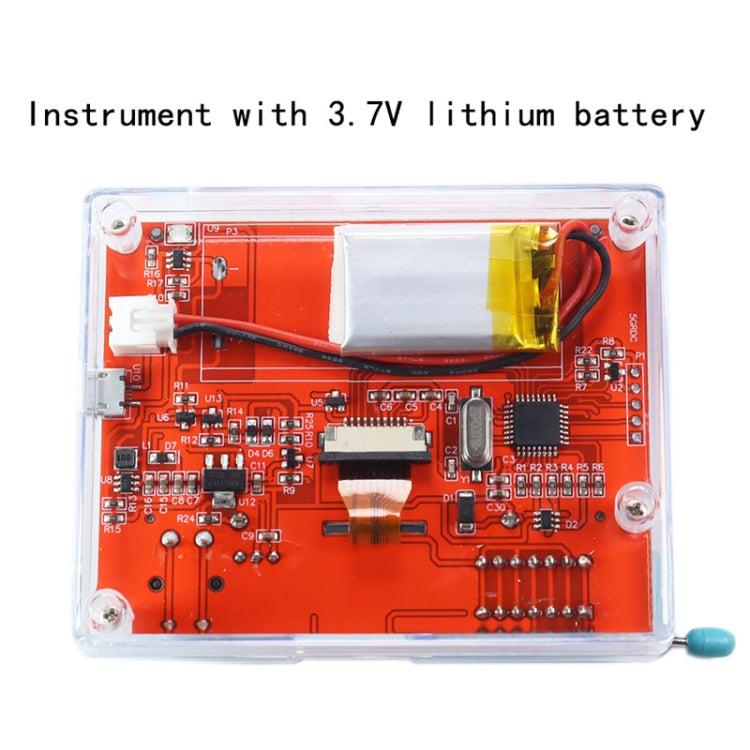

- Power Supply: Rechargeable lithium battery (3.7V 300mAH) or 2 AA batteries (optional)
- Working Current: 50mA
- Capacitance Range: 25pF - 100mF
- Resistance Range: 0.01Ω - 50MΩ
- Inductance Range: 0.01mH - 20H
- Battery Voltage Measurement: 0.1V - 4.5V

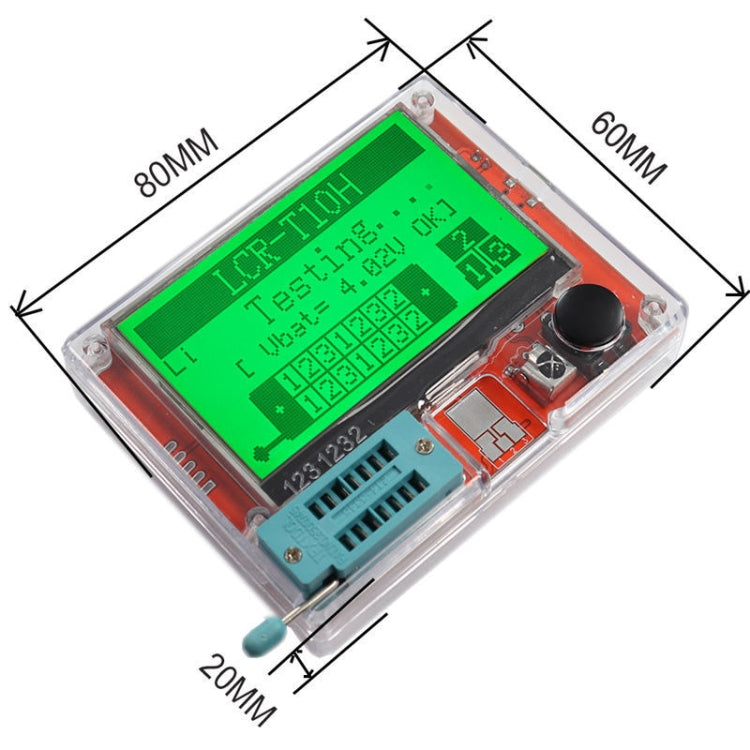

- Dimensions: 80mm x 60mm x 20mm
- Automatic pin identification with graphical display
- Infrared waveform display and infrared receiving indication
- Tests encoding value of infrared remote control (supports NEC format only)
- Note: Capacitors must be discharged before testing to avoid damage
- Warning: Do not measure live circuit boards to prevent damage
