LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Dry Battery Powered
LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Dry Battery Powered
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description

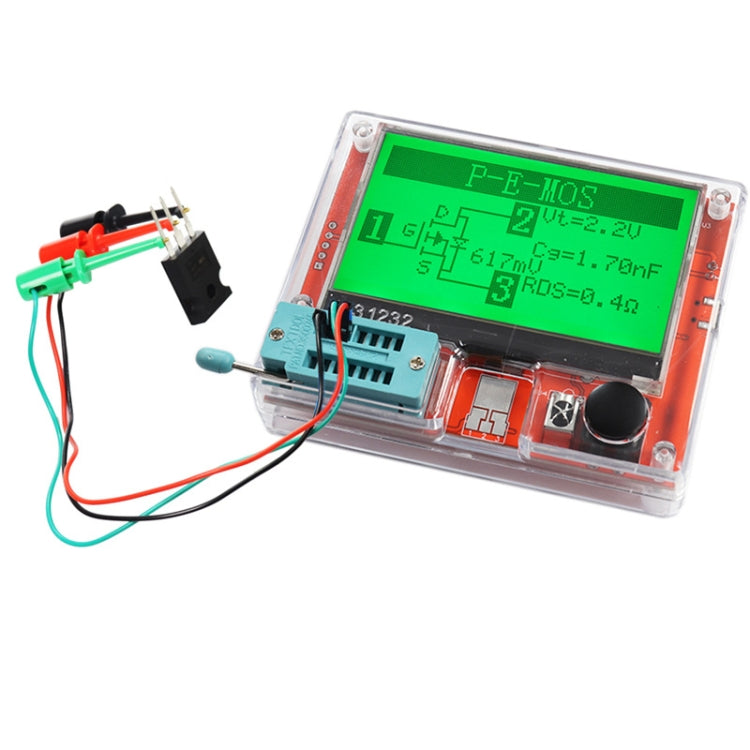

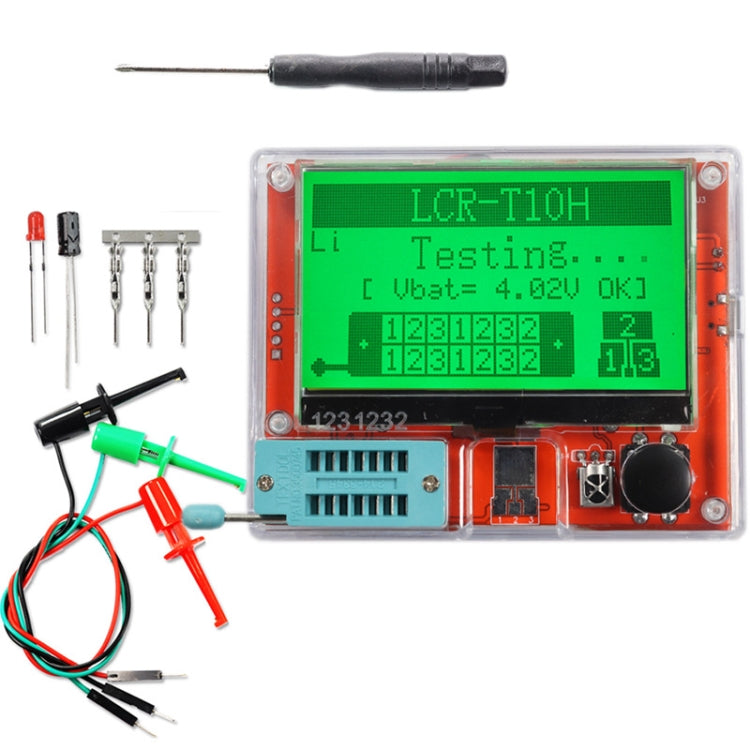

The LCR-T10H Transistor Tester is designed to test diodes, transistors, capacitors, resistors, and inductors. It is suitable for use in electronics repair and component testing, providing automatic identification of pin positions and graphical display of results.

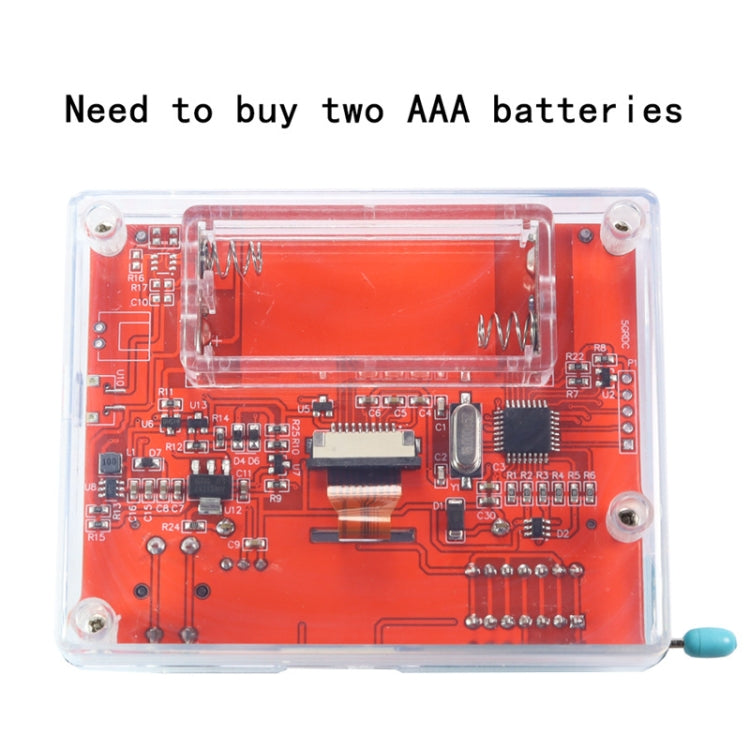

- Power Supply: 3.7V lithium battery (300mAH) or 2 AA batteries (optional)
- Working Current: 50mA
- Capacitance Range: 25pF - 100mF
- Resistance Range: 0.01Ω - 50MΩ
- Inductance Range: 0.01mH - 20H
- Battery Voltage Range: 0.1V - 4.5V

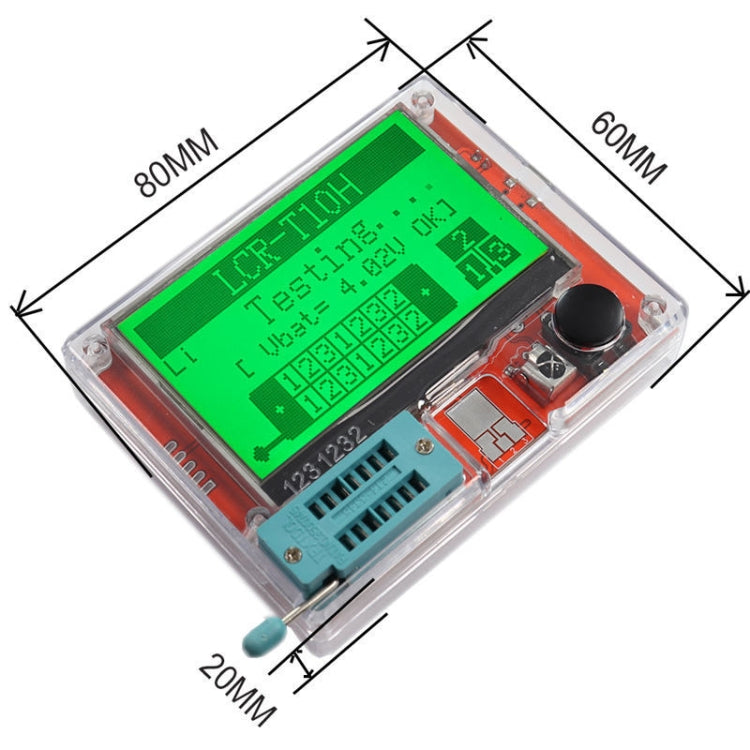

- Dimensions: 80mm x 60mm x 20mm

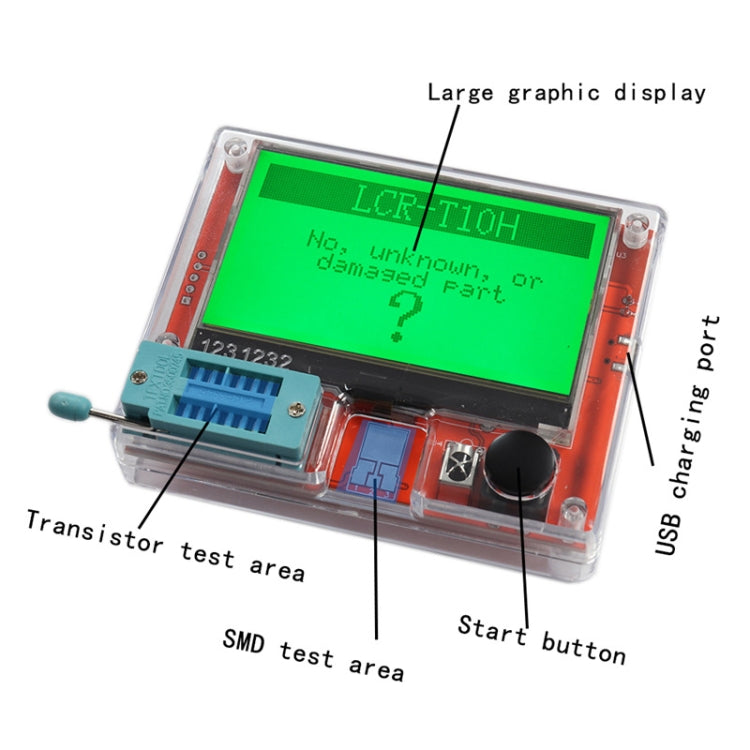

- Automatic pin position identification with graphical display

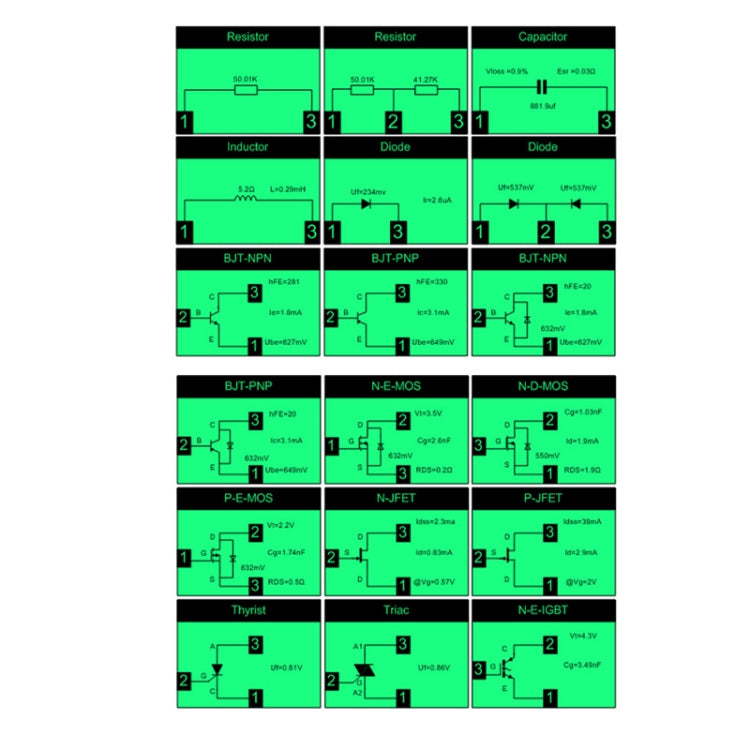

- Tests transistors, MOSFETs, thyristors, Darlington transistors, and IGBTs (note: high-power thyristors and IGBTs may not be tested accurately)

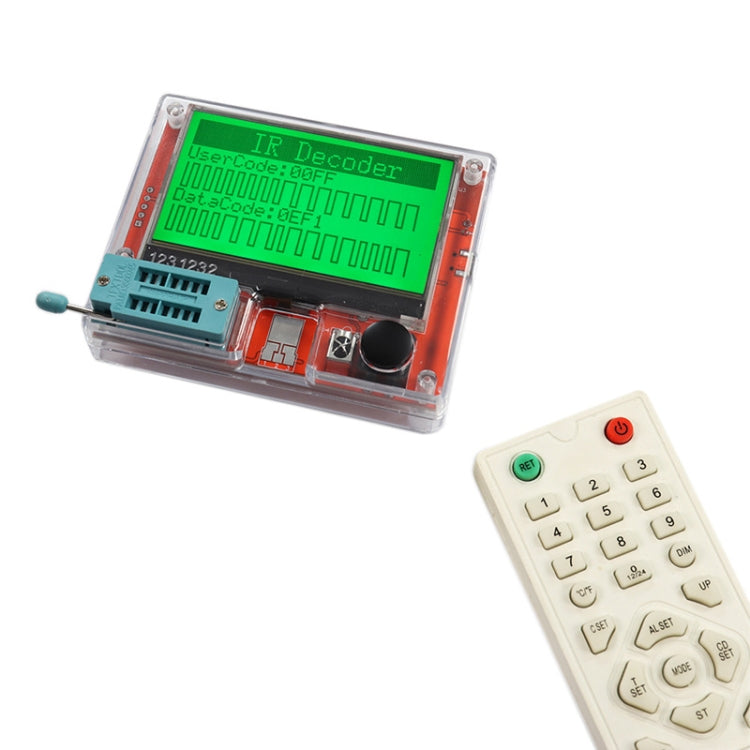

- Tests encoding value of infrared remote controls (supports NEC format only)
- Warning: Capacitors must be discharged before testing to prevent damage
- Warning: Do not use on live circuit boards to avoid damage
Questions about features, compatibility, or warranty? Chat with our local support team!
