Description

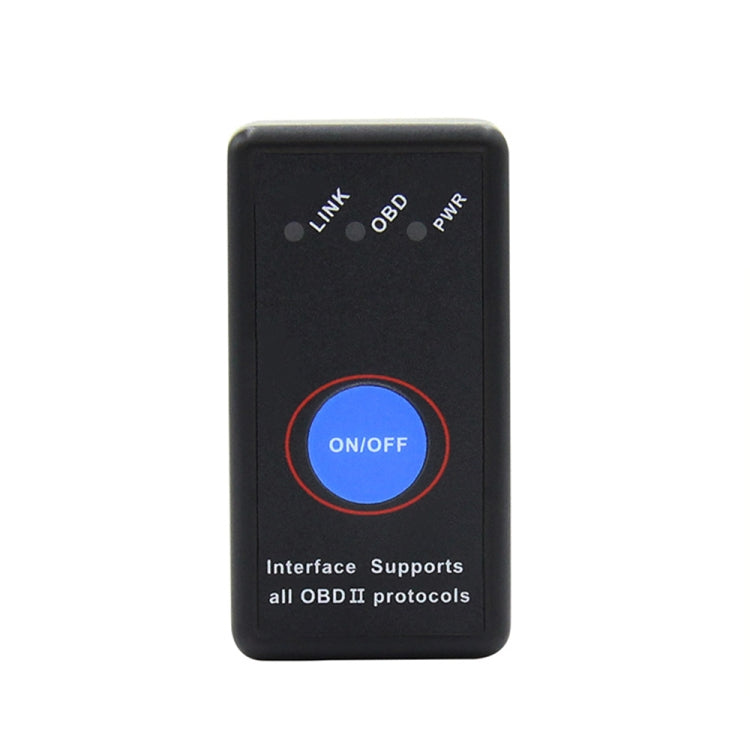

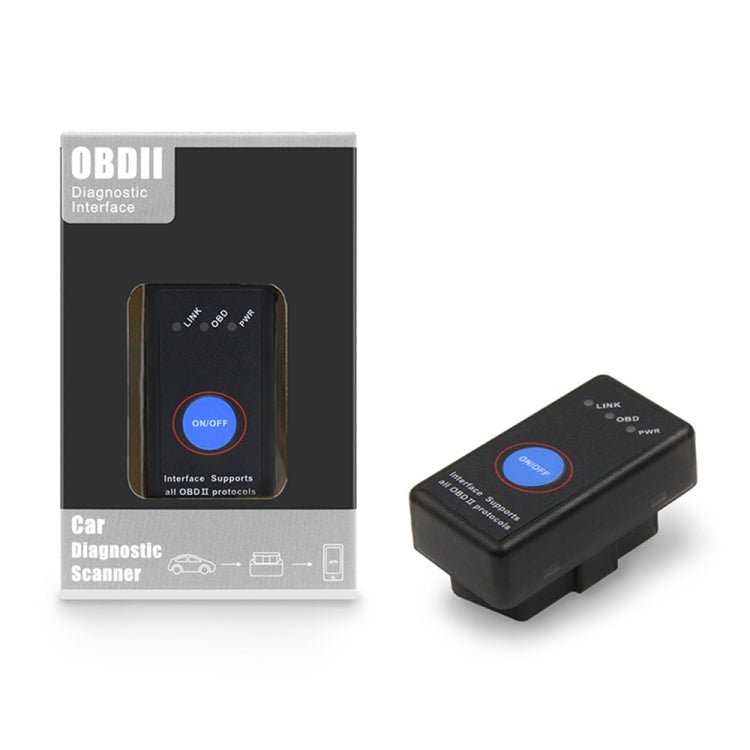

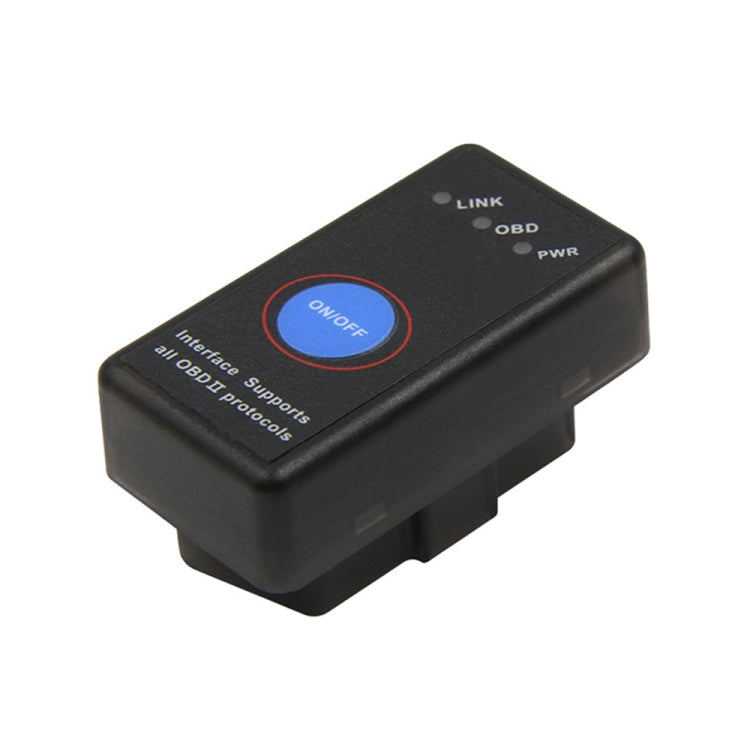

The Mini Bluetooth 4.0 ELM327 OBD Car Fault Diagnostic Scanner is a diagnostic tool for OBD II vehicles. It reads and clears diagnostic trouble codes, displays sensor data, and provides real-time vehicle diagnostics.
- Product Type: Code Readers & Scan Tools
- Compatibility: OBD II vehicles
- Material: Plastic
- Key Feature: Bluetooth 4.0

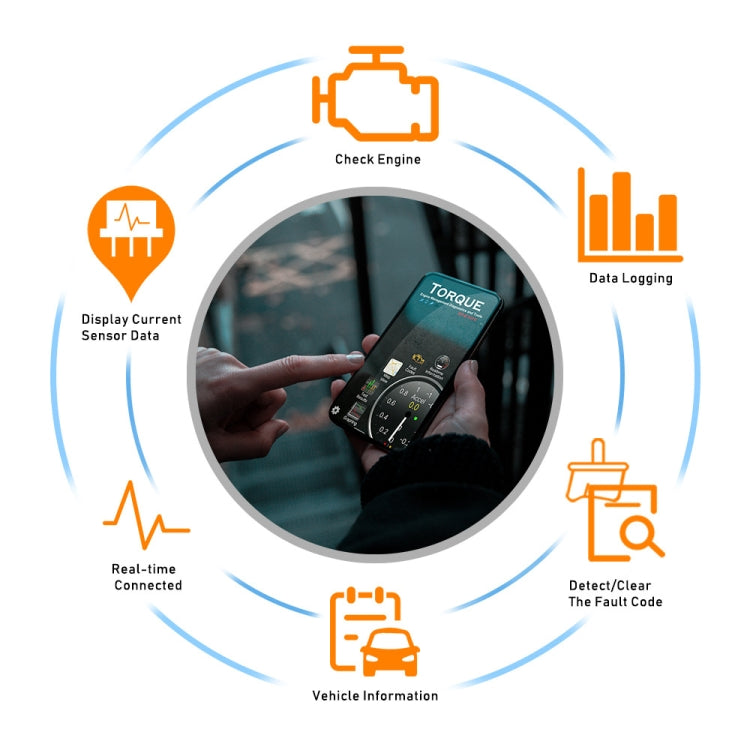

- Functionality:
- Reads diagnostic trouble codes (over 3000 generic code definitions)
- Clears trouble codes and turns off the Check Engine light (MIL)
- Displays current sensor data including engine RPM, coolant temperature, and vehicle speed
- Monitors fuel system status and fuel trims
- Provides data on intake manifold pressure and timing advance
- Reports oxygen sensor voltages and fuel pressure
- Supported Protocols:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)

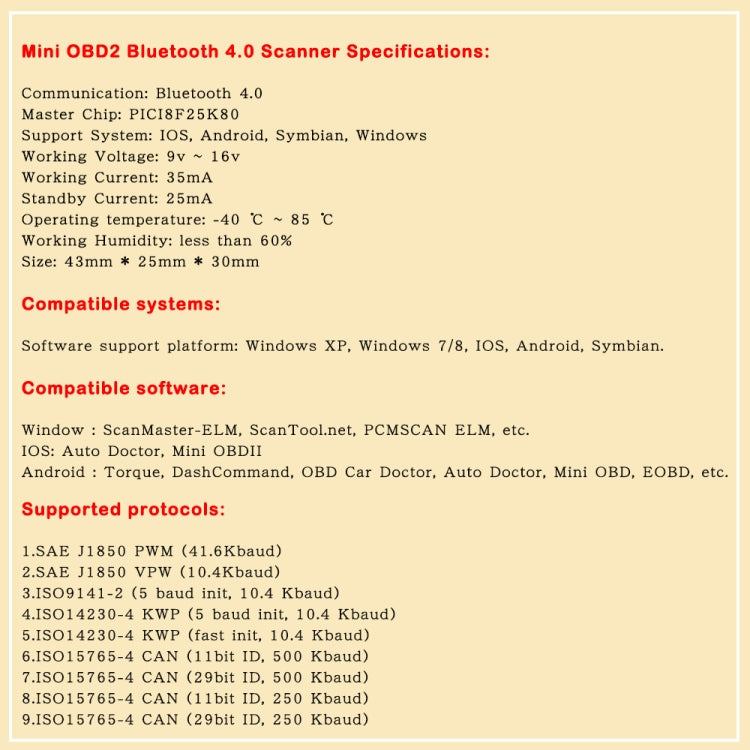

- Specifications:
- Communication: Bluetooth 4.0

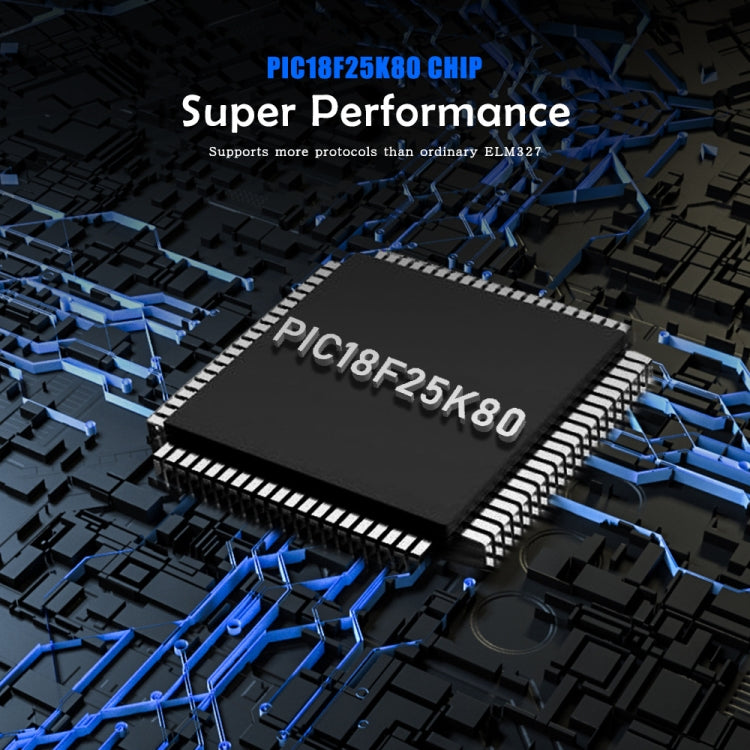

- Master Chip: PICI8F25K80
- Support System: iOS, Android, Symbian, Windows
- Working Voltage: 9V ~ 16V
- Working Current: 35mA
- Standby Current: 25mA
- Operating Temperature: -40 to 85 degrees Celsius
- Working Humidity: less than 60%
- Compatible Systems: Windows XP, Windows 7/8, iOS, Android, Symbian

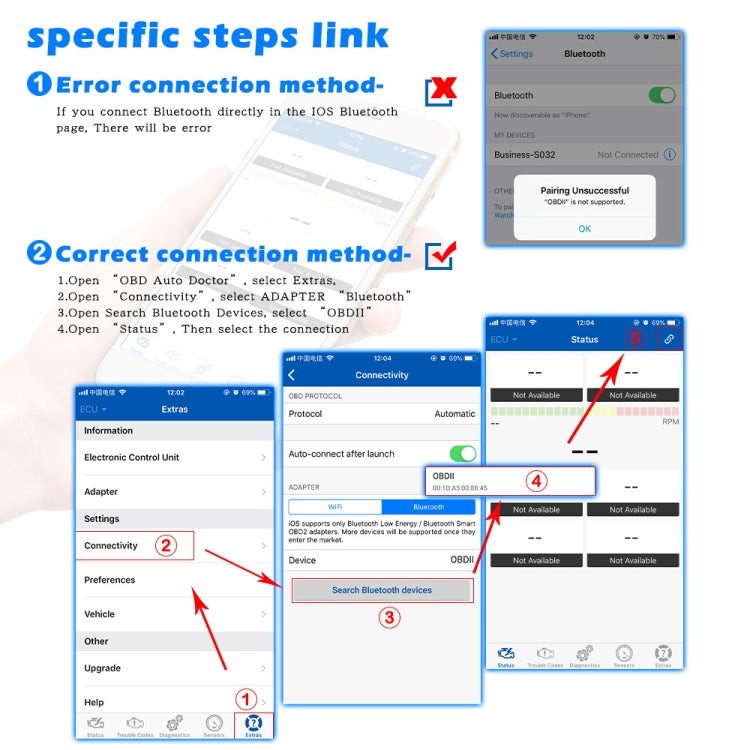

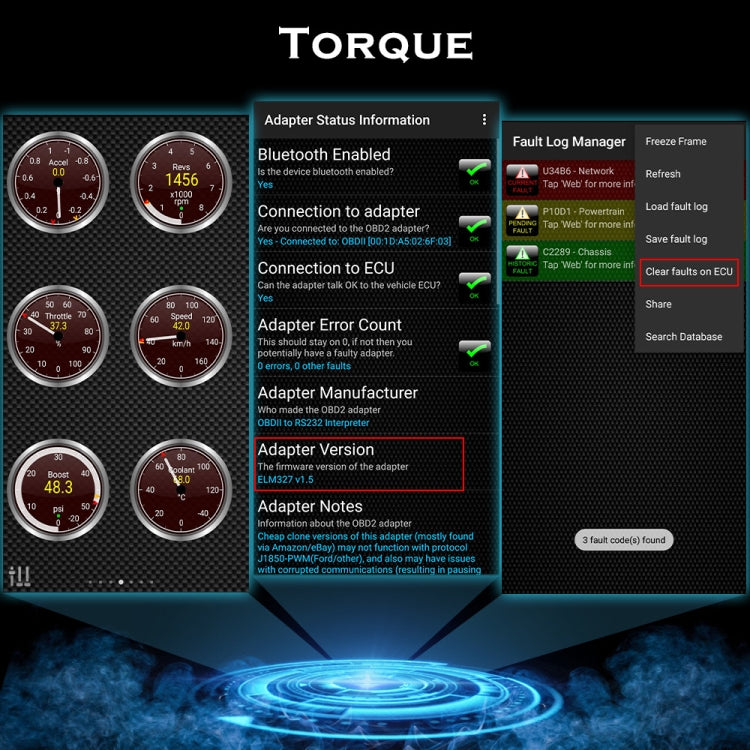

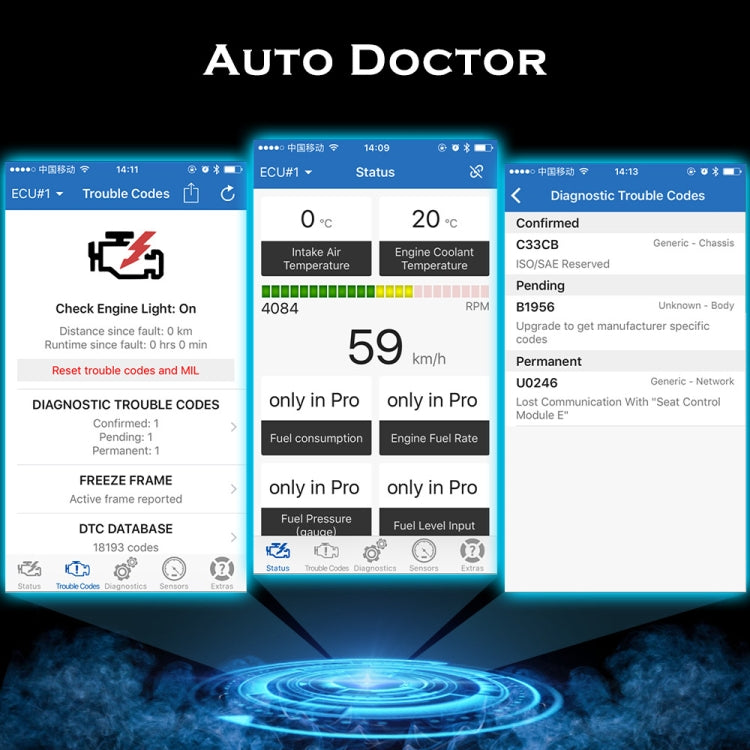

- Compatible Software: Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM; iOS: Auto Doctor, Mini OBDII; Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD; Symbian: OBDScope
- Size: 43mm x 25mm x 30mm
