Description

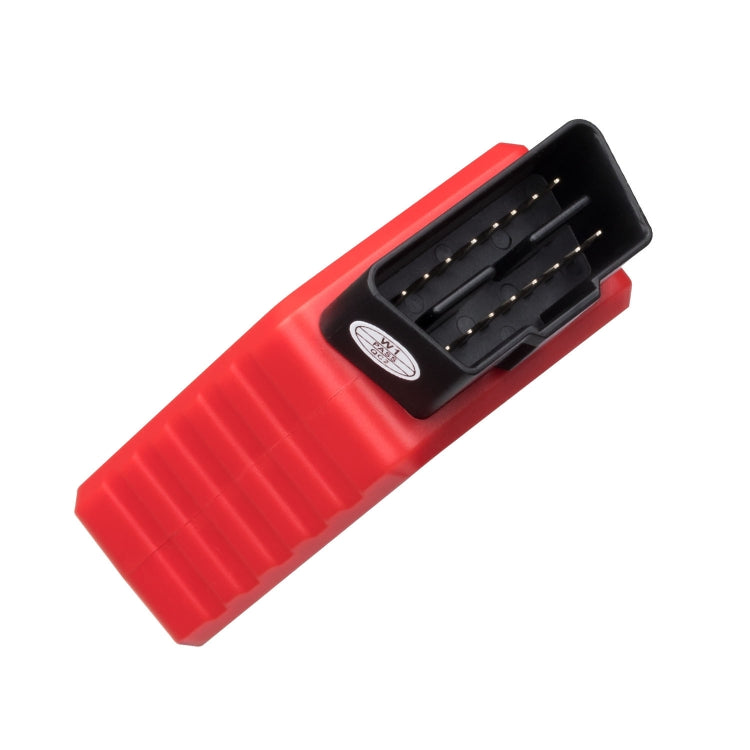

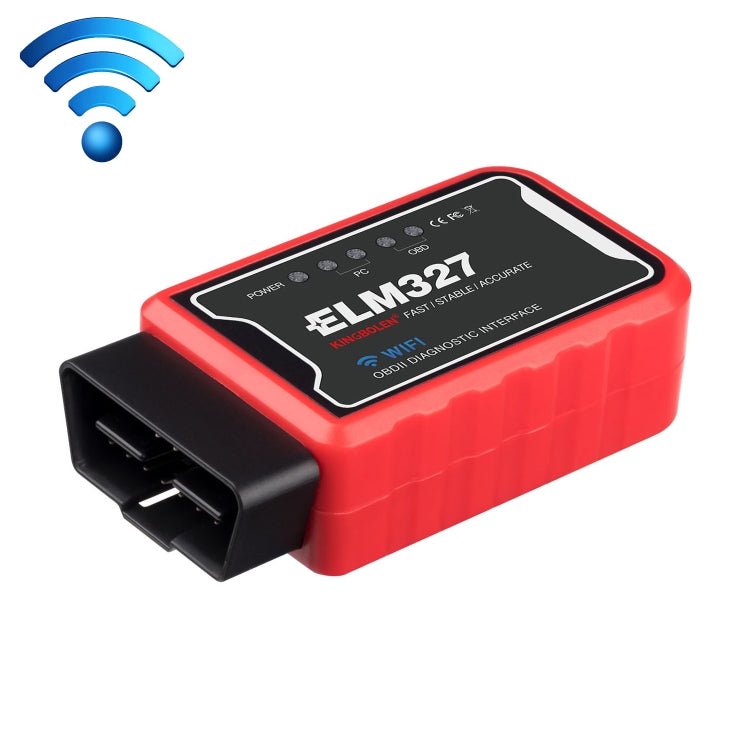

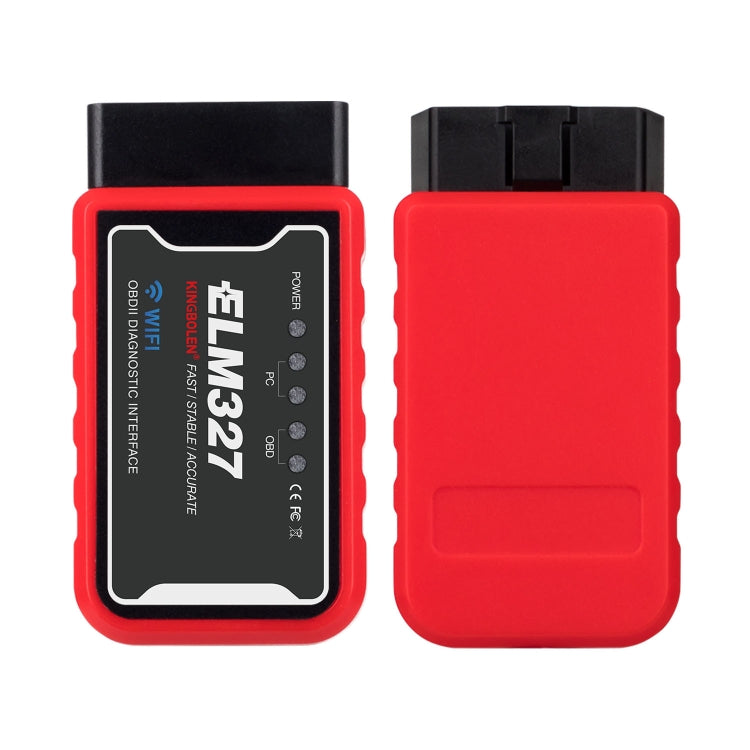

OBD II ELM327 WiFi Car Fault Diagnostic Tool is a code reader and scan tool designed for automotive diagnostics. It reads and clears diagnostic trouble codes, providing real-time sensor data to assist in vehicle troubleshooting.
- Product Type: Code Readers & Scan Tools
- Compatibility: Various vehicles
- Material: Durable construction
- Key Feature: Reads and clears diagnostic trouble codes
- Functionality:
- Reads diagnostic trouble codes (generic and manufacturer-specific)
- Displays over 3000 generic code definitions
- Clears trouble codes and turns off the Check Engine light (MIL)
- Displays current sensor data including Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages and associated short term fuel trims
- Fuel System status
- Fuel Pressure
- SSID: WiFi_OBDII
- IP: 192.168.0.10
- Port: 35000
- Communication: WiFi

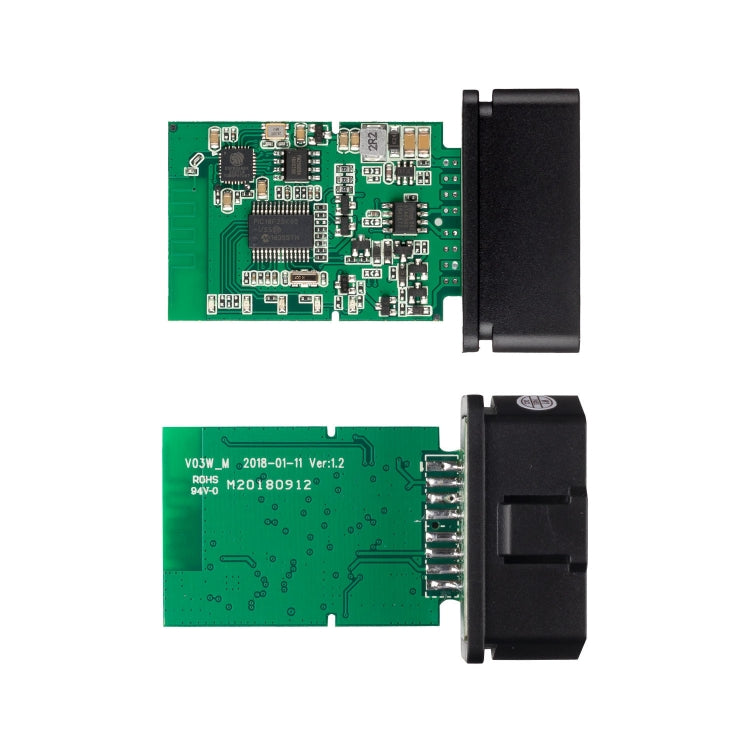

- Chip: PIC25K80
- Support System: iOS, Android, Symbian, Windows
- Working Voltage: 9V - 16V
- Working Current: 65mA
- Standby Current: 45mA
- Operating Temperature: -40°C to 85°C
- Working Humidity: less than 60%
- Size: 45mm x 25mm x 75mm
- Compatible Software:
- Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM
- iOS: Auto Doctor, Mini OBDII
- Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD
- Symbian: OBDScope

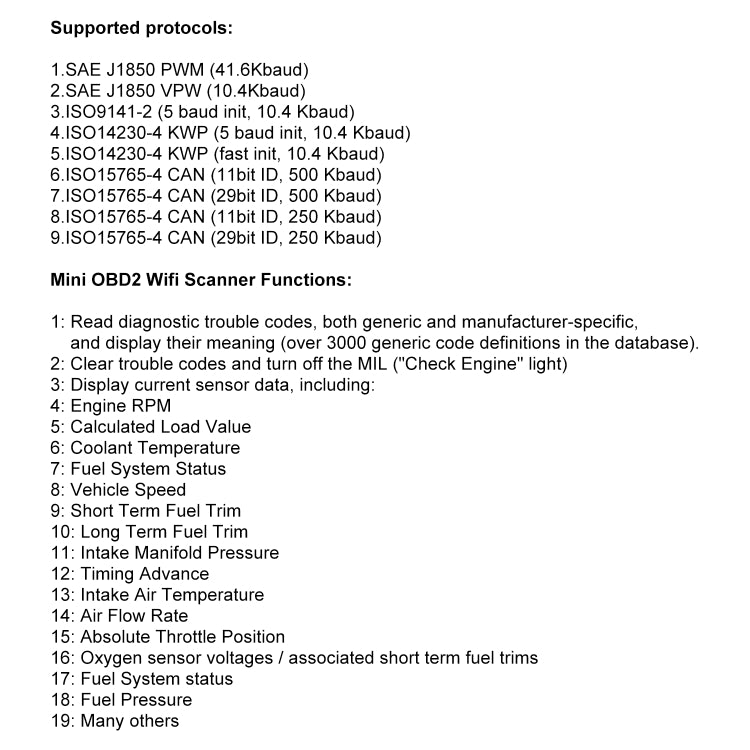

- Supported Protocols:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
