OBDResource Professional Automobile Circuit Analysis Injector Tester

• Product type: Electronic Test
• Brand: OBDResource
• Compatibility: automotive circuits
• Material: environmentally friendly materials
• Key feature: supports fuel injector testing
• Color/Variant: multi-color display
• Intended use: automotive maintenance
• Category: Diagnostic Scan Tools

1. Power supply voltage: 8VDC (MIN)
2. Power supply voltage: 32VDC (MAX)
3. Voltage test range: 0-80VDC
4. Voltage accuracy: 0.1V
5. Probe tip impedance to ground: 4.7M
6. Resistance test range: 0.1 milliohms (please pay attention to the error value when it is greater than 200K)
7. Frequency test range: 5Hz - 20K Hz
8. Oscilloscope sampling rate: 1M Hz (MAX)
9. Oscilloscope monitoring frequency: 20K Hz (MAX)
10. Circuit breaker: 8A thermal - self-recovery
11. Short circuit automatic protection response time: 0.01ms
12. Screen size: 2.4 inches
13. Extension line size: 10 meters
14. Widely used in: automotive circuit maintenance, automotive component activation, component testing, pulse signal transmission, fuel injector repair, automotive battery testing, resistance voltage measurement, diode measurement, and acquisition and display of automotive waveforms and other maintenance scenarios
15. Fuel injector test: - Supports fuel injector signal simulation output, fuel injector signal- Acquisition, fuel injector cleaning parameter analysis and drawing waveform signals
16. Supports activation of high-power components with a constant current of up to 100Amps, such as automotive bulbs, motors, instruments, etc.

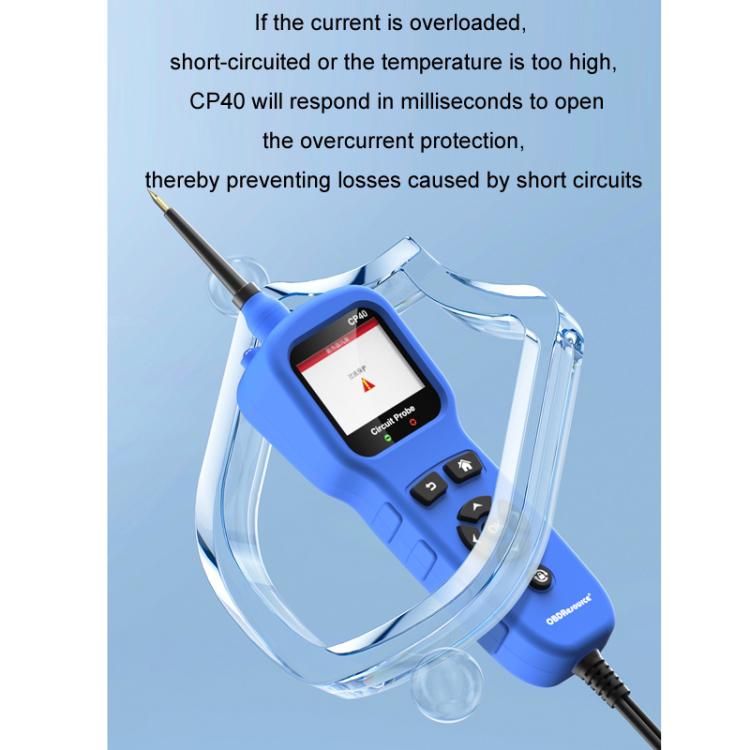

17. If the current is overloaded, short-circuited or the temperature is too high, CP40 will respond in milliseconds to turn on the overcurrent protection to prevent losses caused by short circuits
18. 10M extension cable, effectively increases the test distance, and can test the taillight circuit status normally even in the face of large trucks
19. Type-C interface, used for software upgrades, the process is simple, and it is convenient for operating system upgrades to connect software
20. The anti-slip design on both sides is conducive to one-handed operation and is not easy to slip during use
21. High-definition colorful large-screen display, the effect is clearer and more stable, and the data is more intuitive
22. Physical silicone buttons, environmentally friendly materials, comfortable feel, high sensitivity, fast response speed
23. Copper-plated alligator clips, pure copper-plated material, large opening range, strong bite force, more accurate measurement
24. Size: 217x75x45mm
