Description

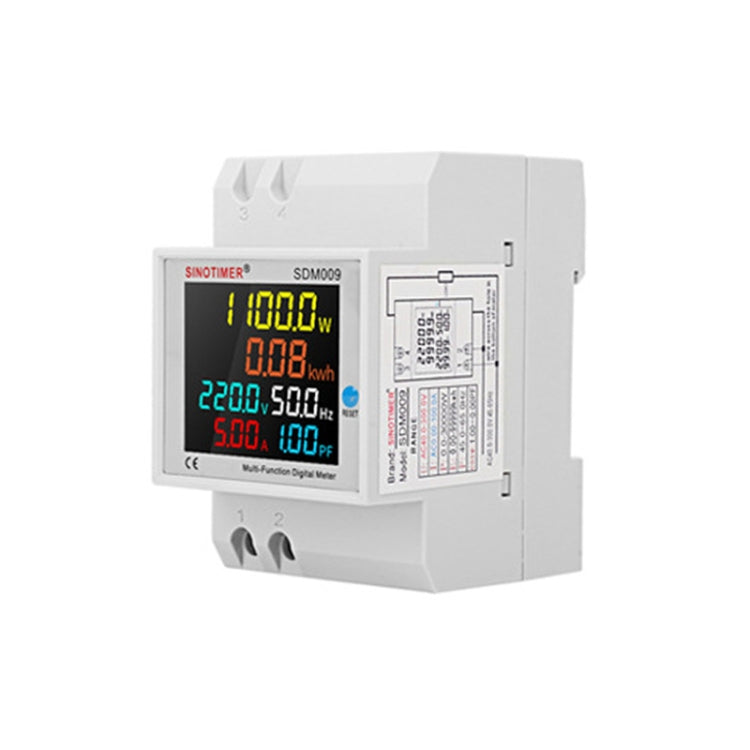

The SINOTIMER SDM009 Din Rail Multifunctional Meter measures voltage, current, frequency, power factor, and electricity consumption. It is suitable for everyday use in monitoring electrical parameters in residential or commercial settings.
- Product Type: Current & Voltage Tester
- Model: SDM009
- Compatibility: AC40-300V
- Measurement Accuracy: 1 +/- 2 percent
- Measuring Range:
- Voltage: AC40-300V (for 110V 220V), AC250-450V (for 380V 450V)
- Current: 0.00-100.0A
- Active Power: 0-60000W / 0-45000W
- Frequency: 45-65Hz
- Electricity (Power): 0-9999Kwh
- Power Factor: 0.00-4.00PF
- Measuring Speed: 2 times/s
- Installation Mode: Rail type
- Overall Dimensions: 54 x 80 x 64 mm
- Protruding Size: 45 x 16 mm
- Wiring Method:
- Connect measured voltage to terminals 1 and 2 on the lower left side of the meter.

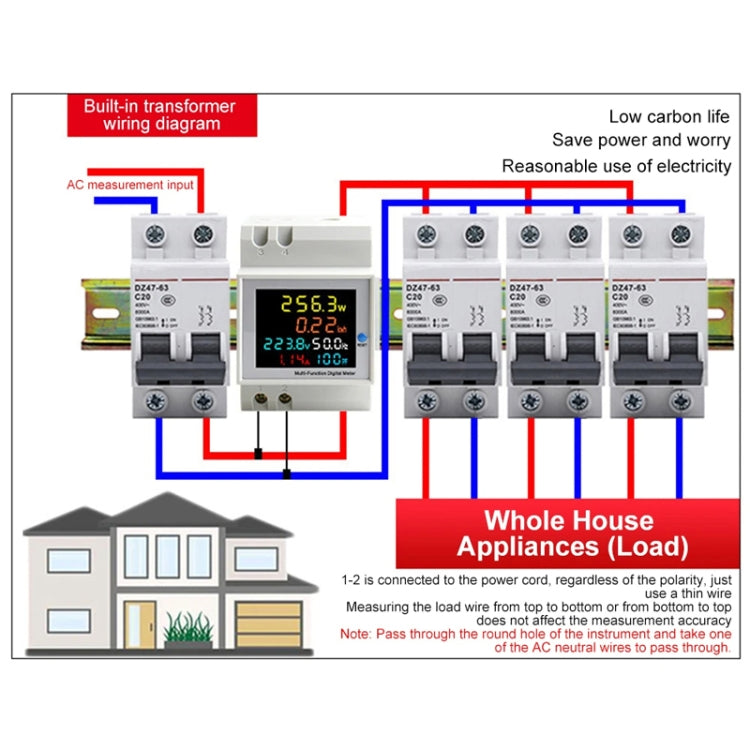

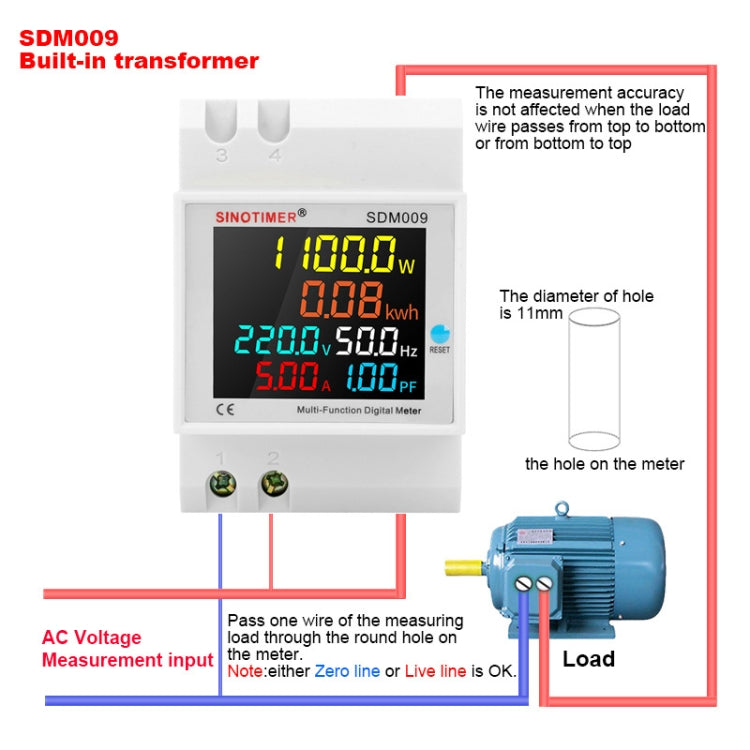

- Built-in transformer wiring according to provided diagram.
- Connect external transformer to terminals 3 and 4 on the upper left side.
- Power measurement reset by pressing the RESET button for 5 seconds.
- Automatic data saving function during power outages.
- Built-in transformer hole diameter: 11 mm, compatible with 12 square mm copper wire.
- External transformer hole diameter: 15 mm, compatible with 21-25 square mm copper wire.
