ST-LINK/V2 (mini), STM Programmers & Debuggers

• Product type: MCU Tools
• Brand: Waveshare
• Compatibility: STM8 and STM32
• Material: Not specified
• Key feature: Onboard self-recovery fuse
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

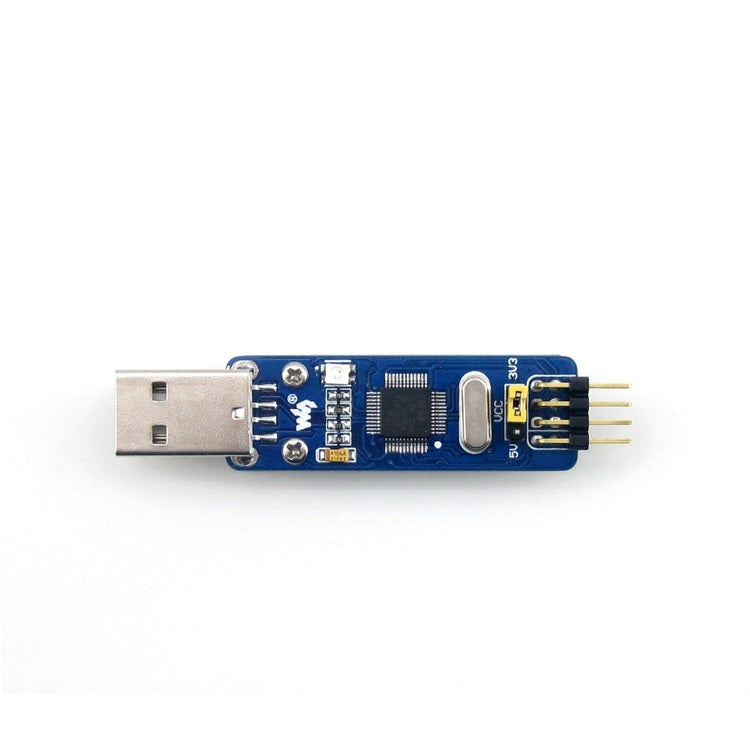

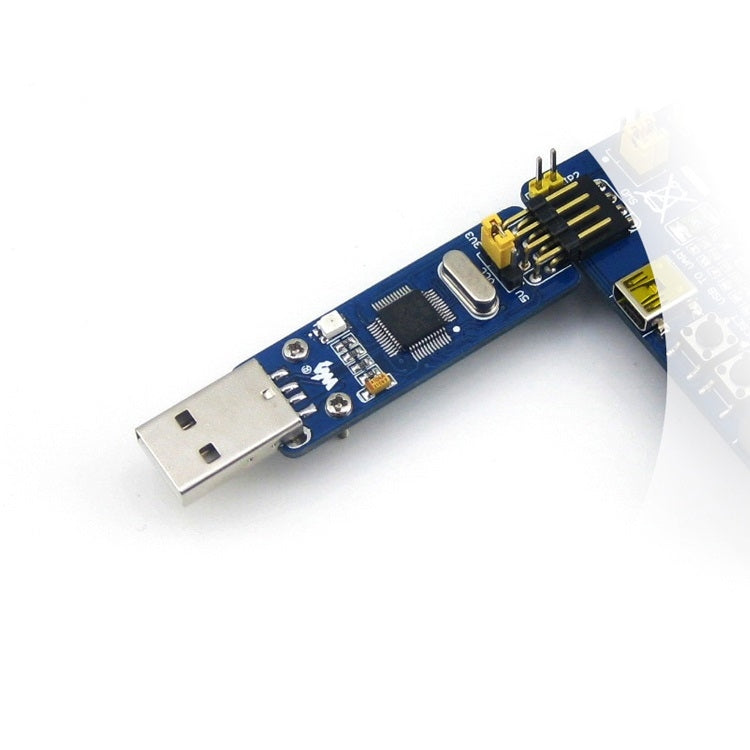

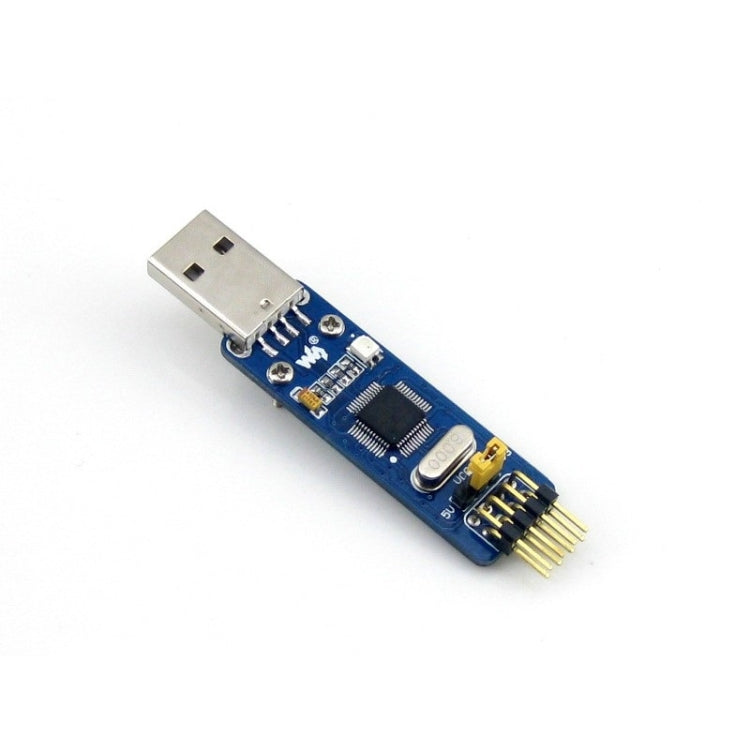

DescriptionMini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.Features1. Onboard 500mA self-recovery fuse to avoid harming by short circuit2. Dual voltage output (3.3V/5V), easy for debugging/programming3. Standard USB interface for direct connection to PC4. Debugging/Programing performance- Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.- Programming : supports FLASH ROM, EEPROM, AFR, etc.- USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming5. Upgradable firmware- The firmware is upgradable to support more devices in the future- Automatically upgraded6. Supported software- ST-LINK Utility v2.0 (or higher ver.)- STVD Version 4.2.1 (or higher ver.)- STVP Version 3.2.3 (or higher ver.)- IAR EWARM Revision v6.20 (or higher ver.)- IAR EWSTM8 Revision v1.30 (or higher ver.)- KEIL RVMDK Revision v4.21 (or higher ver.)- ATOLLIC- TASKING7. Supported devices- All the STM8 devices with SWIM interface- All the STM32 devices with SWD interfacePackage Contents1. ST-LINK/V2 (mini) × 12. 4-pin custom connector cable × 13. USB type A plug to receptacle cable × 1
