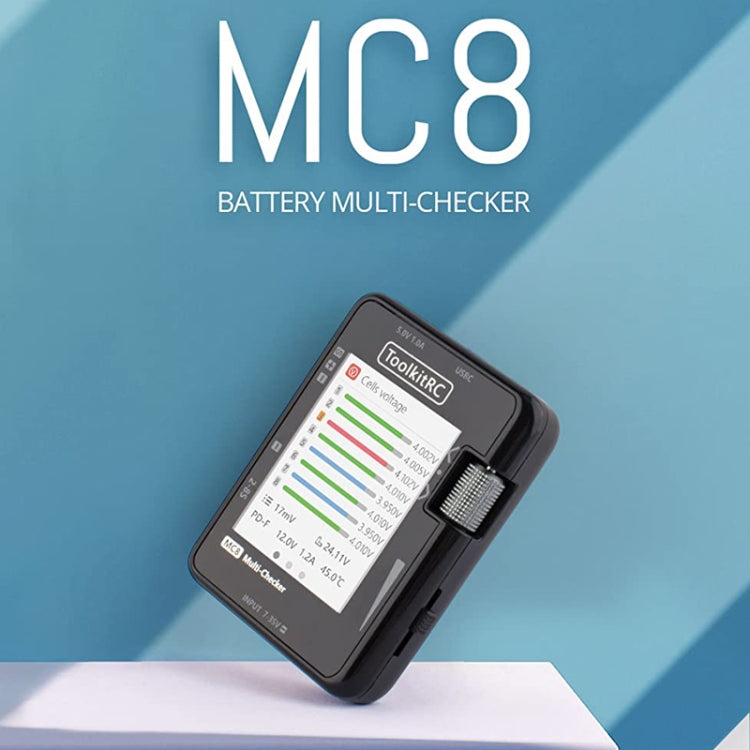

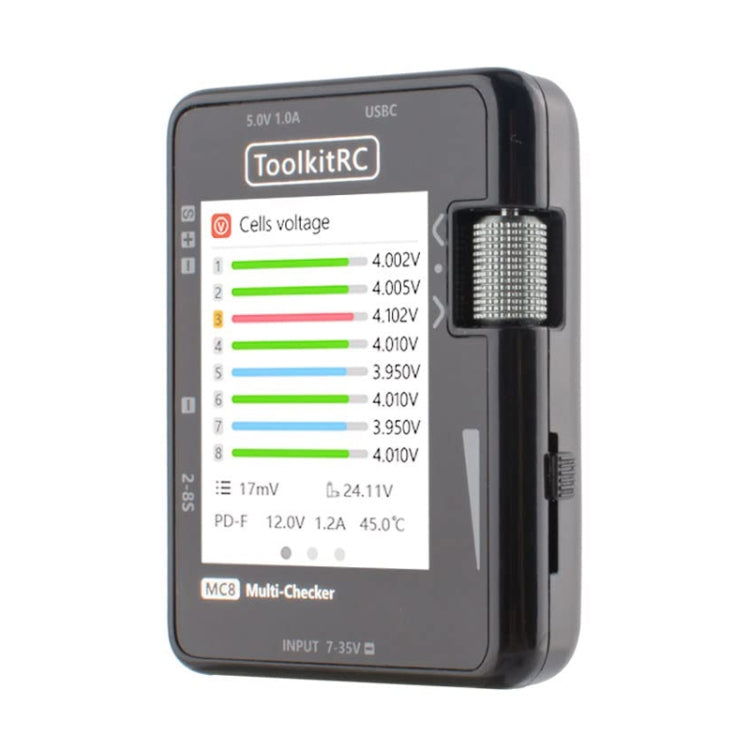

ToolkitRC MC8 Multifunctional Electrical Display Power Detection Signal PD Charger(Black)

Name: ToolkitRC MC8 Multifunctional Electrical Display Power Detection Signal PD Charger(Black)
Brand: ToolkitRC
SKU: TBD0604939201A
Price: 979.00 ZAR
Availability: InStock

R 979.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

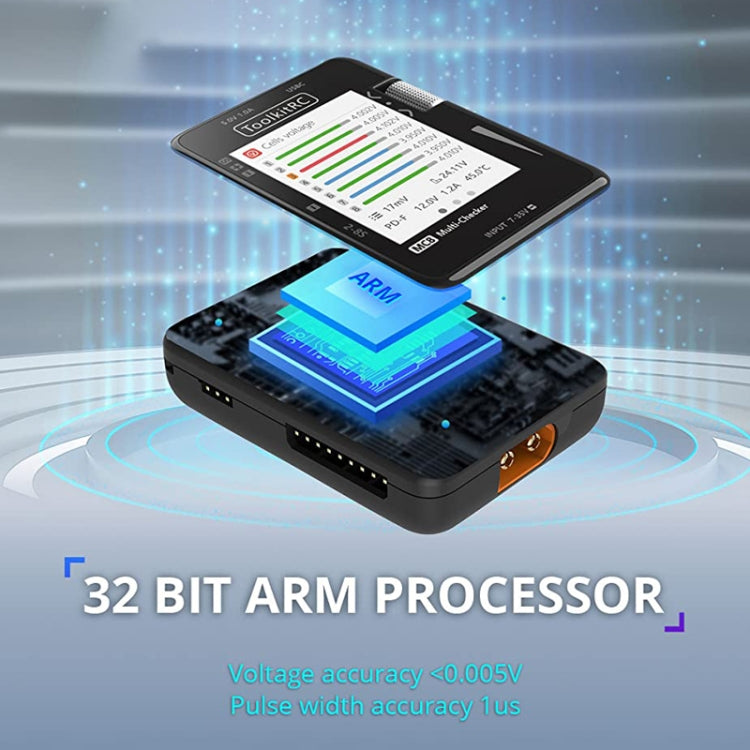

1. 32-bit ARM processor, voltage acquisition accuracy less than 0.005V, signal acquisition output accuracy: 1us

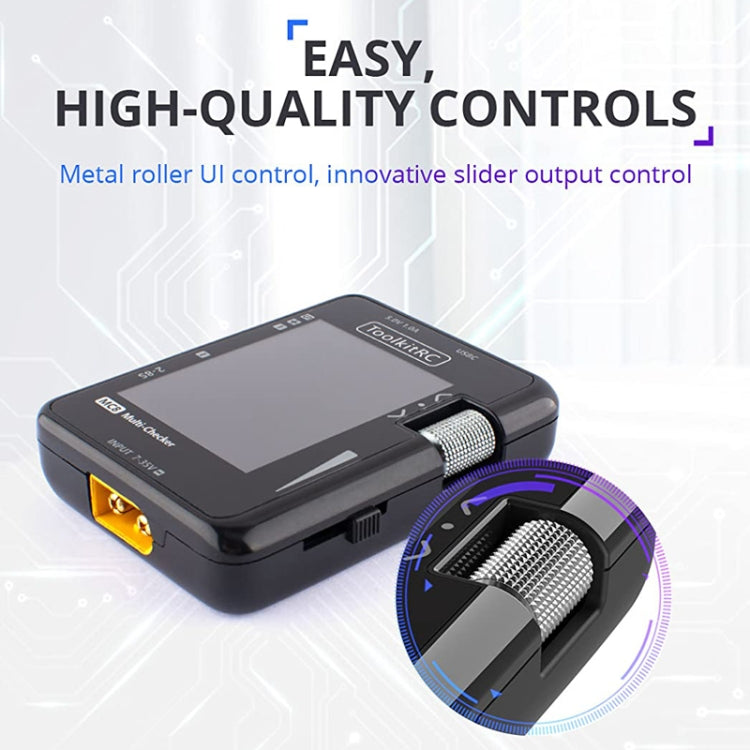

2. Classic scroll wheel, high precision feel, manual channel output pusher, output signal volume with hand control

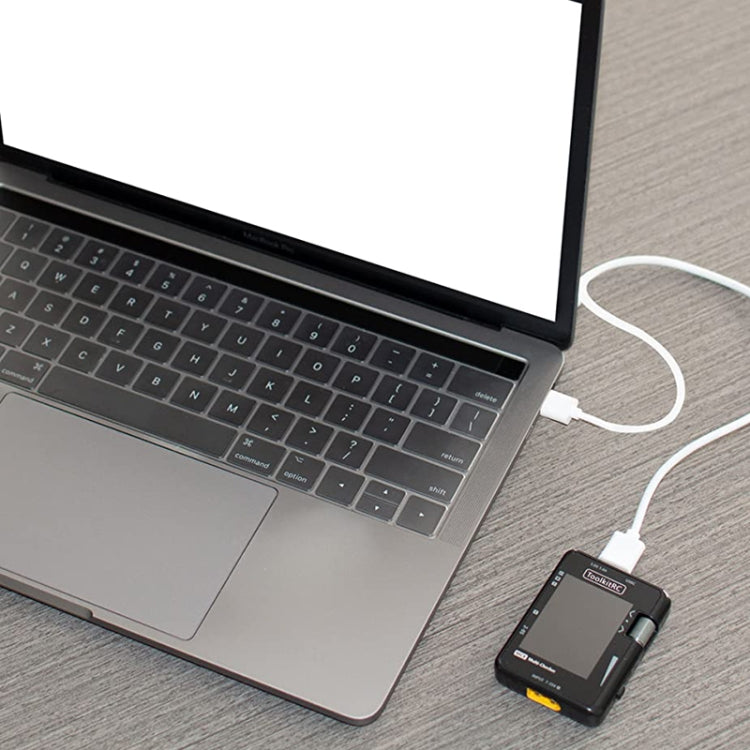

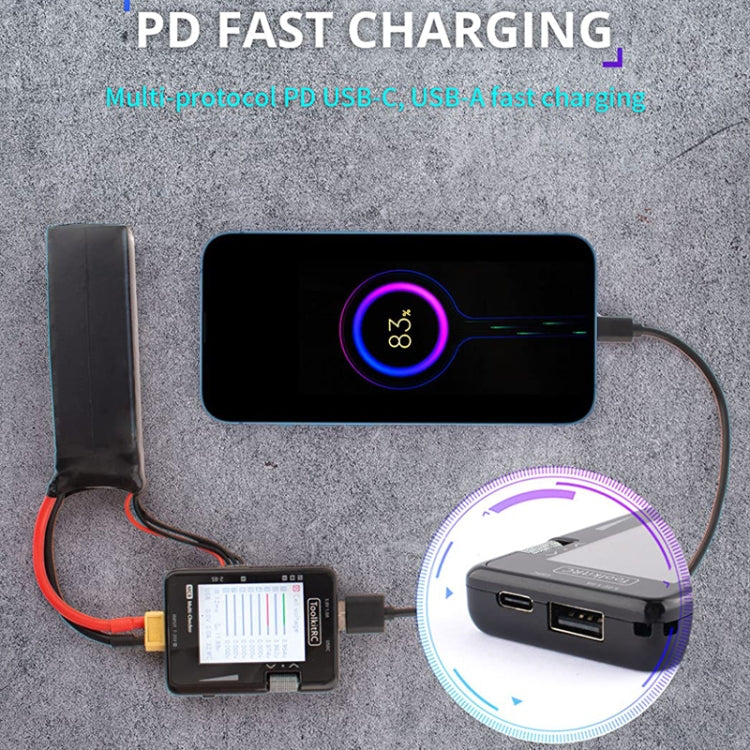

3. USB-C+USB-A dual output, can be used for mobile device charging

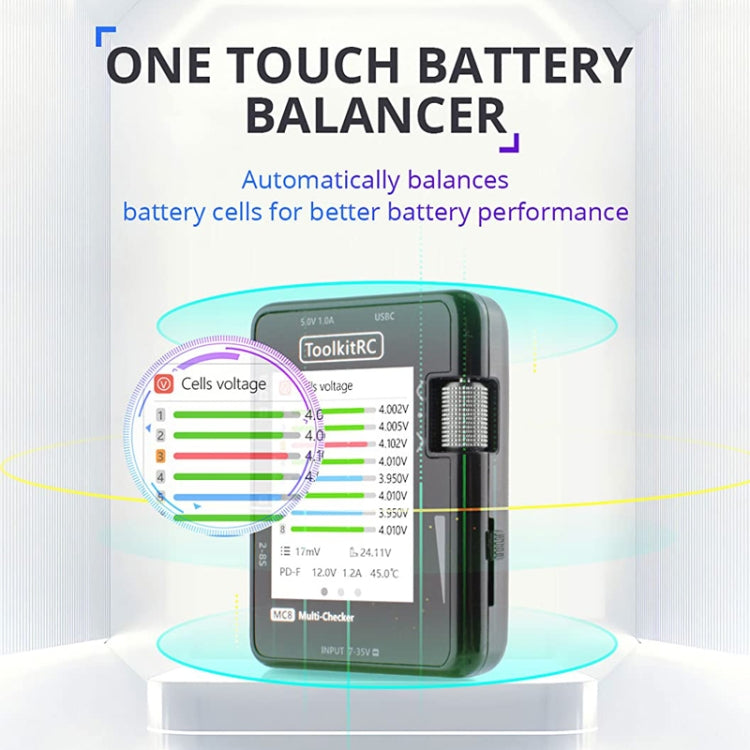

4. Equipped with cutting-edge auto-balancing algorithm, one-key start, accurate balancing of each battery voltage

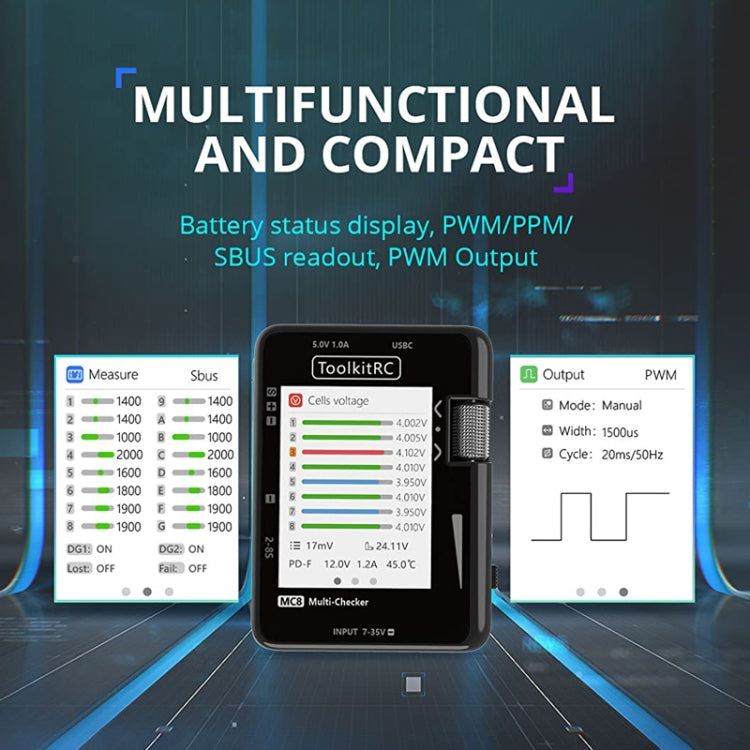

5. Highly integrated multi-function: battery status reading, multiple signal testing, signal output
6. Large color screen vision, multiple battery status at a glance

Parameters:
1. Main port input: XT60 7.0V-35.0V
2. Balanced port input: 0.5V-5.0V Lixx 2-8S
3. Signal port input: less than 6.0V
4. Balance current: MAX 60mA 2-8S
5. Balance accuracy: less than 0.005V 4.2V
6. USB-A output: 5.0V 1.0A firmware upgrade
7. USB-C output: 5.0V-12.0V MAX 20W
8. USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
9. PWM measurement: 500-2500us 20-400Hz
10. PPM measurement: 880-2200us x 8CH 20-50Hz
11. SBUS measurement: 880-2200us x 16CH 20-100Hz
12. PWM output: 1000-2000us 20-1000Hz
13. PPM output: 880-2200us x 8CH 50Hz
14. SBUS output: 880-2200us x 16CH 74Hz
15. Size: 68 x 50 x 15mm
16. Weight: 50g
17. LCD: IPS 2.0 inch, 240 x 240 resolution
