ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)

Name: ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)
Brand: ToolkitRC
SKU: TBD0604940101A
Price: 1479.00 ZAR
Availability: InStock

R 1,479.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. 4-channel high-speed independent acquisition, data is not easy to lose

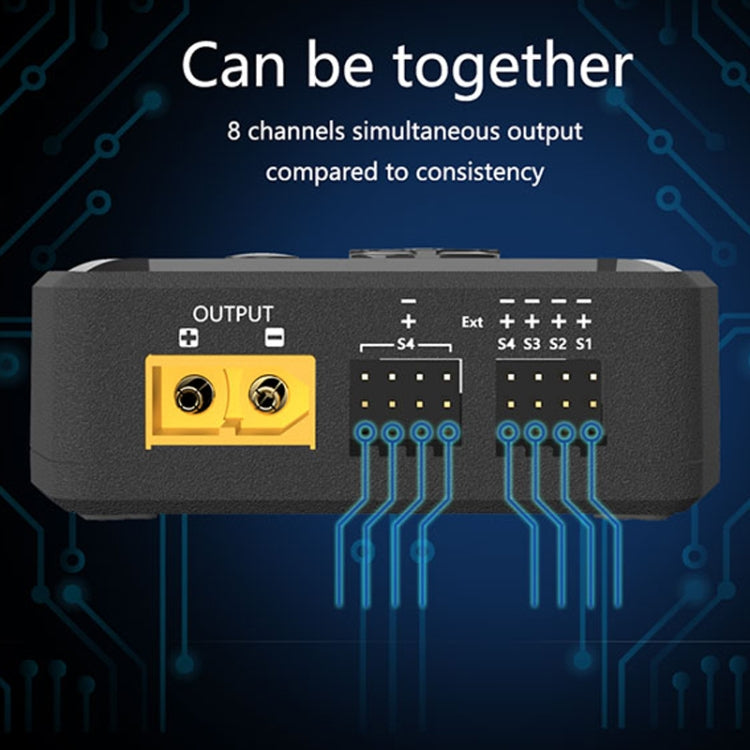

2. 8-channel simultaneous output, higher efficiency

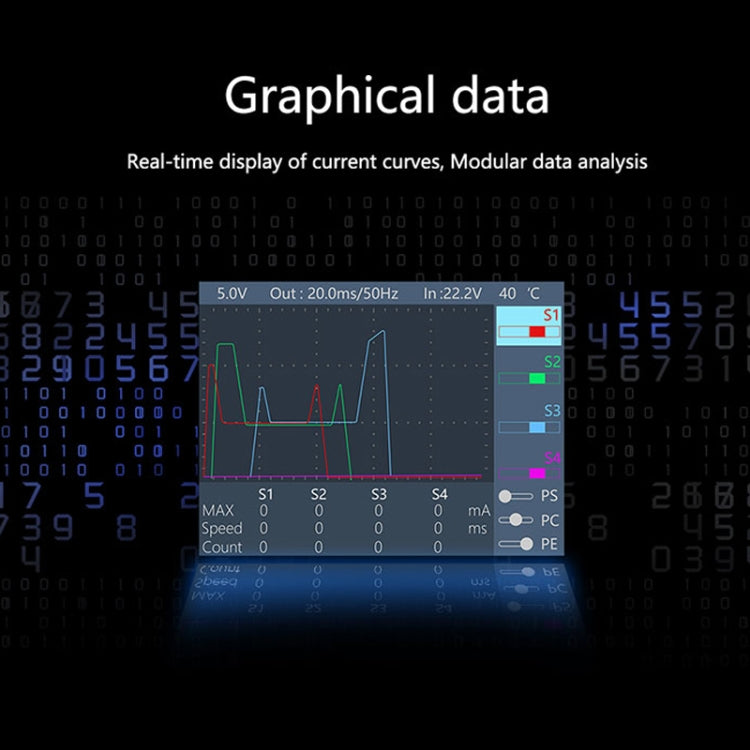

3. Graphical data, real-time display of the current curve, data analysis

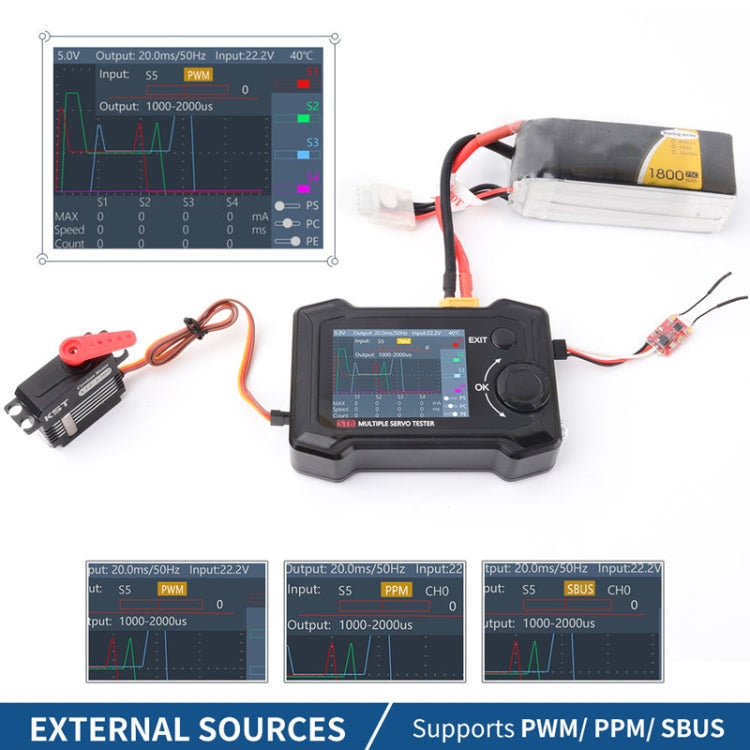

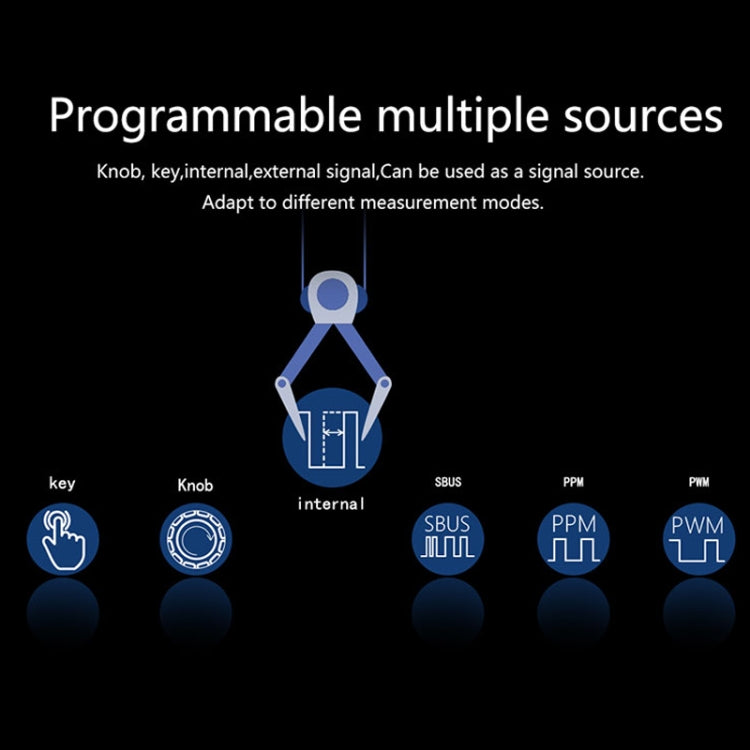

4. Programmable multiple signal sources: knob, key, internal and external signals can be used as signal sources to fit different measurement modes

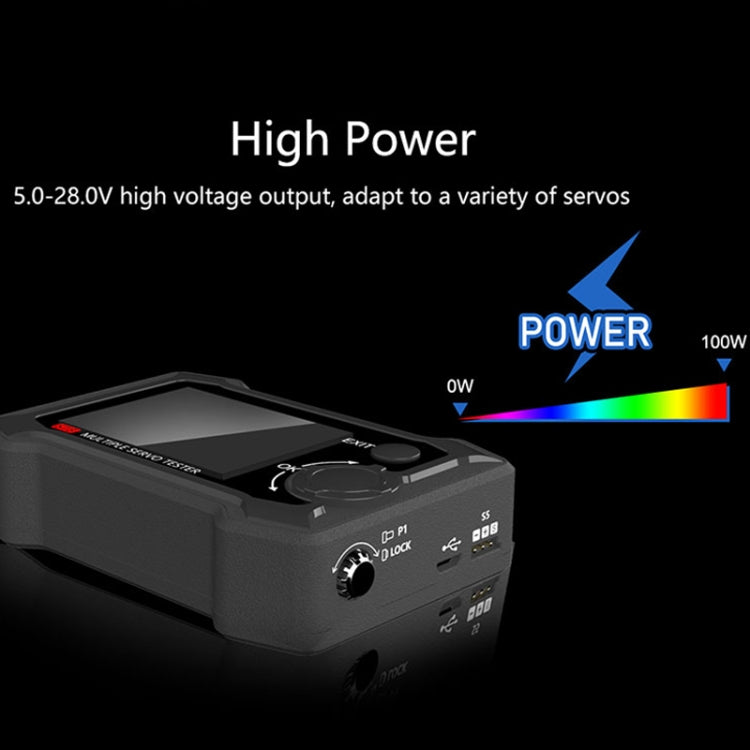

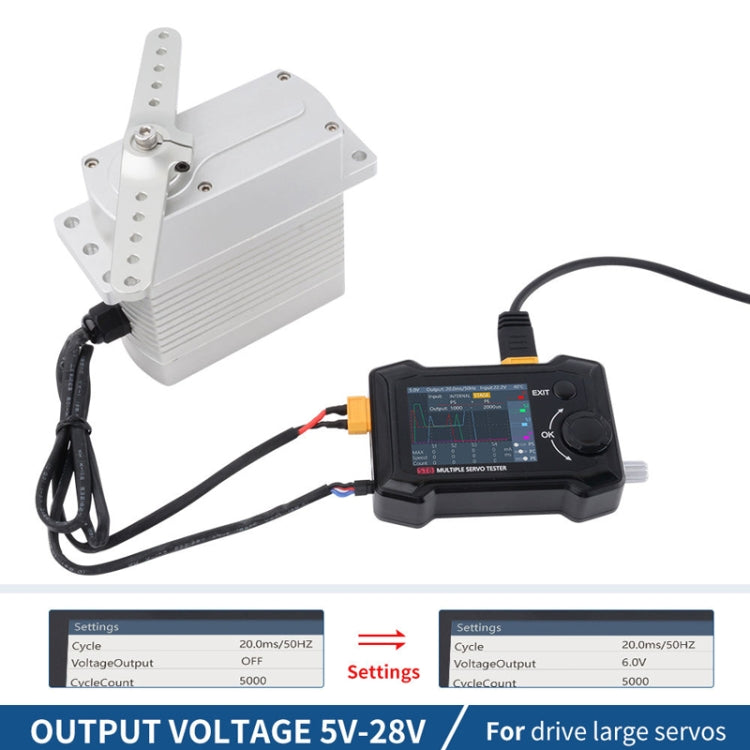

5. 5.0-28.0V high voltage output, suitable for a variety of servos

Parameters:

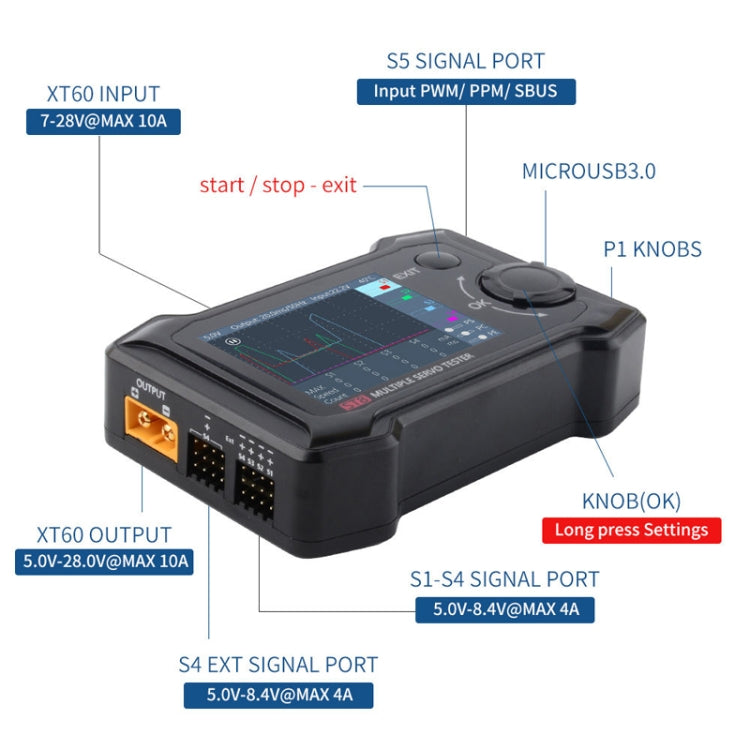

1. Input voltage: 7-28V MAX 10A
2. Main input port: 5.0V-28.0V MAX 10A
3. Signal port output voltage: 5.0-8.4V MAX 4A/S1-S4; 5.0-8.4V MAX 4A/S4 Ext
4. Output signal: 100us-2900us 33-1000Hz S1-S4; PWM 500us-2500us S5; PPM 8CH S5; SBUS 16CH S5
5. P1 knob range: 1000us-2000us P1
6. MicroUSB: firmware upgrade USB3.0
7. LCD display: 2.4-inch TFT RGB, 320 x 240 pixels
8. Size: 99 x 68 x 26mm
9. Weight: 140g
