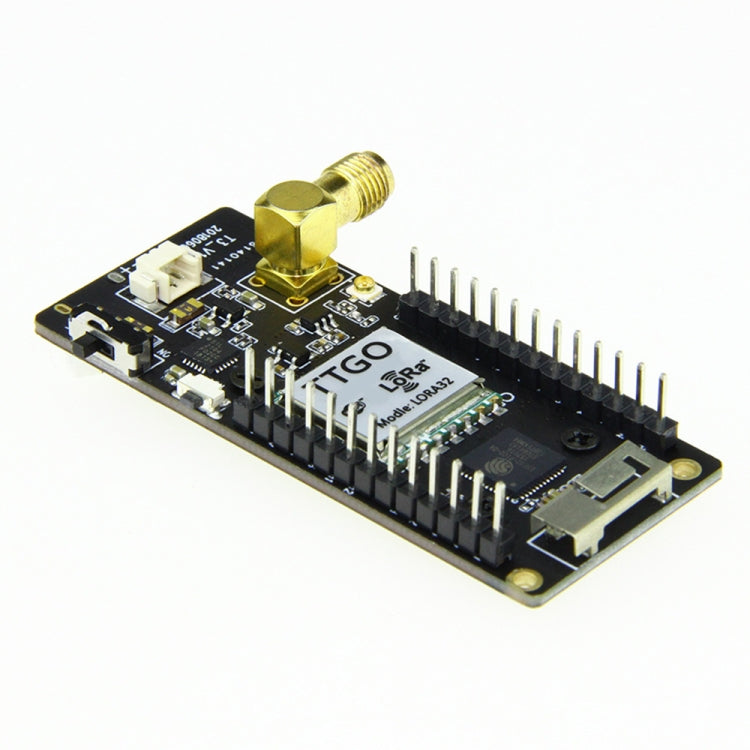

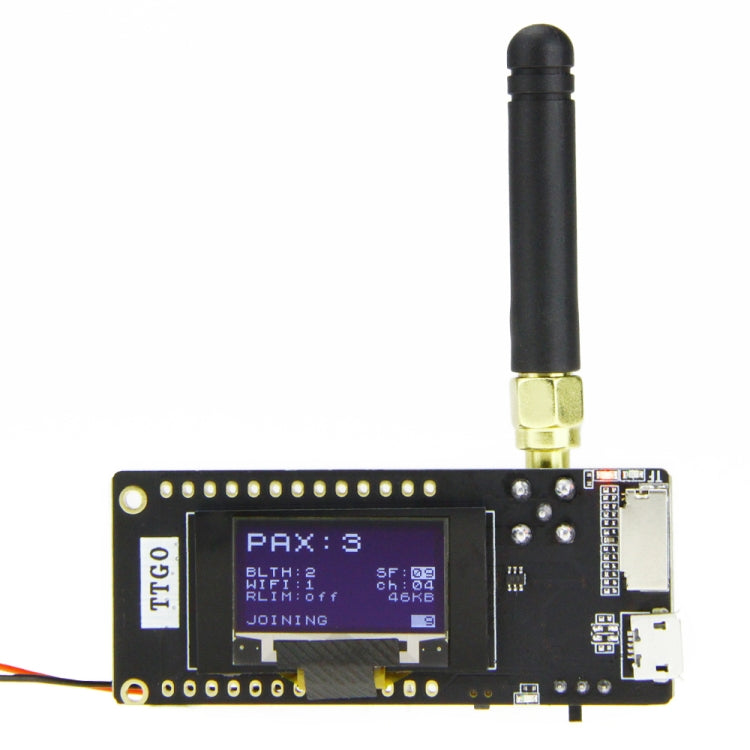

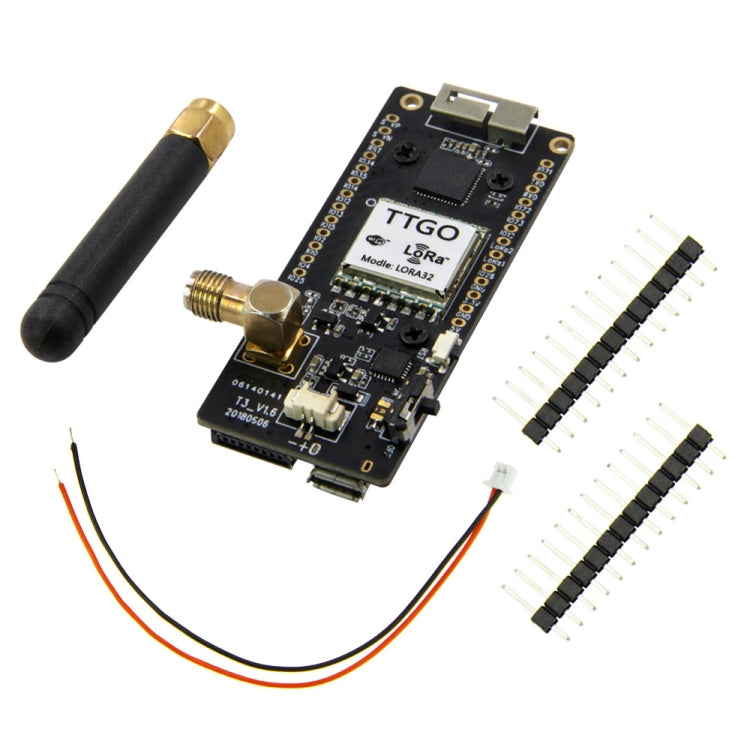

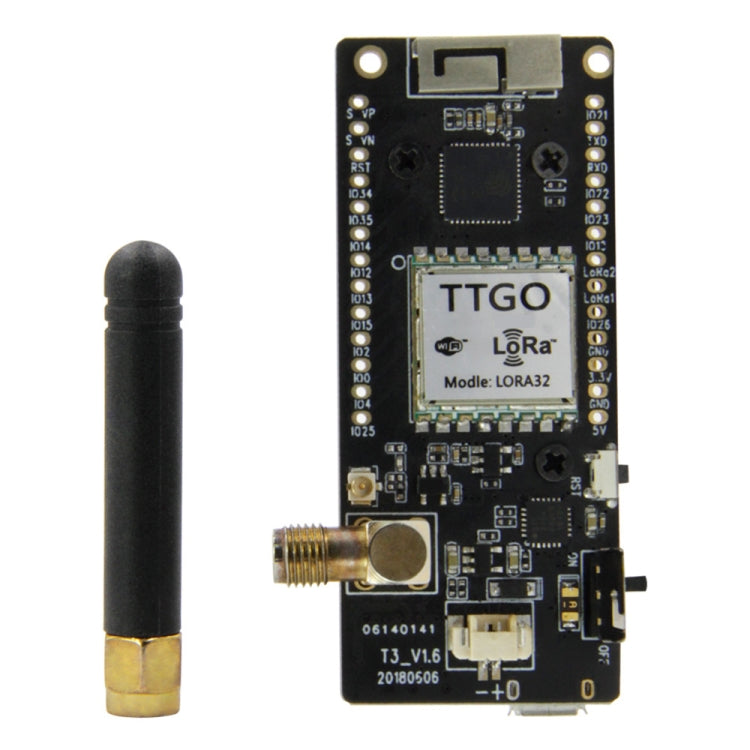

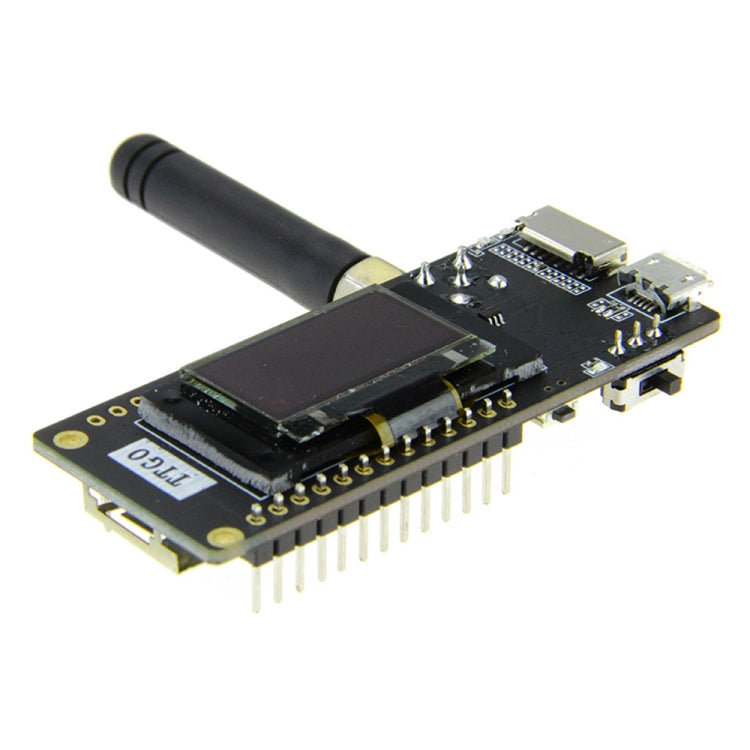

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 433MHz SMA IP5306 Module with Antenna
TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 433MHz SMA IP5306 Module with Antenna
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R214.62/mo 3 months
- R108.53/mo 6 months
- R57.28/mo 12 months
- From R214.62/month over 3 months, or as low as R57.28/month over 12. Total repayable over 12 months: R687.36. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
TTGO LORA32 V2.1 is a wireless communication module designed for ESP32 applications. It is suitable for everyday use in various consumer electronics projects requiring Bluetooth and WiFi connectivity.
- Product Type: Module
- Compatibility: ESP32
- Working Voltage: 1.8~13.7V
- Acceptable Current: 10~114mA
- Emission Current:
- 120mA at +20dBm
- 90mA at +17dBm
- 29mA at +13dBm
- Working Frequency: 433MHz
- Transmitting Power: +20dBm
- Receiving Sensitivity:
- -139dBm at LoRa & 62.5KHz & SF = 12 & 146bps
- -136dBm at LoRa & 125KHz & SF = 12 & 293bps
- -118dBm at LoRa & 125KHz & SF = 6 & 9380bps
- -123dBm at FSK & 5KHz & 1.2Kbps
- Frequency Error: +/- 15KHz
- FIFO Space: 64Byte
- Data Rate:
- 1.2K~1300Kbps at FSK
- 0.018K~37.5Kbps at LoRa
- Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
- Interface Form: SPI
- Sleep Current:
- 0.2uA in SLEEP
- 1.5uA in IDLE
- Working Temperature: -40°C to +85°C
- Digital RSSI Function
- Automatic Frequency Correction
- Automatic Gain Control
- RF Wake-Up Function
- Low Voltage Detection and Temperature Sensor
- Fast Wake-Up and Frequency Hopping
- Highly Configurable Packet Handler
- Antenna: SMA IP5306
