Description
TTGO T-Internet-POE ESP3 Module Downloader Extension Board is a module designed for downloading and extending capabilities of ESP32 devices. It is suitable for everyday use in various consumer electronics applications.
- Product Type: Module
- Compatibility: ESP32
- Material: Not specified
- Color/Variant: Not specified
- Key Feature: Downloader extension board

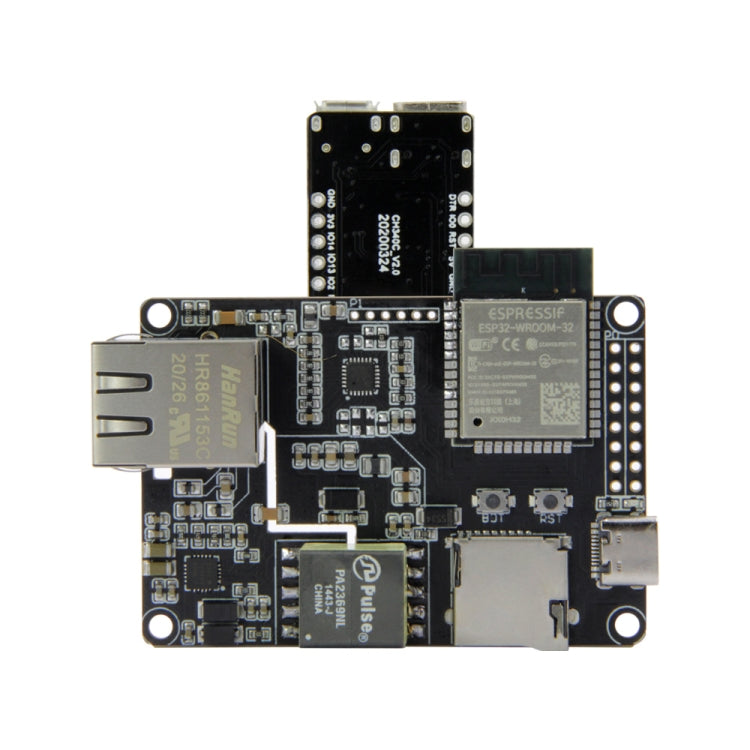

- Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip
- Flash Memory: 4MB
- PSRAM: 8MB
- SRAM: 520 kB
- Buttons: Robot, Reset
- External Devices: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface
- USB to TTL: CP 2104

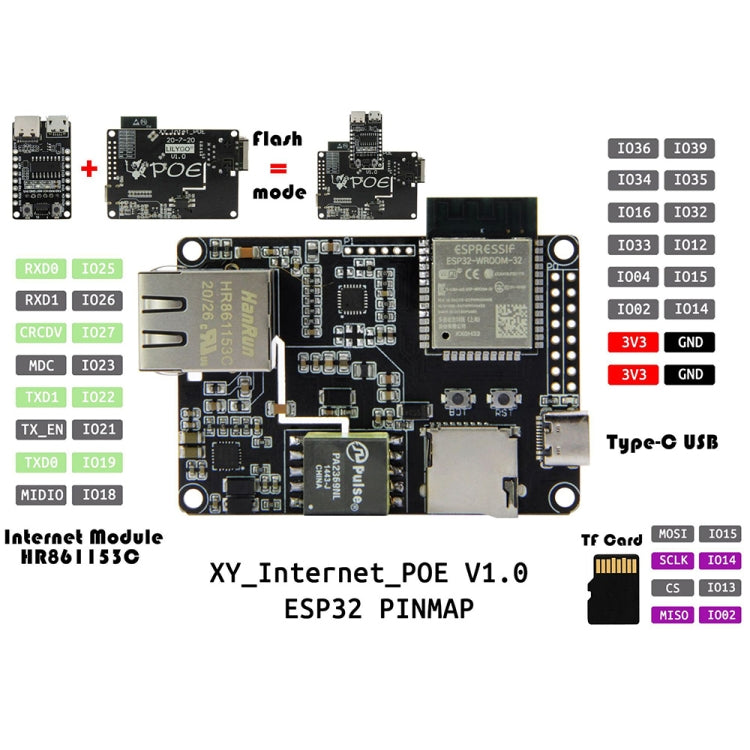

- Modular Interfaces: SD card, UART, SPI, I2C, PWM, I2S, ADC
- Satellite Clock: 32.768 MHz crystal oscillator
- Operating Temperature Range: -40°C to +85°C

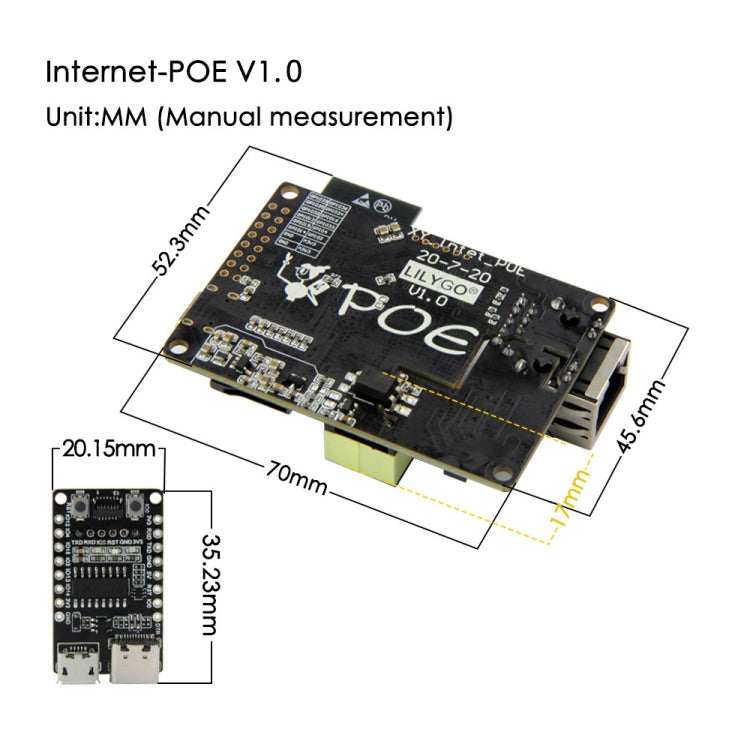

- Size: 70 x 52.3 x 17 mm
- Weight: 26.85 g
- Power Input: C type USB 5V
- HR861153C Ethernet-POE Interface: 50V
- Working Voltage: 2.7V - 3.6V
- Output Current: Approximately 1.2A
- Charging Current: 500 mA
- USB: Type C USB
- Wi-Fi Standard: FCC/CE-Red/IC/TELEC/KCC/SRRC (ESP 32 chip)
- Wi-Fi Protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps)
- Wi-Fi Frequency Range: 2.4GHz - 2.5GHz (2400 m - 2483.5M)
- Wi-Fi Transmit Power: 22 dBm
- Wi-Fi Communication Distance: 300 meters
- Bluetooth Protocol: Complies with Bluetooth V4.2BR/EDR and BLE standards
- Bluetooth Radio Frequency: -97 dBm sensitivity
- Bluetooth Audio: CVSD & SBC audio
- Wi-Fi Mode: Workstation/SoftAP/SoftAP+Station/P2P
- Security Mechanism: WPA/WPA 2/WPA 2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware Upgrade: UART download/OTA
- Software Development: Support cloud server development/sdk for user firmware development
- Network Protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- User Configuration: Instruction set, cloud server, Android/iOS app
- Operating System: FreeRTOS
