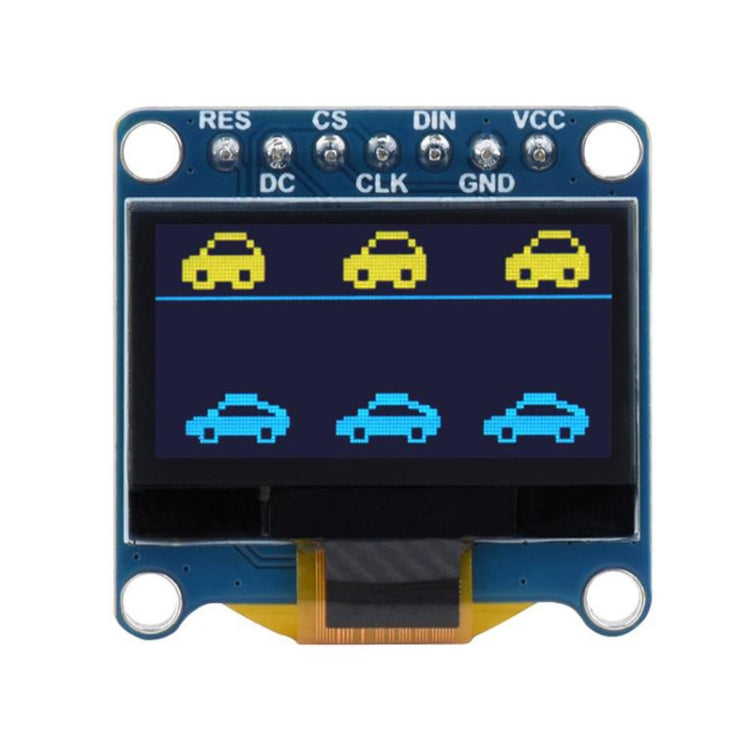

Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(C Yellow Blue)
Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(C Yellow Blue)
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from China (Standard) • Import tax and duties included
Ships from China (Standard) • Import tax and duties excluded
Ships from Hong Kong (Direct) • Import tax and duties excluded
Description
The Waveshare 0.96 inch OLED Display Module is a display board designed for SPI and I2C communication. It is suitable for use with Raspberry Pi and Arduino projects, providing a compact display solution for various applications.
- Product Type: Display Module
- Material: OLED
- Color/Variant: C Yellow Blue
- Display Size: 0.96 inches
- Resolution: 128×64 pixels
- Pixel Size: 0.15 × 0.15 mm
- Working Voltage: 3.3V / 5V
- Communication Interface: 4-wire SPI/I2C
- Driver Chip: SSD1315
- Size: approximately 2.6 x 2.6 cm
- Compatibility: Raspberry Pi, Arduino
- Features: Narrow bezel, small size, equipped with level conversion circuit

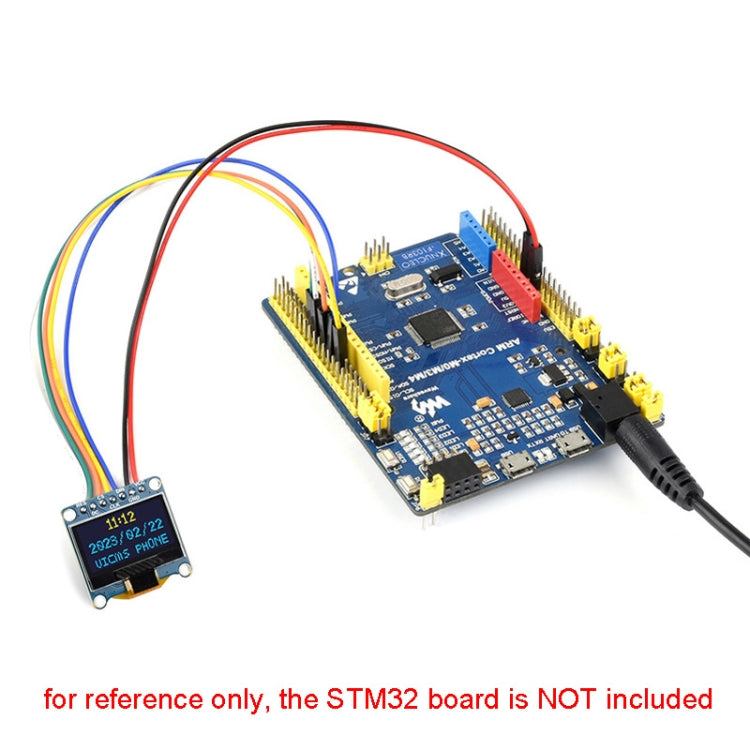

- Includes supporting information manual with sample programs for Raspberry Pi, Arduino, and STM32
