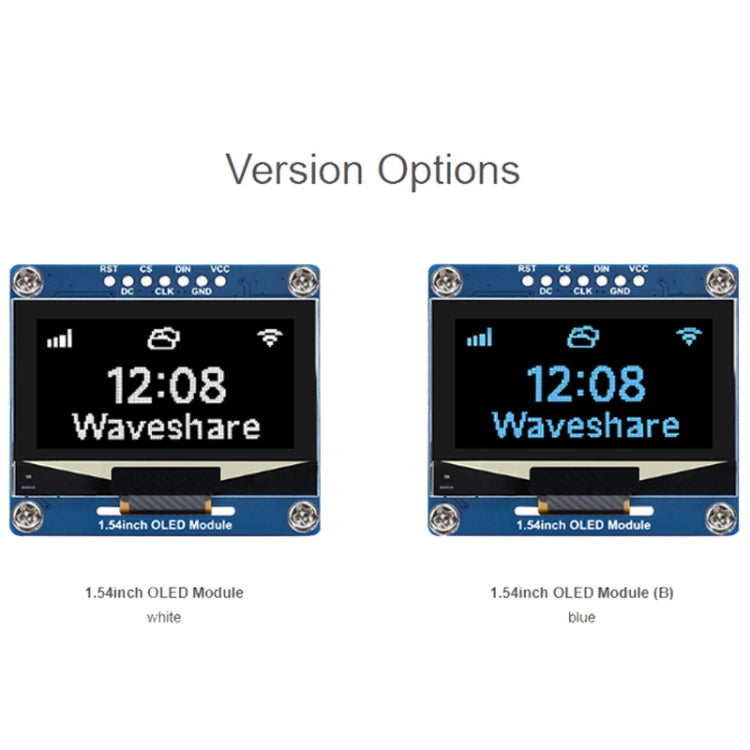

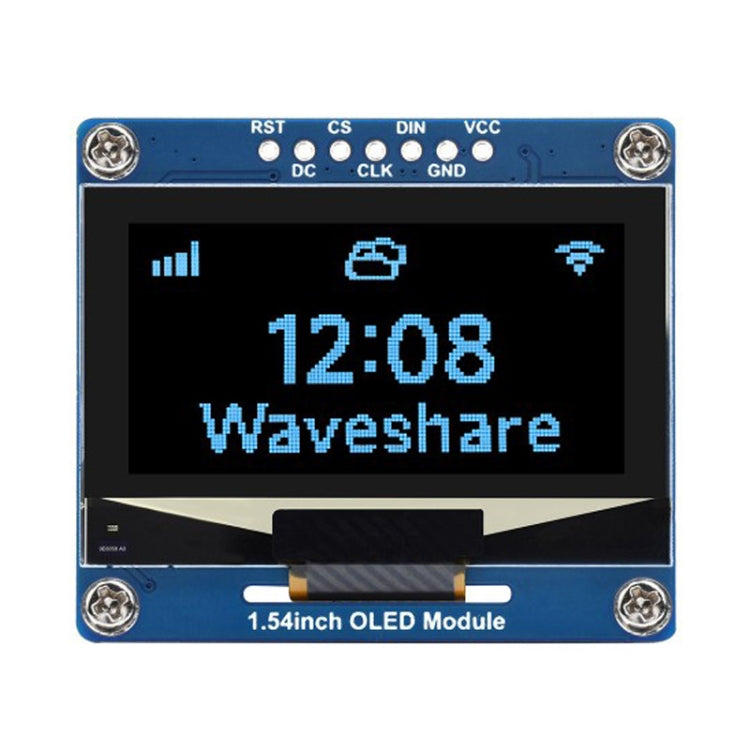

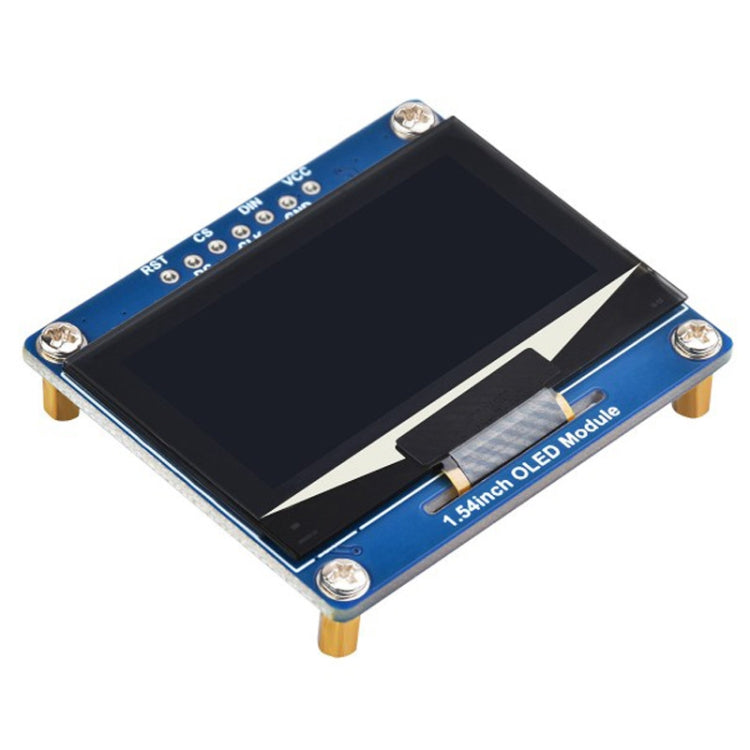

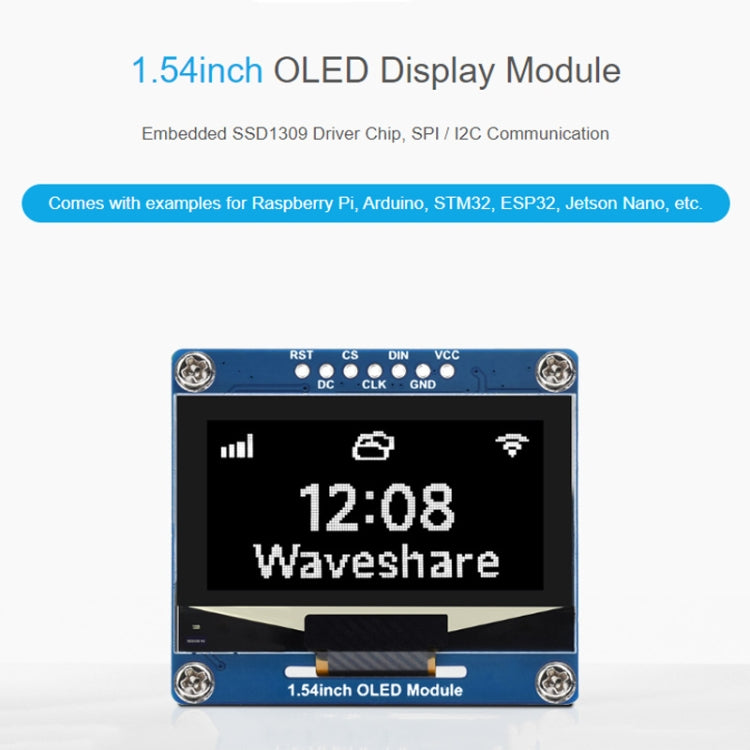

Waveshare 1.54 Inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(Blue)

Name: Waveshare 1.54 Inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(Blue)
Brand: Waveshare
SKU: TBD0576514401B
Price: 389.00 ZAR
Availability: InStock

R 389.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Onboard voltage converter, compatible with 3.3V/5V MCU

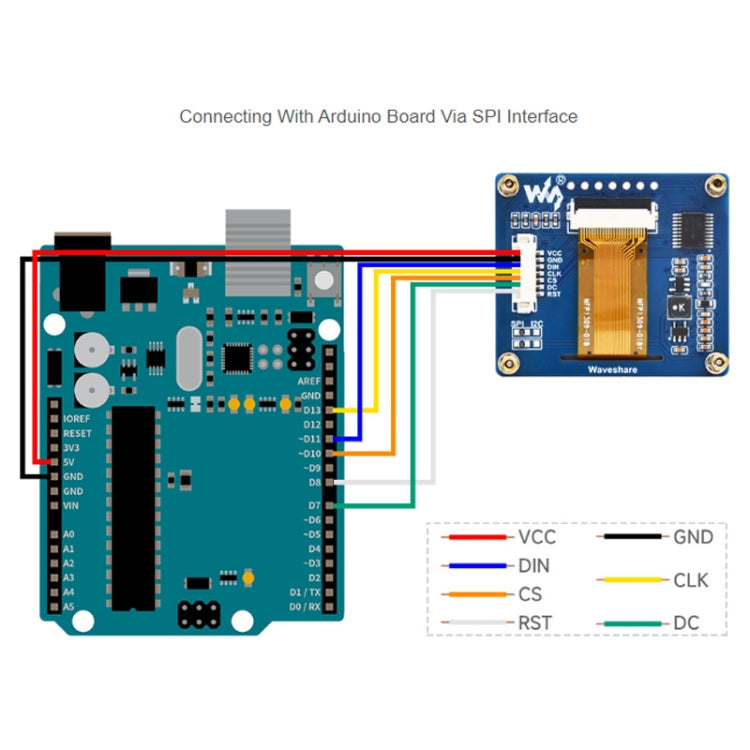

2. Using 4-wire SPI and I2C interface, better compatibility and fast data rate

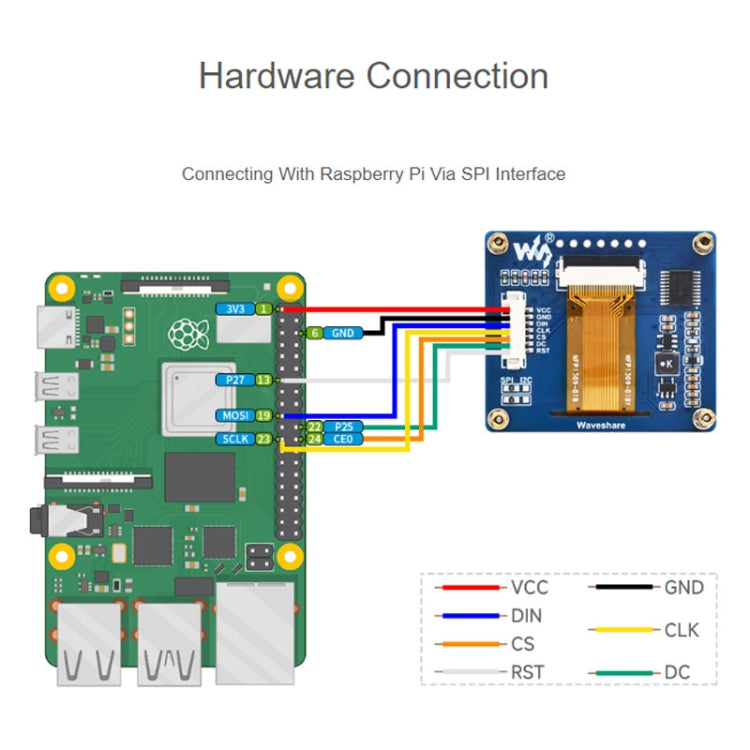

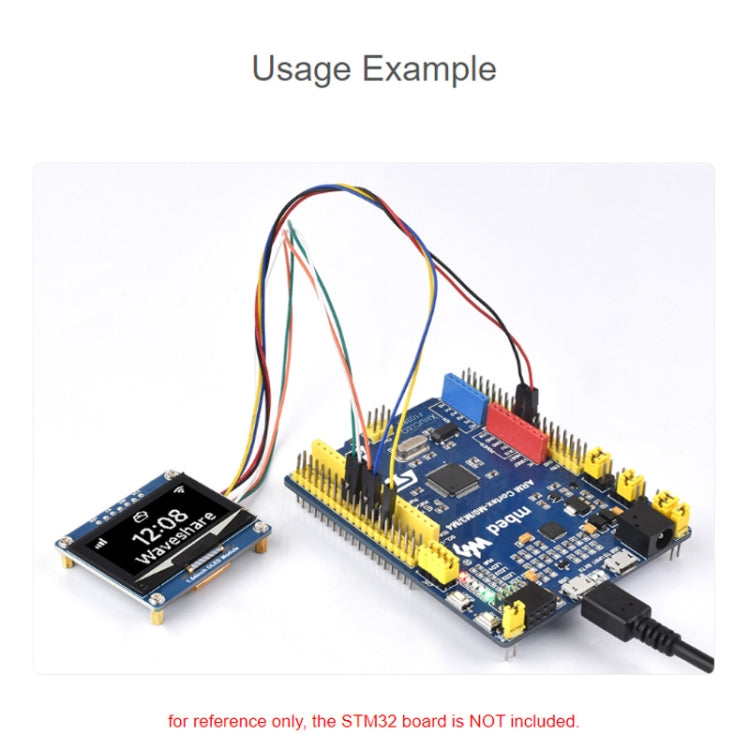

3. Comes with online development resources (Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano examples)
4. Working voltage: 3.3V/5V
5. Display panel: OLED
6. Resolution: 128×64 pixels
7. Pixel size: 0.25 × 0.25 mm

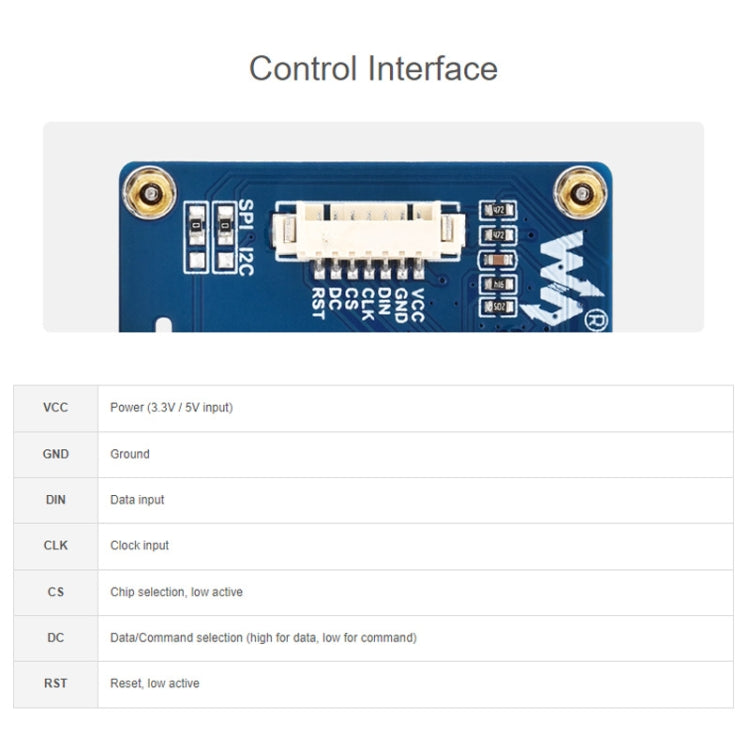

8. Communication interface: 4-wire SPI/I2C
9. Driver: SSD1309

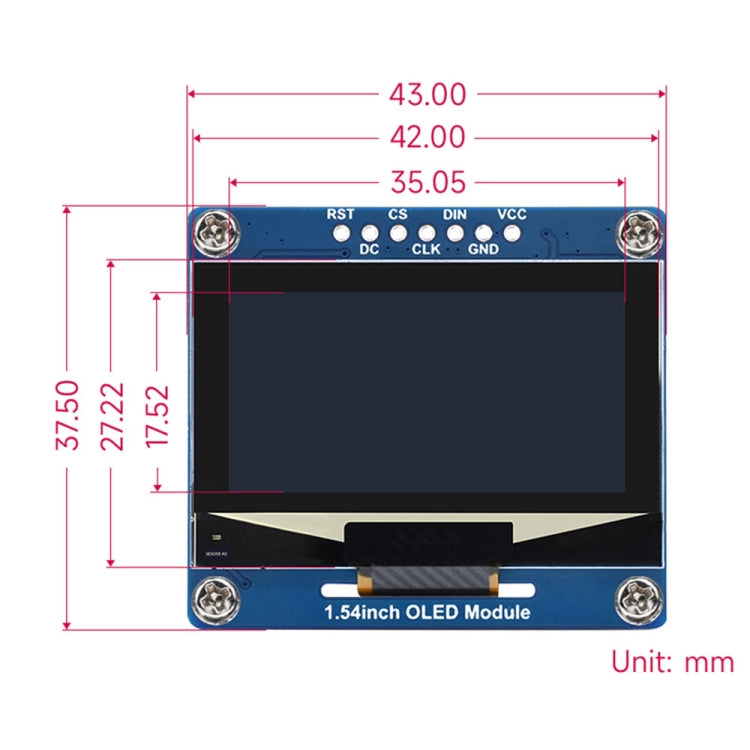

10. Display size: 35.05 × 17.52mm
11. Module size: 43.00 × 37.50mm
12. Weight: 3 grams

Packing list:
-1.54-inch OLED module x 1
-GH1.25 7PIN cable x 1
