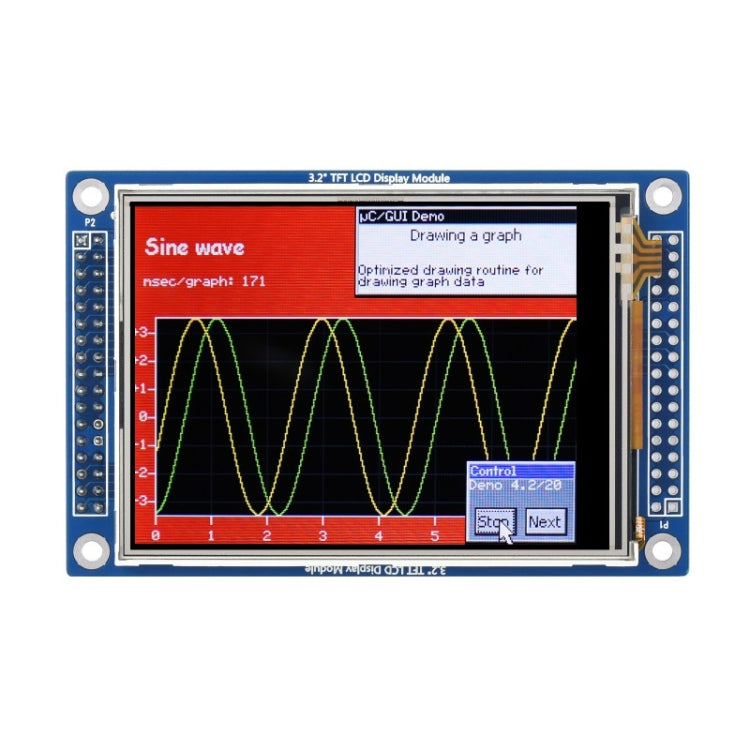

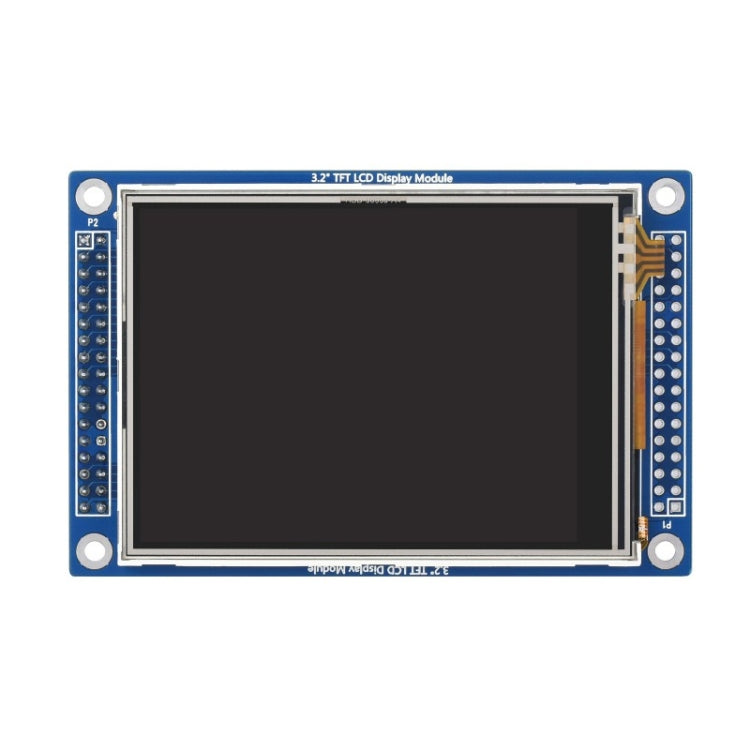

Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers
Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers
Sale
Sold out
Pre-order
Regular price
R 539.00
Regular price
Sale price
R 539.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: LCD & LED Display Module
• Brand: Waveshare
• Compatibility: 3.2inch Touch LCD
• Material: TN
• Key feature: Programmable backlight
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Arduino & SCM Supplies
1. Working voltage: 3.3V
2. Resolution: 320 × 240 pixels

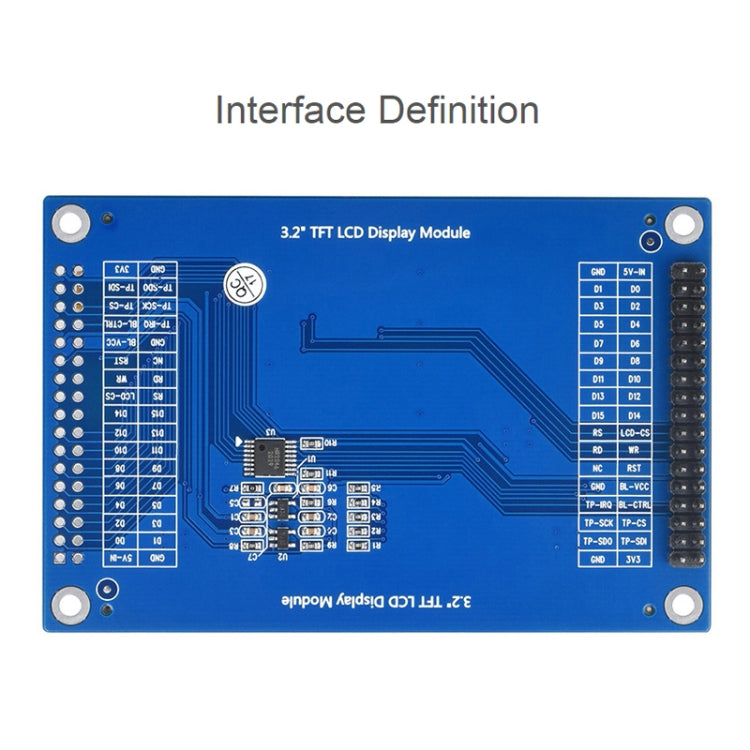

3. Interface: 8080 parallel port + SPI
4. Display panel: TN
5. LCD controller: ILI9341

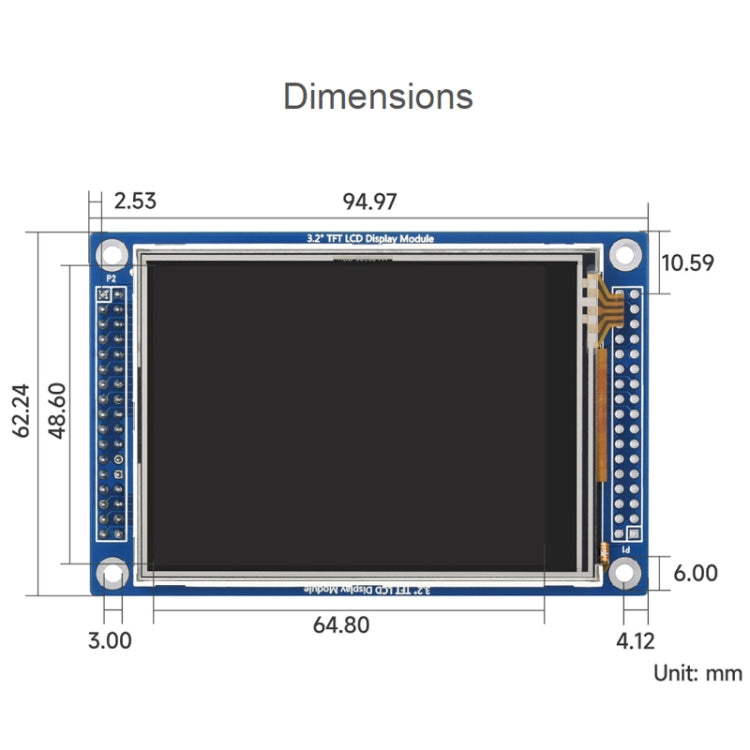

6. Display size: 48.6 × 64.8 mm
7. Pixel pitch: 0.198 × 0.198 mm
8. Module size: 94.97 × 62.24mm
9. 320×240 resolution LCD, 262K colors, the color screen display is clear
10. Onboard touch chip, smoother touch effect than touch panel controlled by AD pin
11. Programmable backlight, more power saving
12. Self-contained development resources and manuals (take STM32 as an example)
• Brand: Waveshare
• Compatibility: 3.2inch Touch LCD
• Material: TN
• Key feature: Programmable backlight
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Arduino & SCM Supplies
1. Working voltage: 3.3V
2. Resolution: 320 × 240 pixels
3. Interface: 8080 parallel port + SPI
4. Display panel: TN
5. LCD controller: ILI9341
6. Display size: 48.6 × 64.8 mm
7. Pixel pitch: 0.198 × 0.198 mm
8. Module size: 94.97 × 62.24mm
9. 320×240 resolution LCD, 262K colors, the color screen display is clear
10. Onboard touch chip, smoother touch effect than touch panel controlled by AD pin
11. Programmable backlight, more power saving
12. Self-contained development resources and manuals (take STM32 as an example)
Questions about features, compatibility, or warranty? Chat with our support team!
