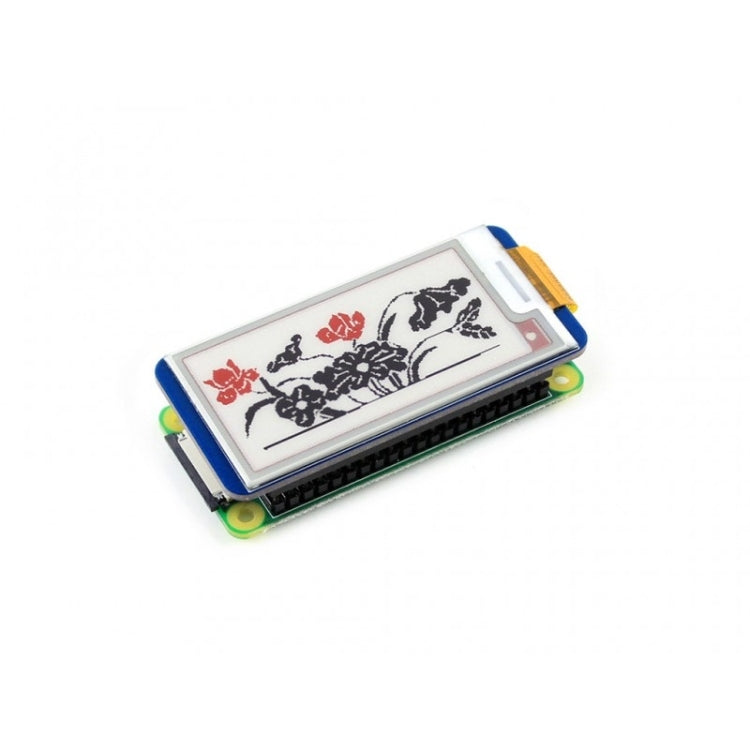

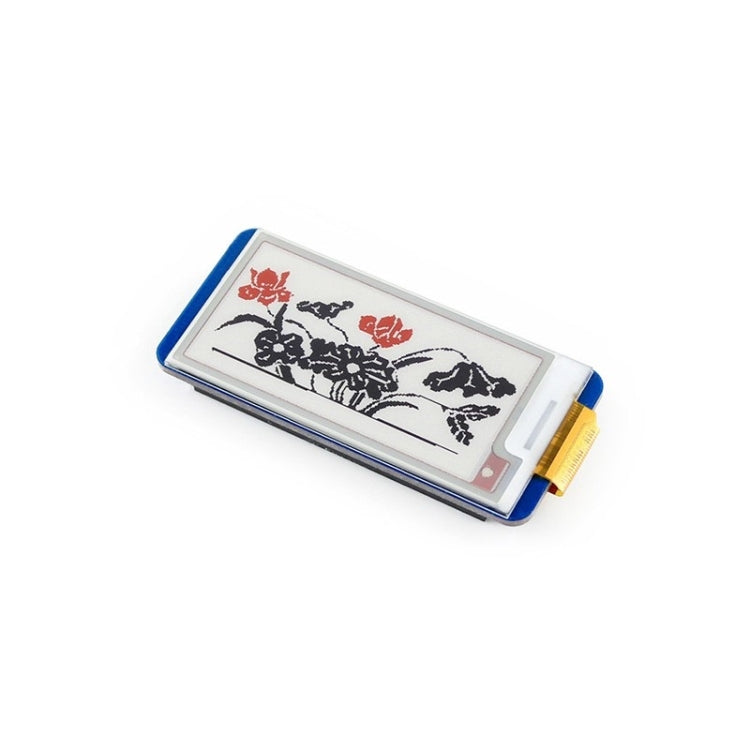

Waveshare 2.13 inch 212x104 Pixel Three-color E-Ink Display HAT (B) for Raspberry Pi
Waveshare 2.13 inch 212x104 Pixel Three-color E-Ink Display HAT (B) for Raspberry Pi
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from International Fulfillment Center • Import tax and duties included
Ships from International Fulfillment Center • Import tax and duties excluded
Ships from International Fulfillment Center • Import tax and duties excluded
Description

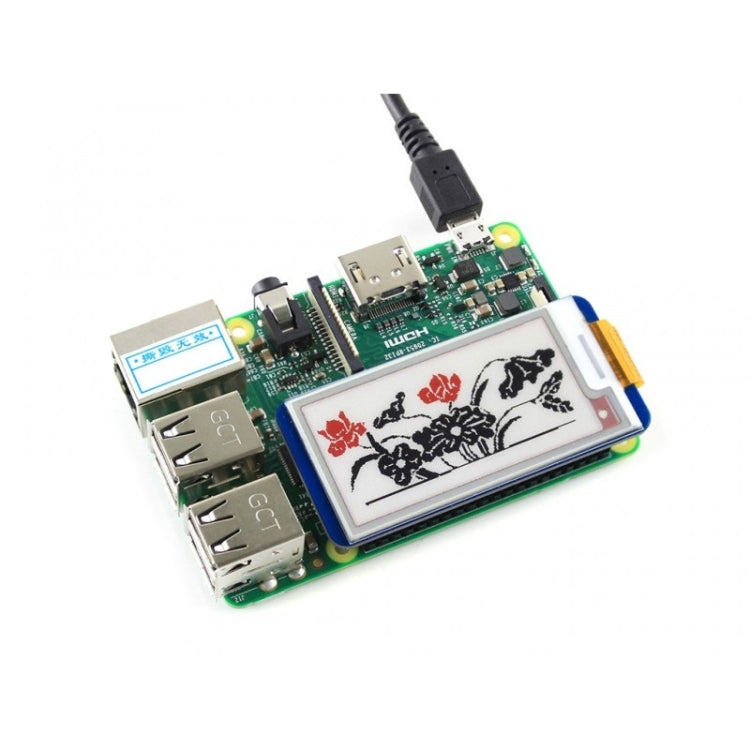

The Waveshare 2.13 inch E-Ink Display HAT is designed for use with Raspberry Pi devices. It is suitable for applications such as shelf labeling and industrial instruments due to its low power consumption and clear display capabilities.
- Product Type: E-Ink Display HAT
- Compatibility: Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, 3B+
- Material: Electronic components
- Display Size: 23.71mm x 48.55mm
- Resolution: 212 x 104 pixels
- Display Color: Red, Black, White
- Grey Level: 29
- Dot Pitch: 0.229 x 0.228 mm
- Operating Voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline Dimension: 65mm x 30.2mm
- Full Refresh Time: 15 seconds
- Refresh Power: 26.4mW (typical)
- Standby Power: <0.017mW
- Viewing Angle: >170 degrees
- Includes development resources and manual for Raspberry Pi, Jetson Nano, Arduino, STM32

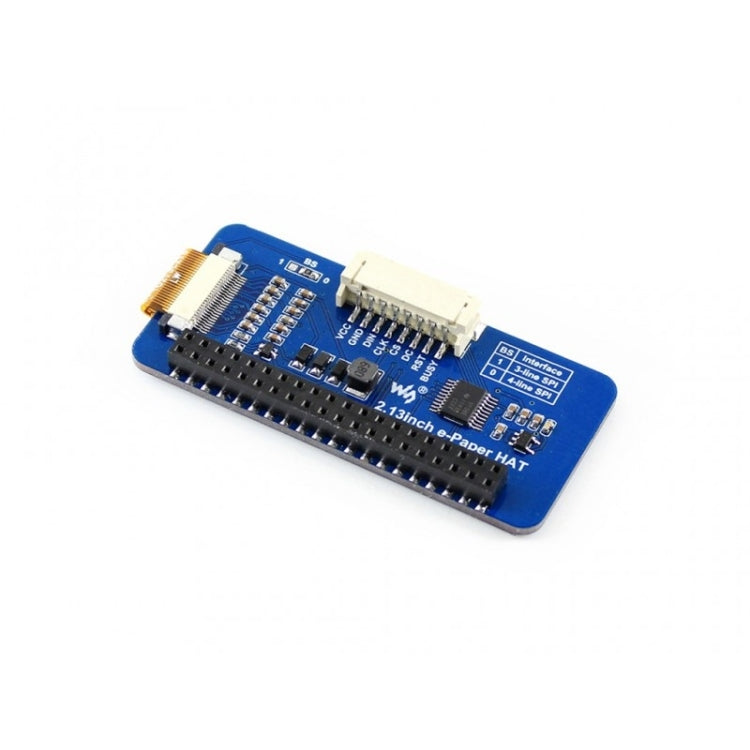

- Preserved solder pads for SPI interface for connecting with other controller boards
- Onboard voltage translator compatible with 3.3V/5V MCUs
- Package Contents: 2.13 inch e-Paper HAT (B), RPi screws pack (2pcs), PH2.0 20cm 8 Pin
