Waveshare 25098 ESP32-S3 1.28-Inch Round Touch LCD Development Board
Waveshare 25098 ESP32-S3 1.28-Inch Round Touch LCD Development Board
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

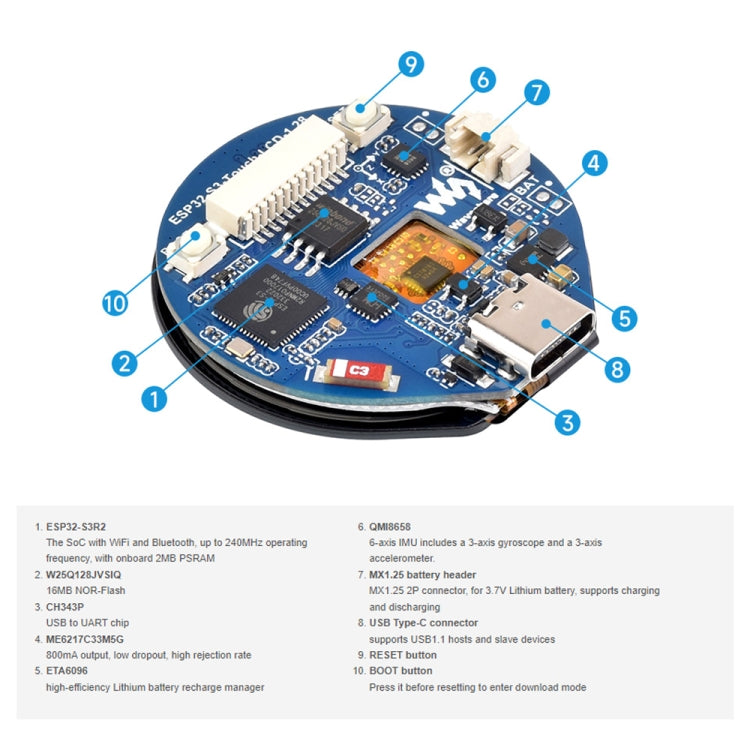

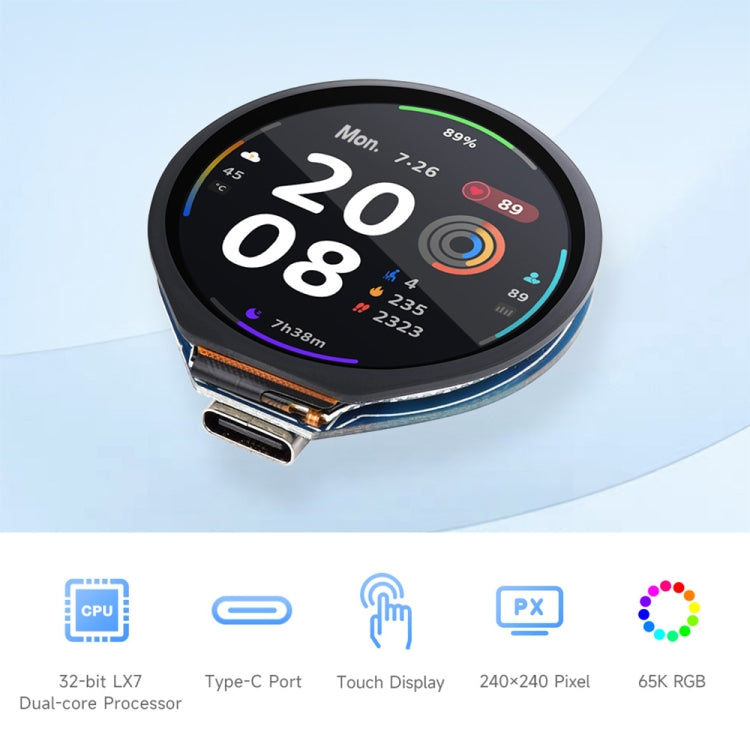

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
2. Support 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth 5 (LE), onboard antenna
3. Built-in 512KB SRAM and 384KB ROM, stacked 2MB PSRAM and external 16MB Flash
4. Adopt Type-C interface, keep up with the trend of the times, no need to worry about whether to insert it forward or backward

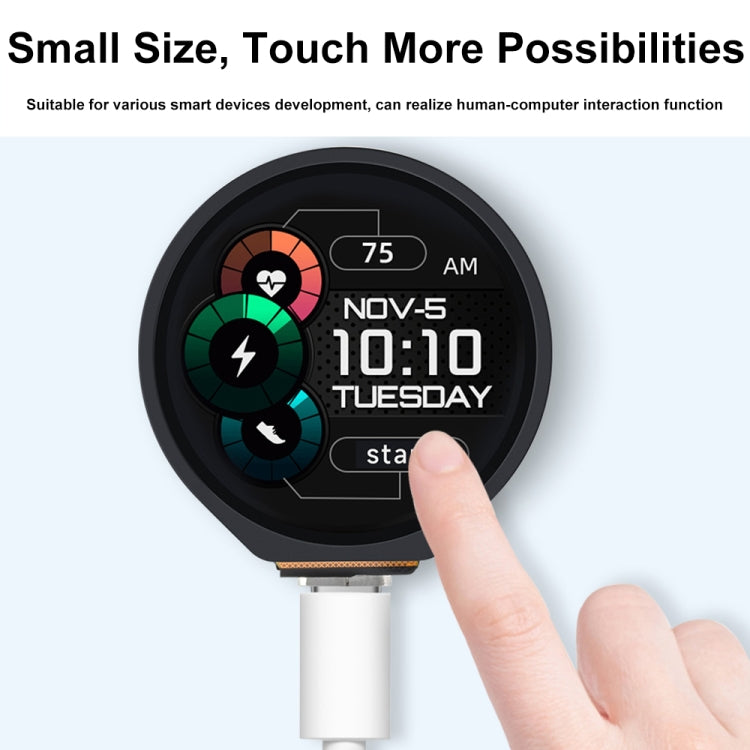

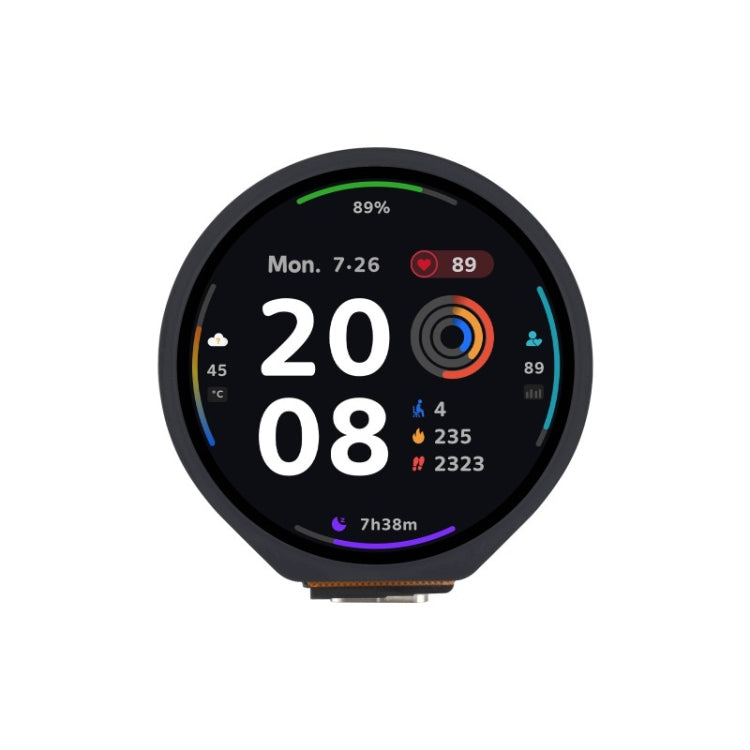

5. Onboard 1.28-inch capacitive touch LCD screen, 240×240 resolution, 65K color
6. Onboard QM18658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture
7. Onboard 3.7V MX1.25 lithium battery charging and discharging interface ☐

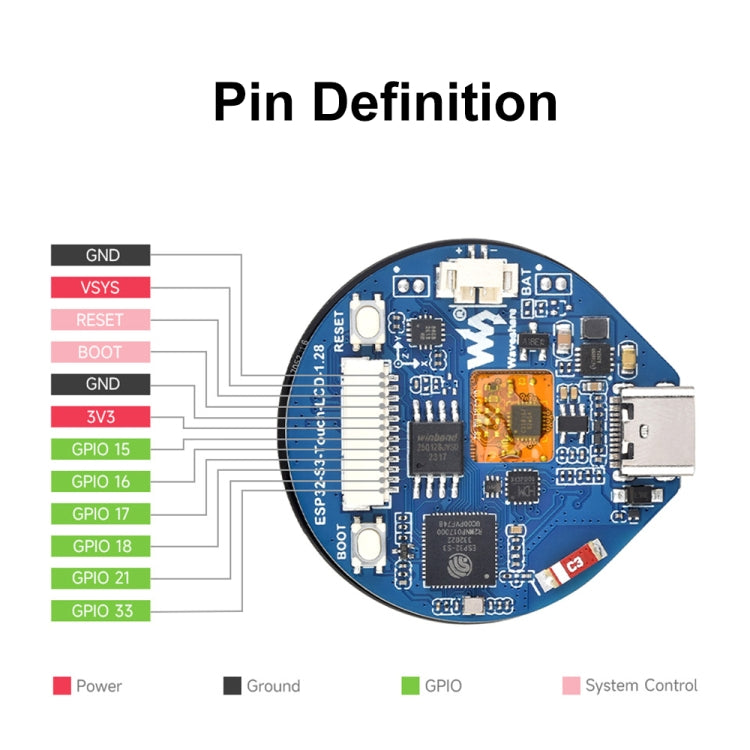

8. Lead out 6 GPIO SH1.0 connector
9. Supports flexible clock, module power individual setting and other precise control, realizing multi-scenario low power consumption mode
10. Integrated USB serial port full-speed controller, GPIO can flexibly configure peripheral functions
