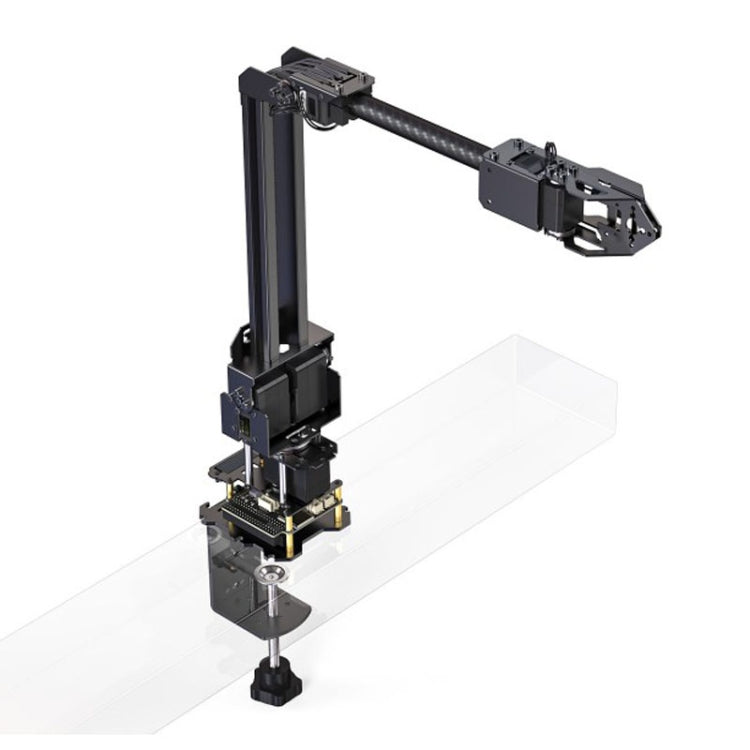

Waveshare 25118 RoArm-M2-S Desktop Robotic Arm Kit, Based On ESP32, 4-DOF(UK Plug)
Waveshare 25118 RoArm-M2-S Desktop Robotic Arm Kit, Based On ESP32, 4-DOF(UK Plug)
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 working days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Number of degrees of freedom: 4

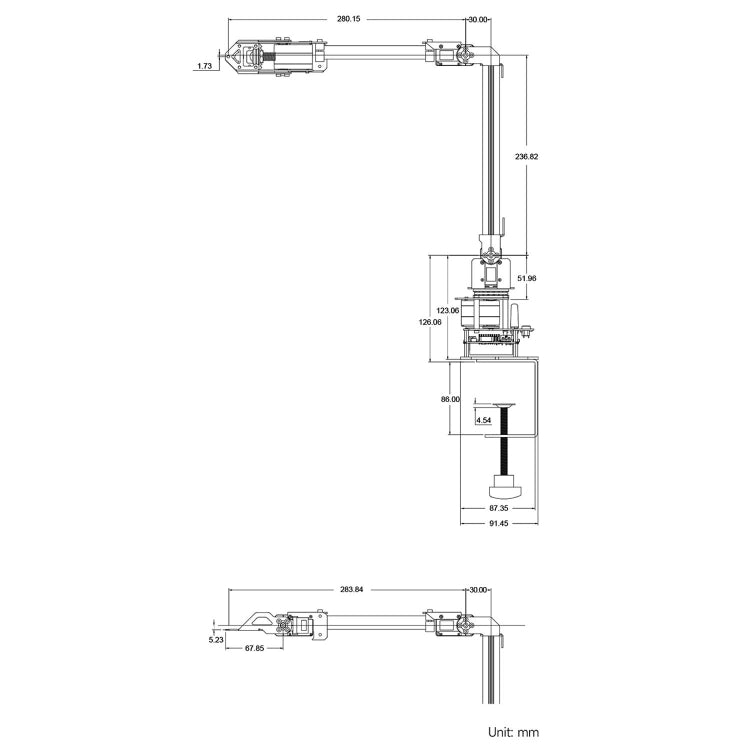

2. Workspace: horizontal diameter 1090mm (Max, 360 degrees omnidirectional), vertical range 798mm (Max)
3. Working voltage: standard 12V 5A power supply, can be powered by 3S lithium battery pack
4. Load capacity: 0.5kg@0.5m
5. Repeat positioning accuracy: about +/-4mm (same load)
6. Drive rotation speed: 40rpm (no load, no torque limit)
7. Working range: BASE-360 degrees, SHOULDER-180 degrees, ELBOW-180 degrees, HAND-135 degrees/270 degrees
8. Drive mode: TTL bus servo servo (TTL BUS SERVO), joint direct drive
9. Number of drives: 5
10. Joint angle sensor: 12 bits 360-degree magnetic encoder
11. Driver stall torque: 30KG.CM @12V
12. Joint feedback information: driver status, joint angle, rotation speed, joint load, driver voltage, driver current, driver temperature, driver working mode
13. Onboard master control: ESP32-WROOM-32
14. Onboard master control module features: WiFi, BT, Dual Core, 240MHz
15. Wireless control method: 2.4G-WiFi, ESP-NOW
16. Wired control method: USB, UART
17. Manual operation method: WEB control interface
18. Machine operation method: Use UART/USB/ESP-NOW"/HTTP communication JSON data format instructions (currently, the ESP-NOW JSON instruction interaction in the routine has no feedback information, and cannot be used to execute instructions that will cause long-term blocking, such as: motion control with interpolation or playing long-term task files)
19. Connectable host computer: Raspberry Pi, Jetson Orin Nano, PC and other devices that support USB connection. End effector function: default is the chuck function, which can be changed to an extra degree of freedom.
20. LED fill light power: less than 1.5W
21. OLED screen size: 0.91inch
22. Other onboard functions: two 12V switches, 9-DOF IMU
23. Robot arm weight: about 841g (excluding the table clamp)
24. Table clamp weight: about 296g
25. Table thickness supported by the table clamp: less than 72mm
26. Robot arm routine function: three-dimensional rectangular coordinate system control (inverse kinematics control), dynamic external force adaptation control, joint angle control, work information feedback, FLASH file system operation, step recording and playback, ESP-NOW control, imitation mode (drag teaching), LED light control, onboard 12V switch control, WFi related function settings, setting the power-on task, bus servo related function settings, feedback mode settings, end assembly method settings, etc. Note: This is just a general introduction. For the specific functions and related instructions of the open source routines, please refer to WKI.

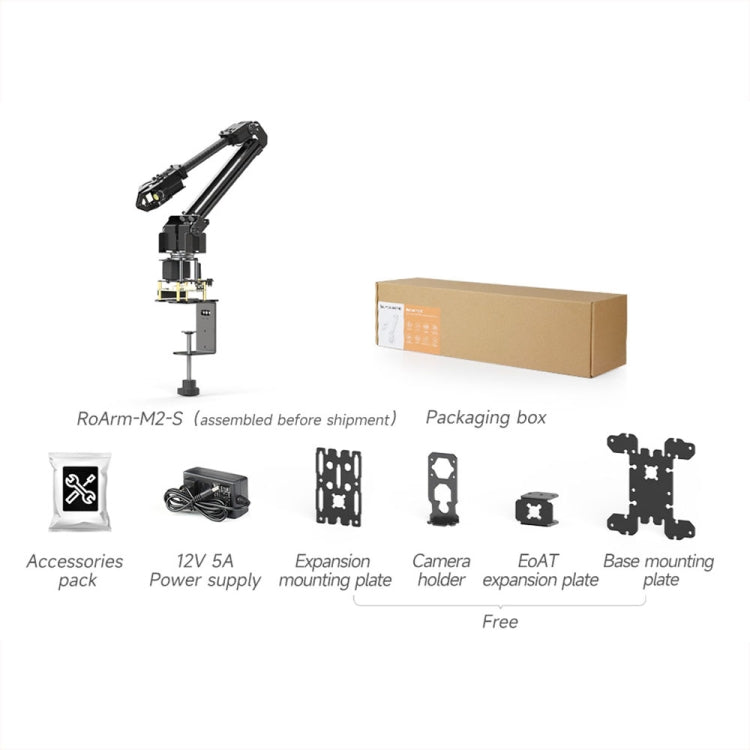

Packing list:
-Robot arm x 1
-Charger x 1
-Guide extension base x 1
-Camera bracket x 1
-End extension bracket x 1
-Lightweight base x 1
-Accessory bag x 1
