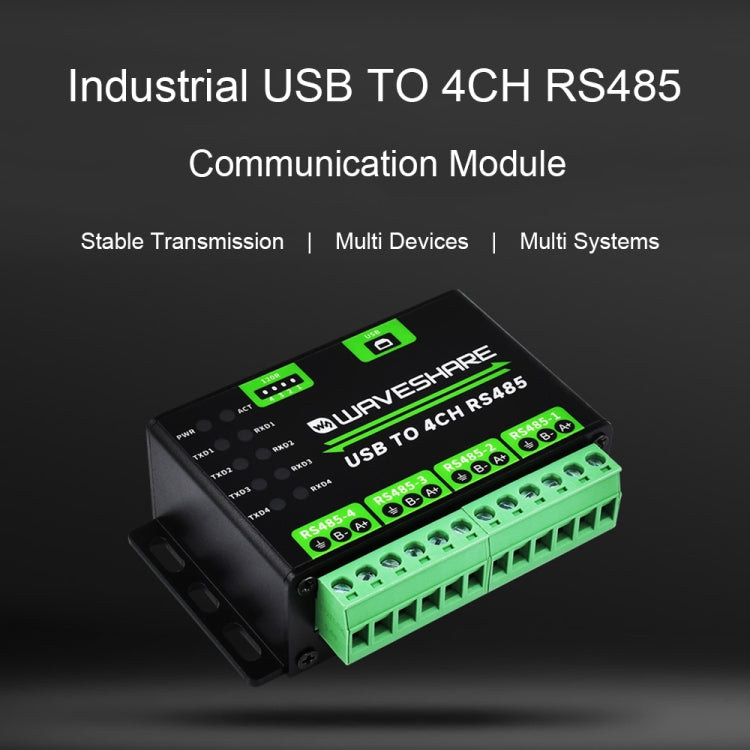

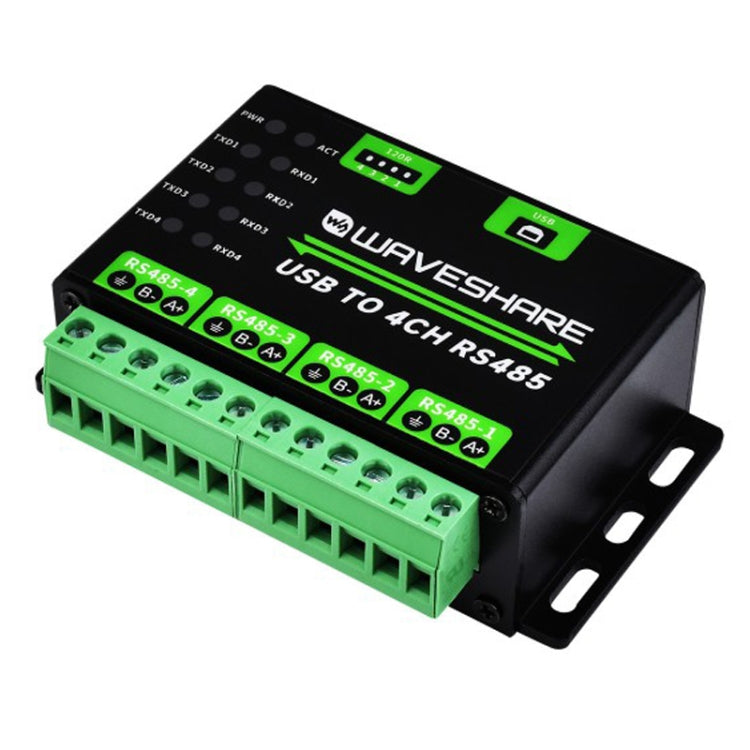

Waveshare 25219 Industrial USB To 4Ch RS485 Converter
Waveshare 25219 Industrial USB To 4Ch RS485 Converter
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
Features:
1. Expand USB to 4-channel RS485, allowing each channel to communicate concurrently and independently

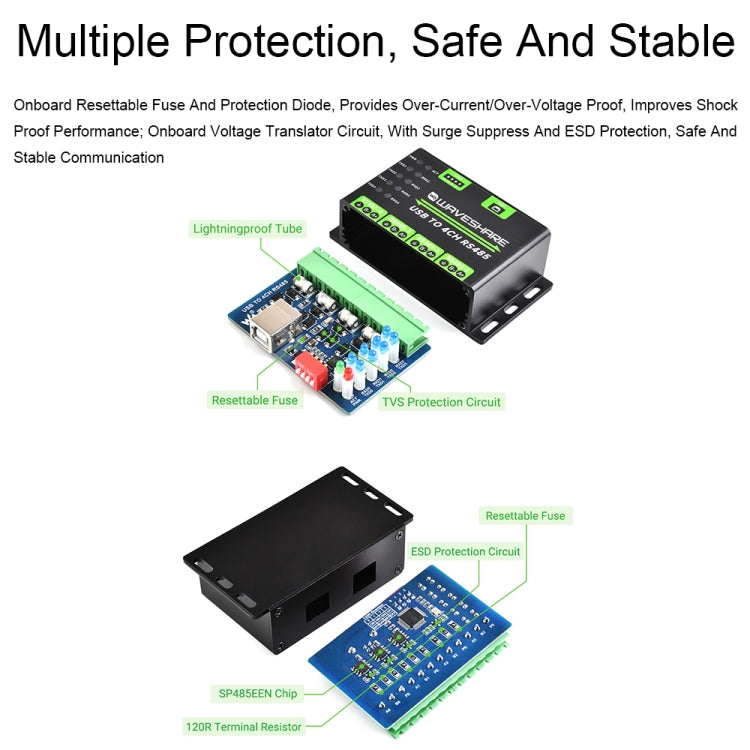

2. Onboard TVS (transient voltage suppressor), effectively suppresses surge voltages and transient peak voltages in the circuit, and protects against lightning and static electricity
3. Onboard self-restoring fuse and protection diode ensure stable current/voltage output, provide over-current/over-voltage protection, and improve shock-proof performance

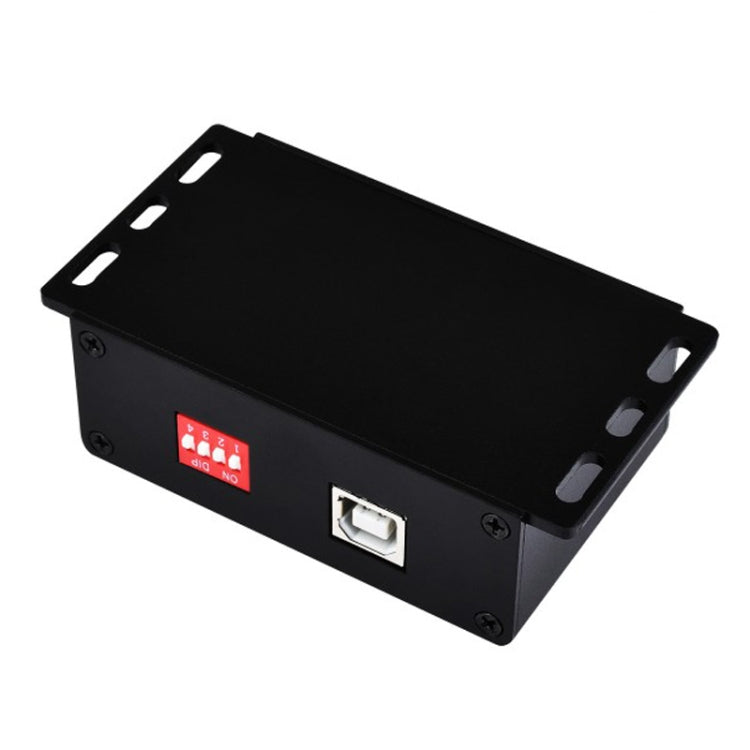

4. Onboard RS485 output terminal 120R resistor, enabled/disabled by DIP switch
5. Aluminum alloy shell, oxidized matte surface, CNC process opening, sturdy and durable, excellent workmanship

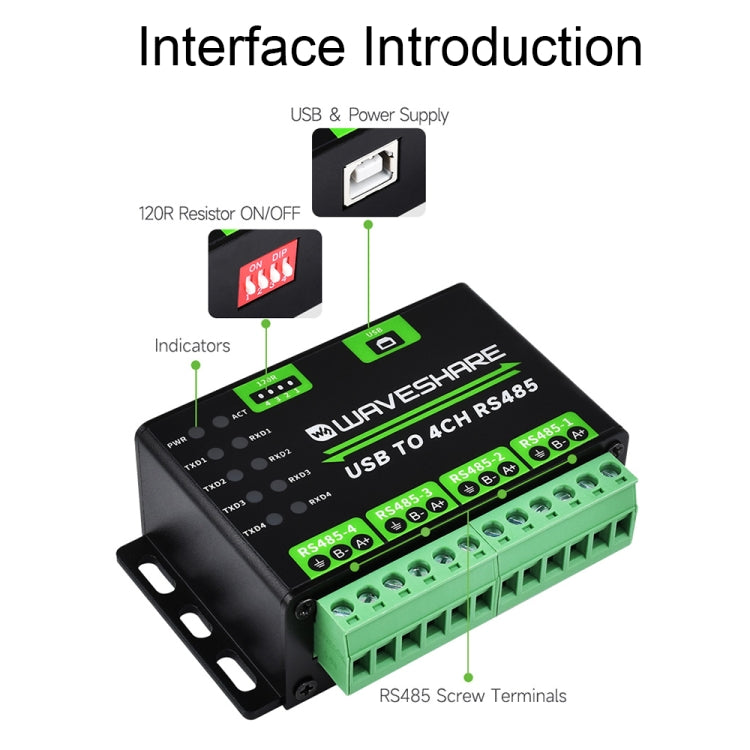

Product parameters:
1. Host port: USB
2. Device interface: RS485
3. Baud rate: 1200bps-460800bps
4. USB:
Working voltage: 5V
Connector: USB-B
Protection: 500mA resettable fuse, ESD protection
Transmission distance: about 5m

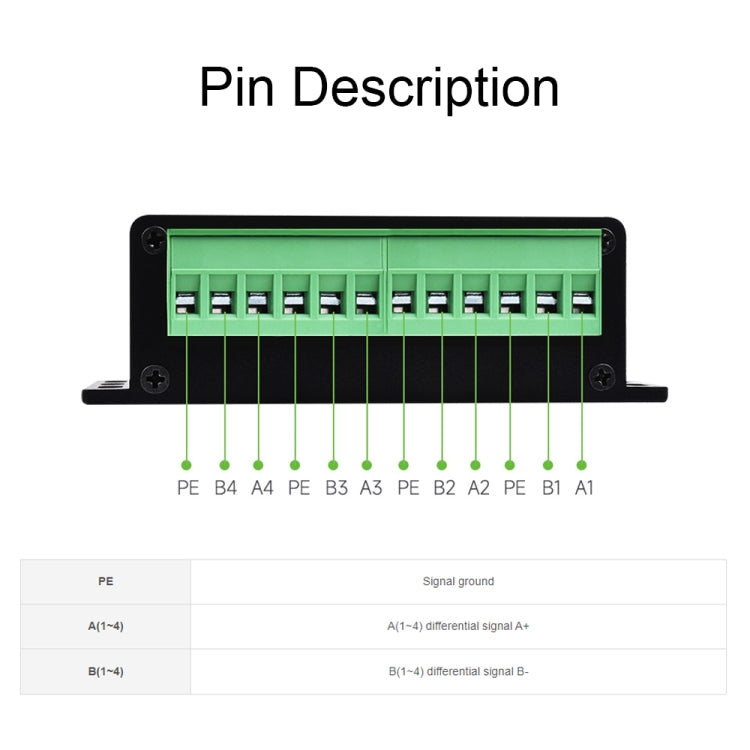

5.RS485
Connector: screw terminal
Protection: 600W lightning surge protection, 15KV ESD protection

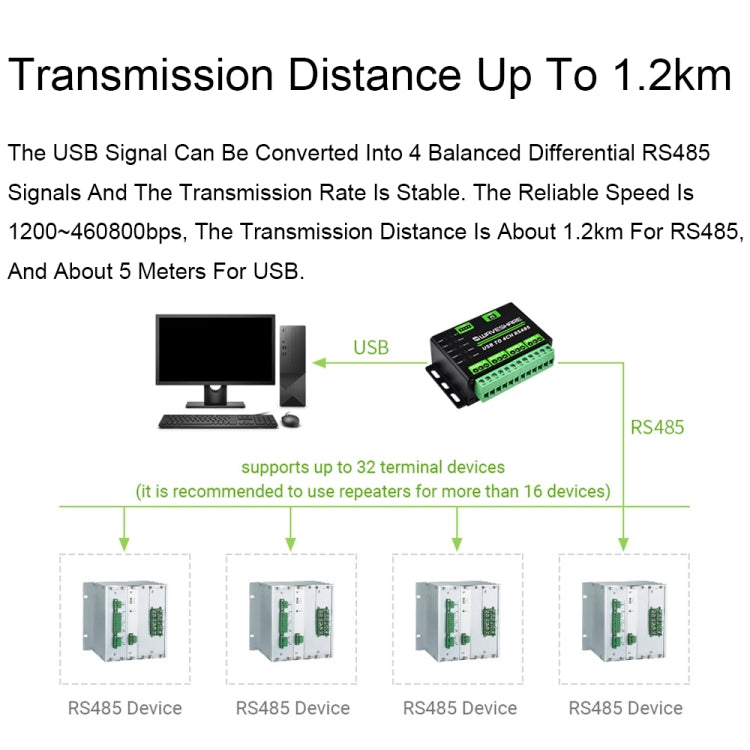

Transmission distance: Maximum communication distance is about 1200m (low speed, turn on 120R resistor)
Transmission method: point-to-multipoint (up to 32 nodes, repeaters are recommended for more than 16 nodes)
6. Temperature: minus 40 degrees Celsius - 85 degrees Celsius
7. Humidity: 5%RH-95%RH
8. Operating system: Win7/8/8.1/10/11, Mac, Linux, Android

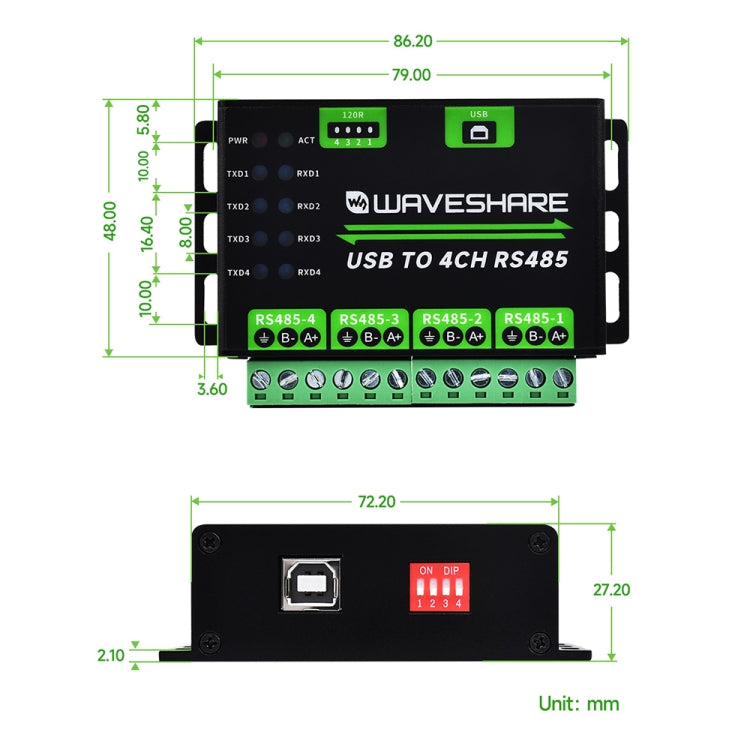

9. Product size: 86.2 x 48 x 27.2mm
10. Weight: 181 grams
Packing list:
-USB to 4-way RS485 x1
-USB Type A to Type B cable 1.2m x1
