Description

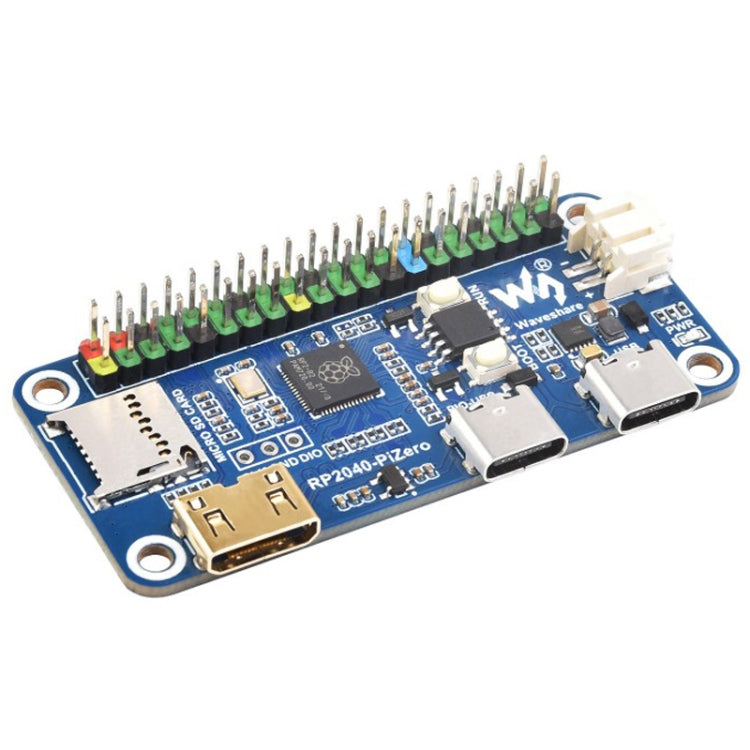

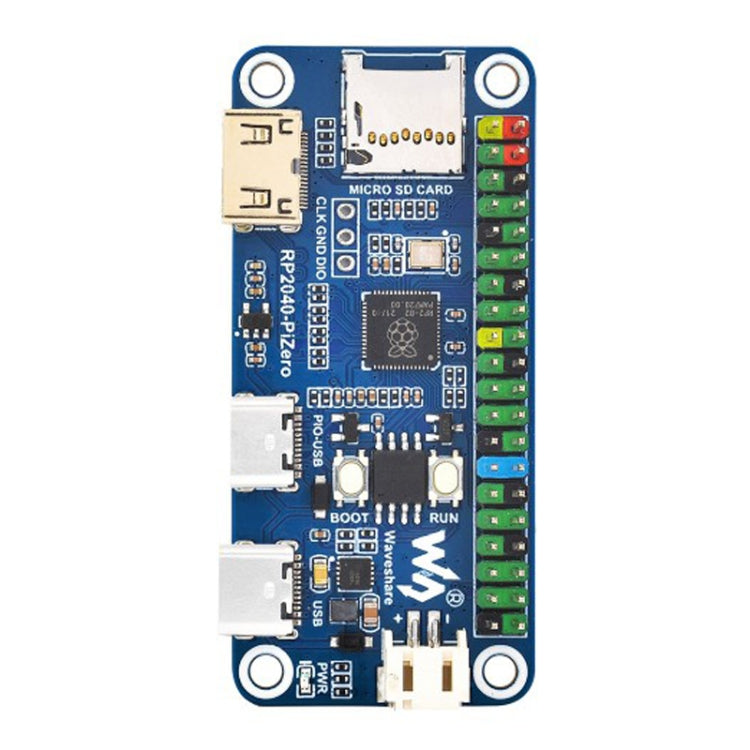

The Waveshare 25506 RP2040-PiZero Development Board is a module designed for development and integration. It is suitable for projects requiring a dual-core ARM Cortex M0+ processor and various I/O capabilities.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi RP2040
- Material: Not specified

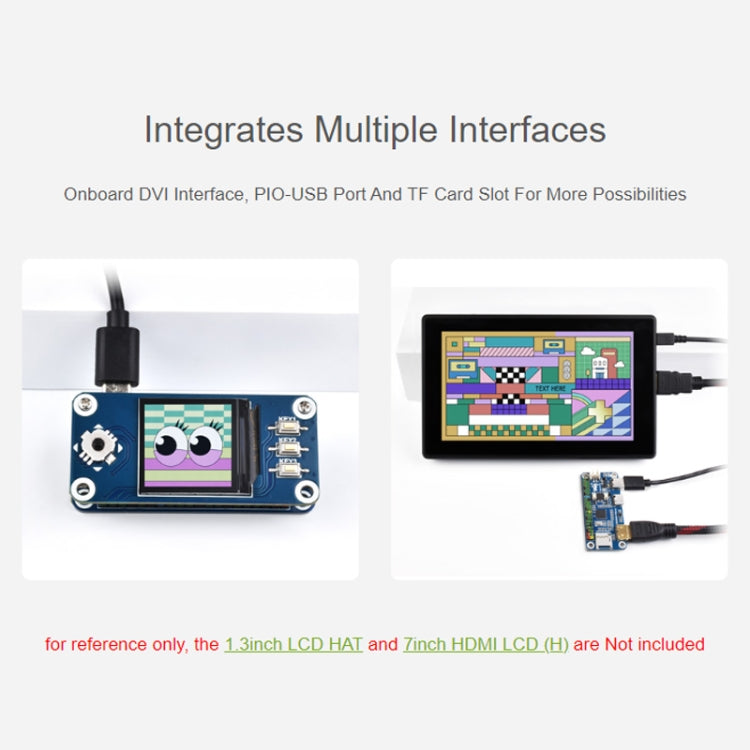

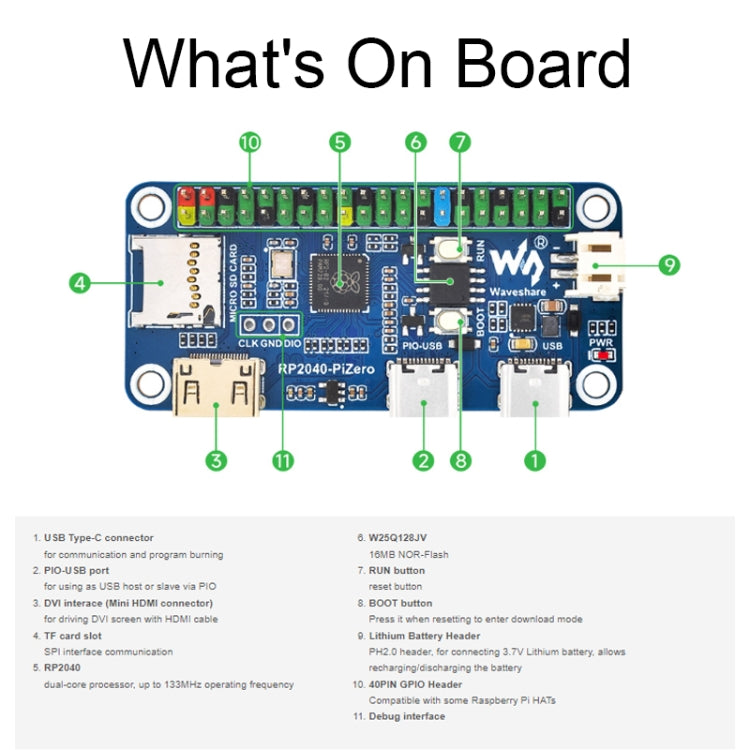

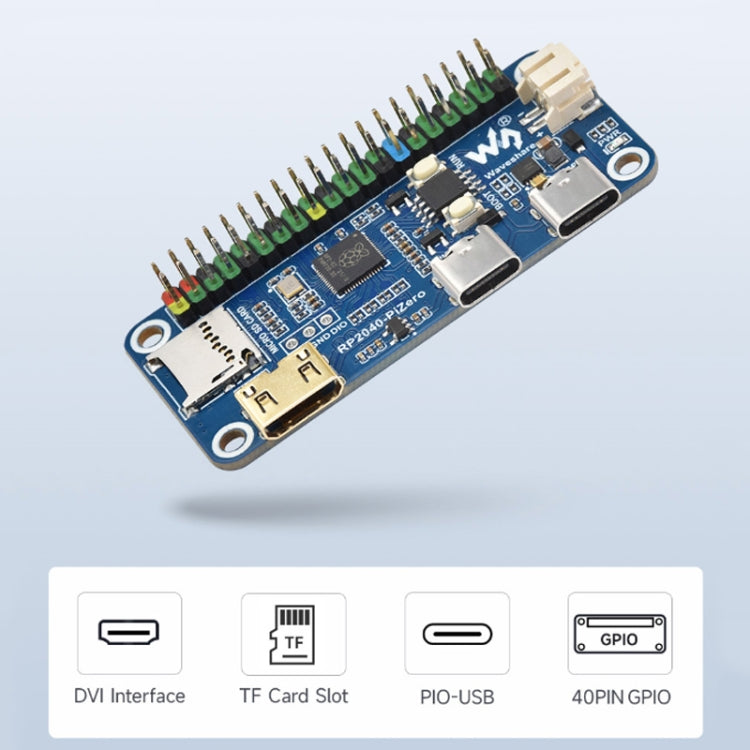

- Key Features: Onboard DVI interface, TF card slot, PIO-USB port
- Processor: RP2040 microcontroller chip
- Processor Type: Dual-core ARM Cortex M0+
- Clock Speed: Up to 133 MHz
- Memory: 264KB SRAM, 16MB onboard Flash memory
- Onboard DVI Interface: Drives most HDMI screens (DVI compatibility required)
- USB Support: USB host or slave via onboard PIO-USB port
- TF Card Slot: For reading and writing TF cards
- Battery Header: Onboard Lithium battery recharge/discharge header
- USB Version: USB 1.1 with device and host support
- Programming: Drag-and-drop programming using mass storage over USB
- Power Modes: Low-power sleep and dormant modes

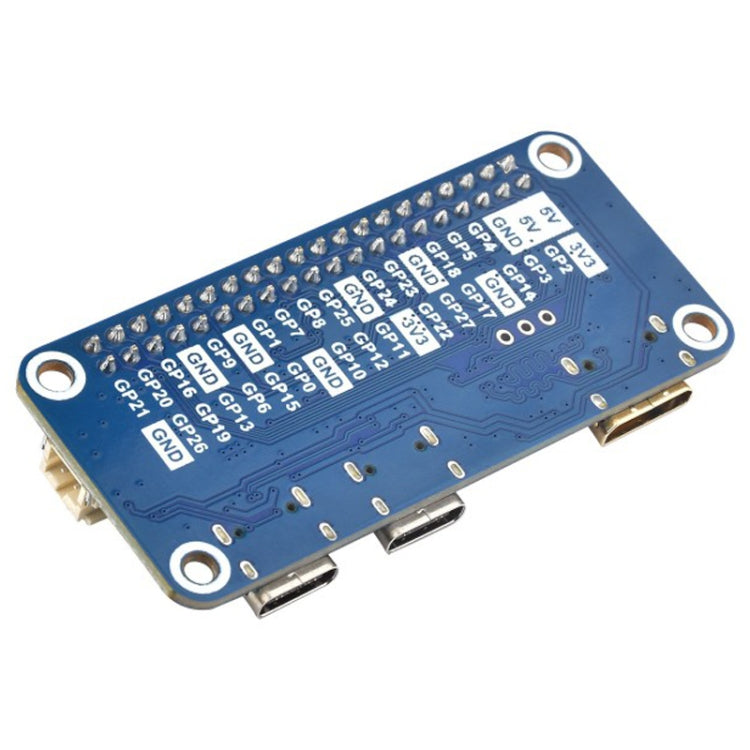

- I/O Capabilities: 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Clock and Timer: Accurate clock and timer on-chip
- Temperature Sensor: Integrated temperature sensor
- Floating-Point Libraries: Accelerated floating-point libraries on-chip
- PIO State Machines: 8 × Programmable I/O (PIO) state machines

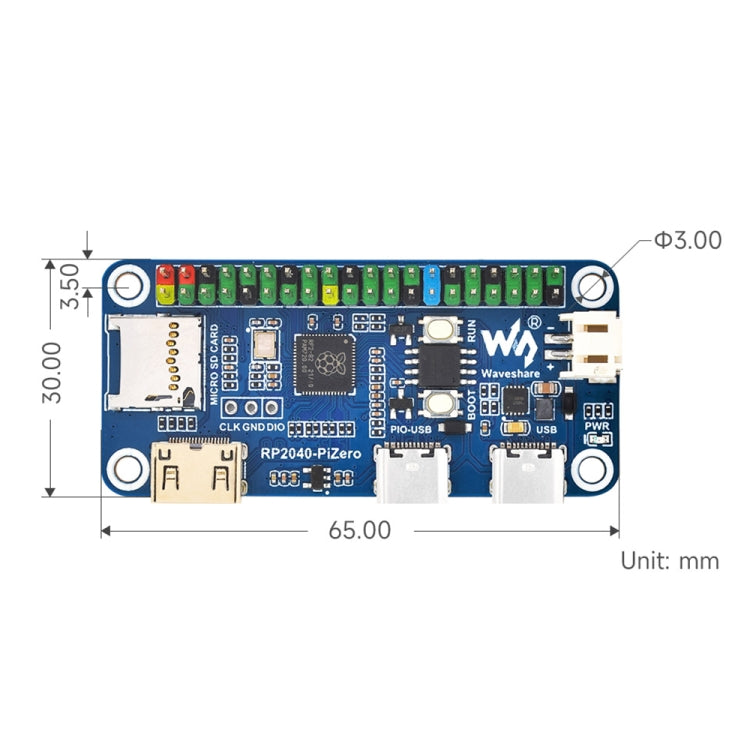

- Product Size: 65 x 30 mm
- Weight: 12 grams
