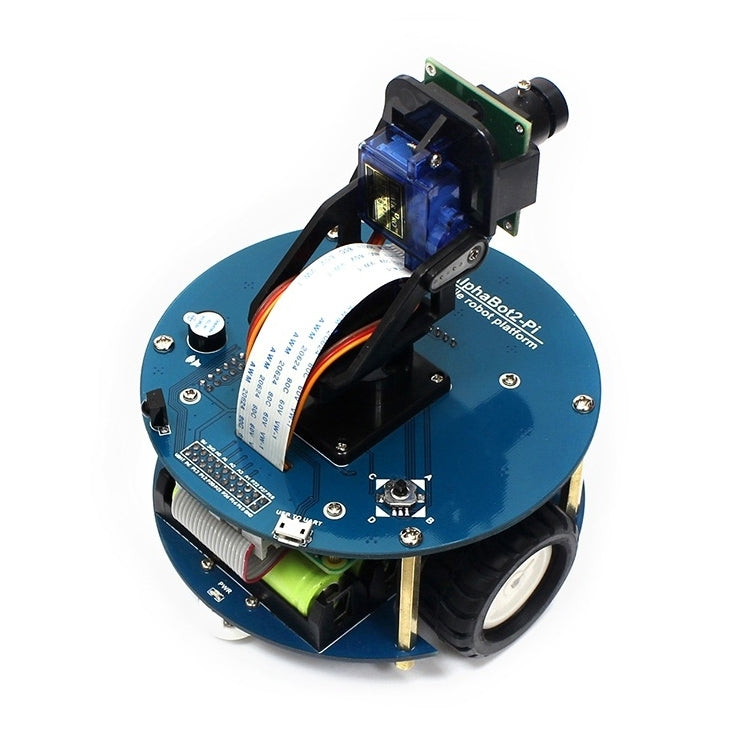

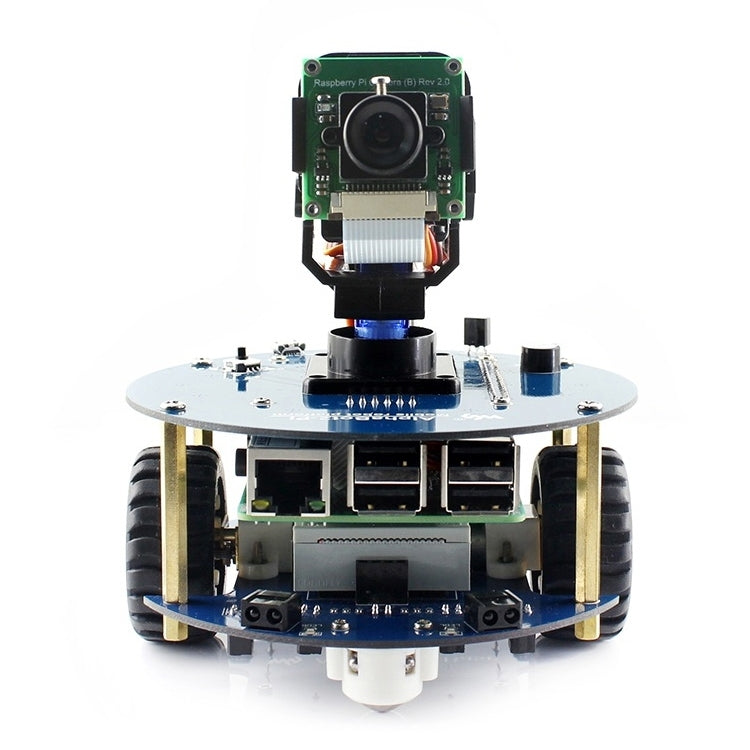

Waveshare AlphaBot2 robot building kit for Raspberry Pi 3 Model B
Waveshare AlphaBot2 robot building kit for Raspberry Pi 3 Model B
Sale
Sold out
Pre-order
Regular price
R 4,819.00
Regular price
Sale price
R 4,819.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
⚠️ Import Notice: Import duties and taxes may apply. You'll be responsible for any customs charges.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Compatibility: Raspberry Pi 3 Model B
• Material: Various
• Key feature: Easy assembly with modular design
• Color/Variant: N/A
• Intended use: Robotics projects
• Category: Electronics Module

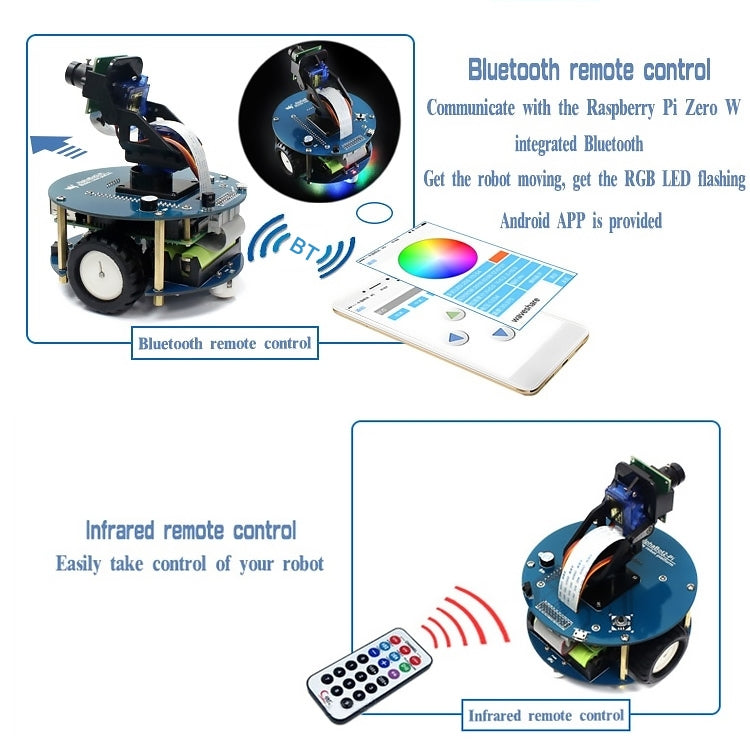

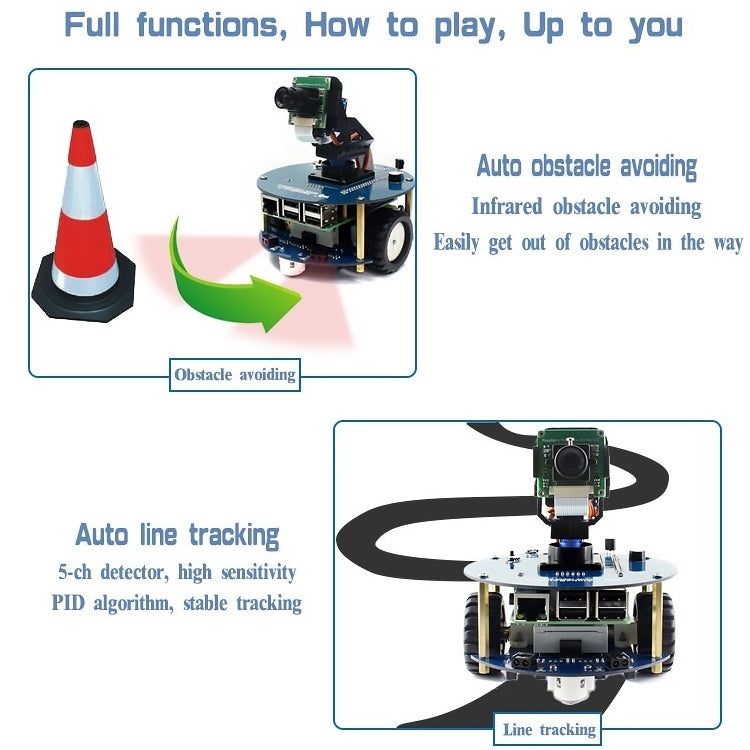

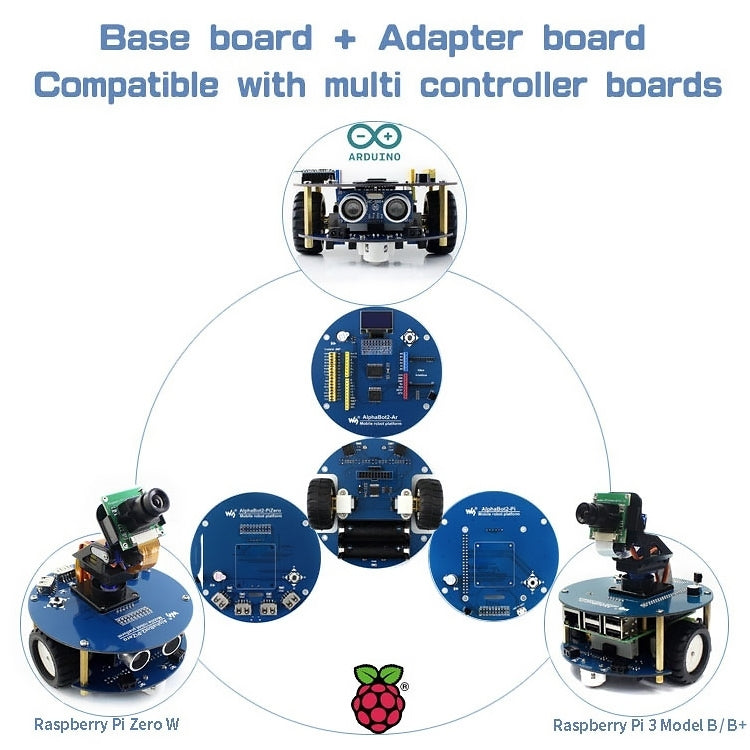

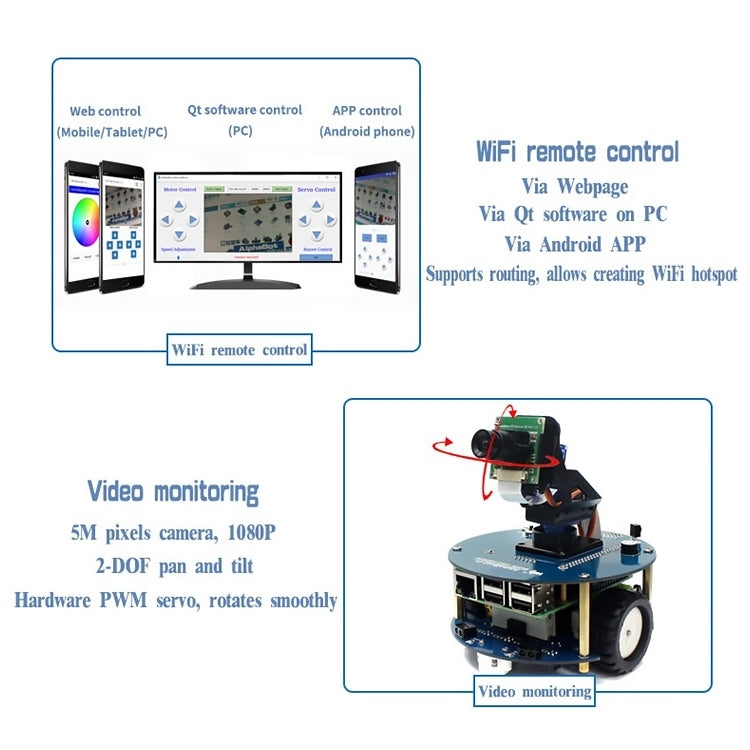

OverviewThis AlphaBot2 robot kit is designed to use with Raspberry Pi 3 Model B. It features rich common robot functions including line tracking, obstacle avoiding, Bluetooth/infrared/WiFi remote control, video monitoring, etc.Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.Raspberry Pi 3 Features1. BCM2837, 1.2GHz 64-bit quad-core ARM Cortex-A532. 1GB RAM3. 10/100 Ethernet port4. 802.11n WiFi NIC5. Bluetooth 4.1 & Bluetooth Low Energy (BLE)6. HDMI port7. USB 2.0 interface x 48. Micro SD card slot9. Combined 3.5mm audio jack and composite video10. 40-pin GPIO interface11. Camera interface (CSI)12. Display interface (DSI)13. Upgraded power management, supports more peripherals (requires a 2.5A power supply or above)AlphaBot2 FeaturesAlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.AlphaBot2-Base, the lower base chassis:1. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking2. Onboard modules like line tracking, obstacle avoiding, needs no messy wiring3. TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating4. N20 micro gear motor, with metal gears, low noise, high accuracy5. 5Onboard RGB LEDs, true color lighting, pretty coolAlphaBot2-Pi, the upper adapter board for controller:1. LM2596 voltage regulator, provides the Pi with stable 5V power2. TLC1543 AD acquisition chip, allows the Pi to use analog sensors3. PCA9685 servo controller, make it more smoothly to rotate the pan head4. CP2102 UART converter, easy for controlling the Pi via UARTPackage Contents1. AlphaBot2-Pi (adapter board) x12. AlphaBot2-Base (base chassis) x13. RPi Camera (B) x14. Micro SD Card 16GB x15. Power adapter US standard 5V/3A micro x16. SG90 servo x25. 2 DOF pan and tilt kit x17. IR remote controller x18. FC-20P cable 8cm x19. USB type A plug to micro B plug cable x110. 15PIN FFC 25cm x111. AlphaBot2-Pi screws x112. Micro SD Card Reader x1 (Extra Free)13. Screwdriver x1 (Extra Free)
• Compatibility: Raspberry Pi 3 Model B
• Material: Various
• Key feature: Easy assembly with modular design
• Color/Variant: N/A
• Intended use: Robotics projects
• Category: Electronics Module
OverviewThis AlphaBot2 robot kit is designed to use with Raspberry Pi 3 Model B. It features rich common robot functions including line tracking, obstacle avoiding, Bluetooth/infrared/WiFi remote control, video monitoring, etc.Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.Raspberry Pi 3 Features1. BCM2837, 1.2GHz 64-bit quad-core ARM Cortex-A532. 1GB RAM3. 10/100 Ethernet port4. 802.11n WiFi NIC5. Bluetooth 4.1 & Bluetooth Low Energy (BLE)6. HDMI port7. USB 2.0 interface x 48. Micro SD card slot9. Combined 3.5mm audio jack and composite video10. 40-pin GPIO interface11. Camera interface (CSI)12. Display interface (DSI)13. Upgraded power management, supports more peripherals (requires a 2.5A power supply or above)AlphaBot2 FeaturesAlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.AlphaBot2-Base, the lower base chassis:1. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking2. Onboard modules like line tracking, obstacle avoiding, needs no messy wiring3. TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating4. N20 micro gear motor, with metal gears, low noise, high accuracy5. 5Onboard RGB LEDs, true color lighting, pretty coolAlphaBot2-Pi, the upper adapter board for controller:1. LM2596 voltage regulator, provides the Pi with stable 5V power2. TLC1543 AD acquisition chip, allows the Pi to use analog sensors3. PCA9685 servo controller, make it more smoothly to rotate the pan head4. CP2102 UART converter, easy for controlling the Pi via UARTPackage Contents1. AlphaBot2-Pi (adapter board) x12. AlphaBot2-Base (base chassis) x13. RPi Camera (B) x14. Micro SD Card 16GB x15. Power adapter US standard 5V/3A micro x16. SG90 servo x25. 2 DOF pan and tilt kit x17. IR remote controller x18. FC-20P cable 8cm x19. USB type A plug to micro B plug cable x110. 15PIN FFC 25cm x111. AlphaBot2-Pi screws x112. Micro SD Card Reader x1 (Extra Free)13. Screwdriver x1 (Extra Free)
