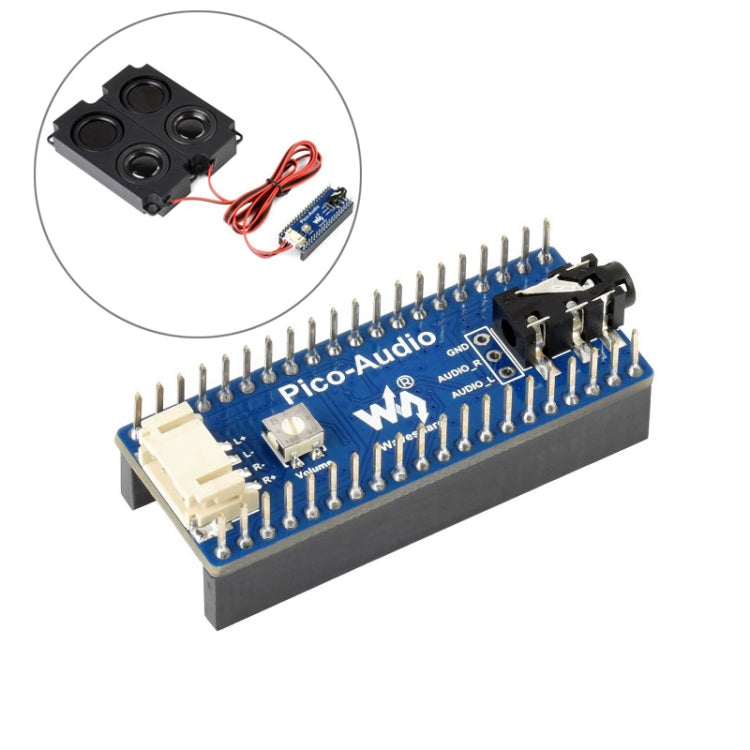

Waveshare Audio Expansion Module for Raspberry Pi Pico, Concurrently Headphone / Speaker Output

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi Pico
• Material: PCM5101A
• Key feature: Concurrent headphone and speaker output
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module

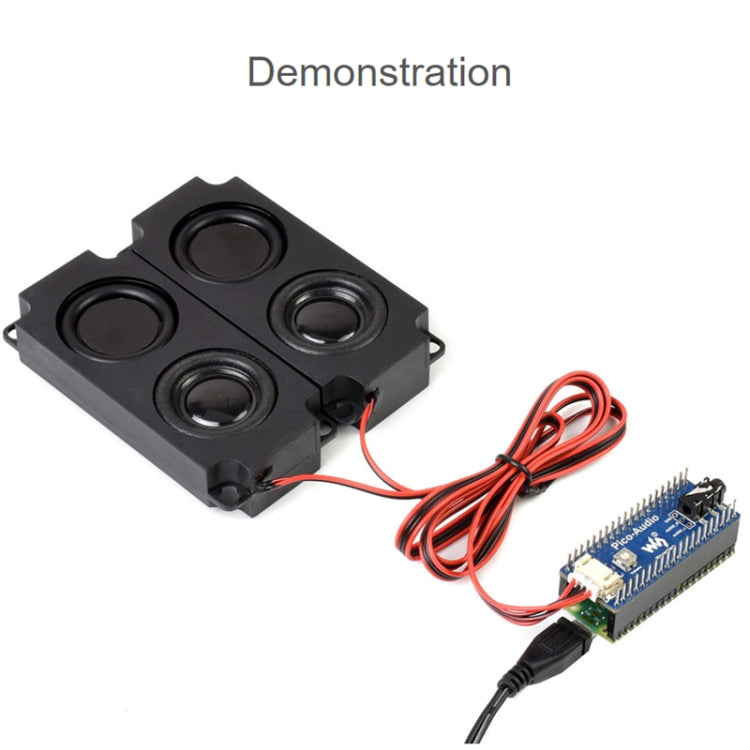

FeaturesThe Pico-Audio is an audio expansion module designed for Raspberry Pi Pico, which incorporates PCM5101A low power stereo decoder, and uses I2S bus for transmitting audio signal. It supports wide range audio sampling rate, allows headphone and speaker signal output at the same time. 1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series 2. Standard 3.5mm audio jack, for connecting external headphone 3. Dual channels speaker headers, for direct driving speakers 4. 8~384000Hz audio sampling rate 5. Stereo sound effect output 6. Using 3-wire I2S, effectively reducing EMI 7. Come with development resources and manual (Raspberry Pi Pico audio play code, sound card code)Specification1. Operating voltage: 5V 2. Logic level: 3.3V 3. Audio decoder: PCM5101A 4. Audio BUS: I2S 5. DAC SNR: 106 dB 6. Speaker driving: 2.6W/channel (4ohms BTL)Package List1. Pico-Audio x1 2. 8ohms 5W speaker x1
