Description

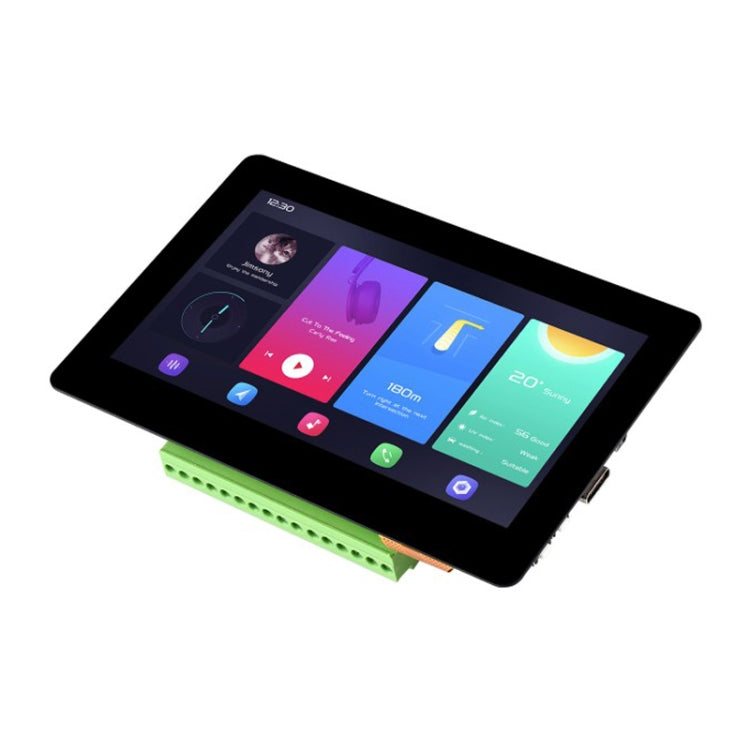

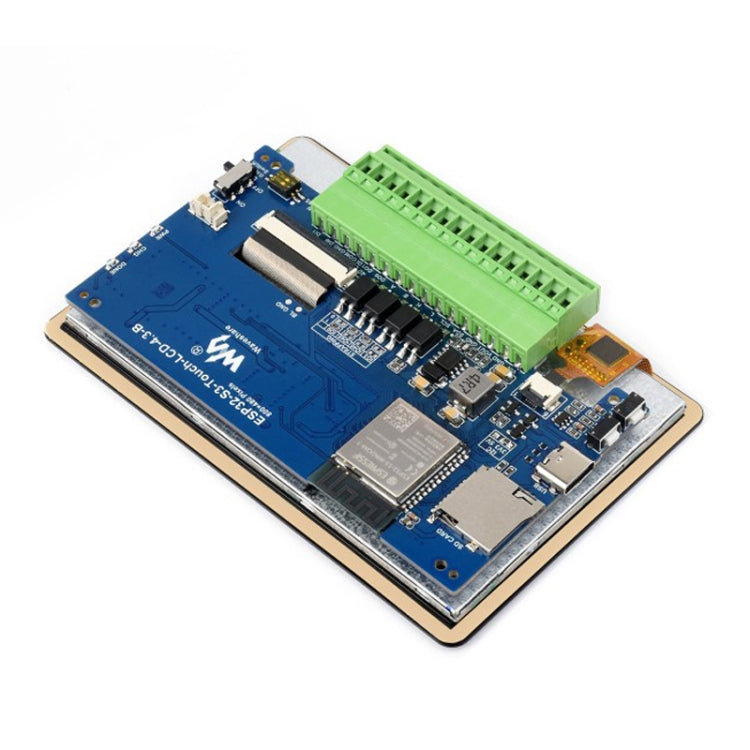

The Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board is a development platform featuring a capacitive touch screen. It is suitable for applications such as human-machine interfaces and GUI development.
- Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz
- Wireless Connectivity: 2.4 GHz Wi-Fi (802.11b/g/n), Bluetooth 5 (LE), onboard antenna
- Memory: 512 KB SRAM, 384 B ROM, 16 MB Flash, 8 MB PSRAM

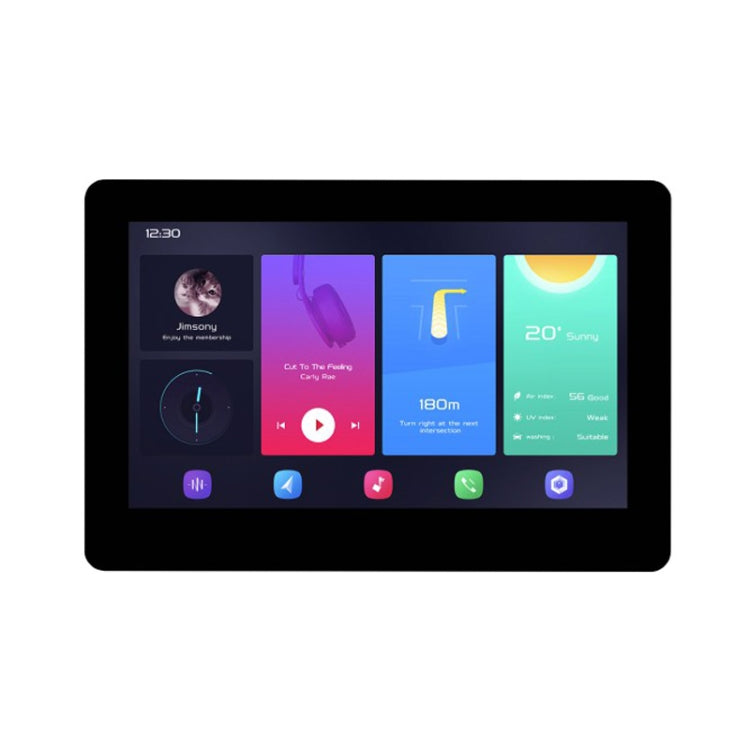

- Display: 4.3-inch capacitive touch screen, 800×480 resolution, 65K colors
- Touch Control: I2C interface, 5-point touch, interrupt support
- Power Supply: 7-36V wide voltage input, onboard voltage regulator chip
- Battery: Onboard RTC chip, rechargeable battery for power-off time retention
- Interfaces: CAN, RS485, I2C, Micro SD card holder, GH1.25 2P battery interface, digital isolation IO
- Input: Bidirectional optocoupler isolation, supports passive and active switch input
- Output: Optocoupler isolation, sink current up to 450mA (MAX)
- LED Indicator: External LED for power and battery charging status
- Power Management: Flexible clock, module power separate setting, multi-scenario low power mode

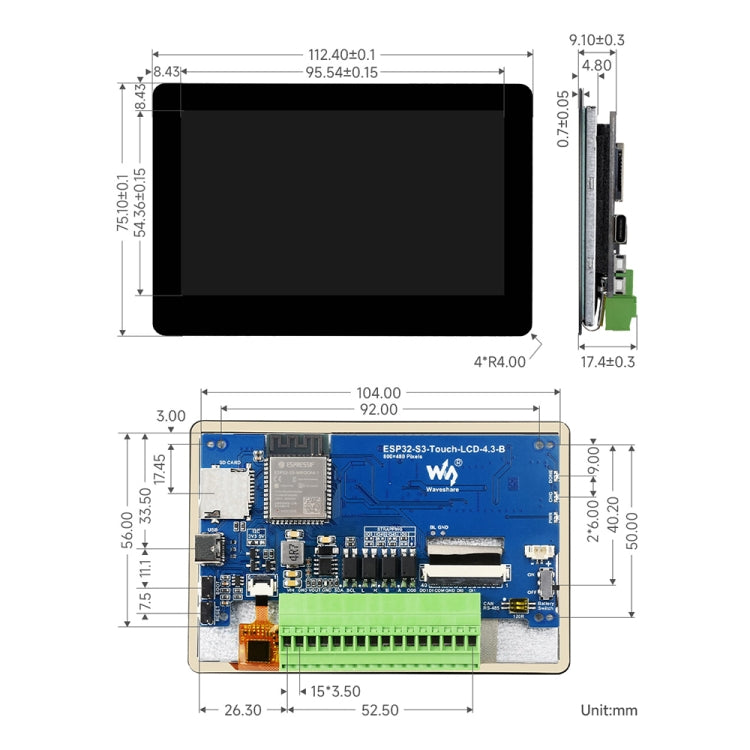

- Dimensions: 112.4 x 75.1 x 17.4 mm, 116.3 x 79 x 18 mm
- Weight: 115 g, 149 g
