Description

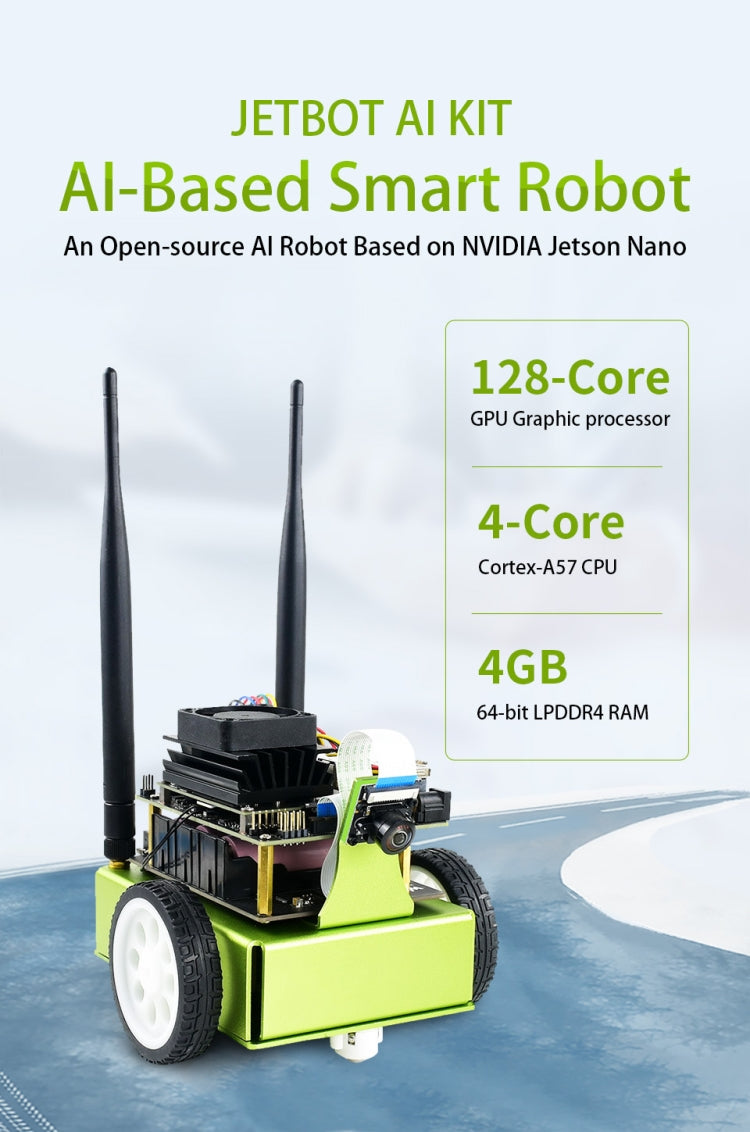

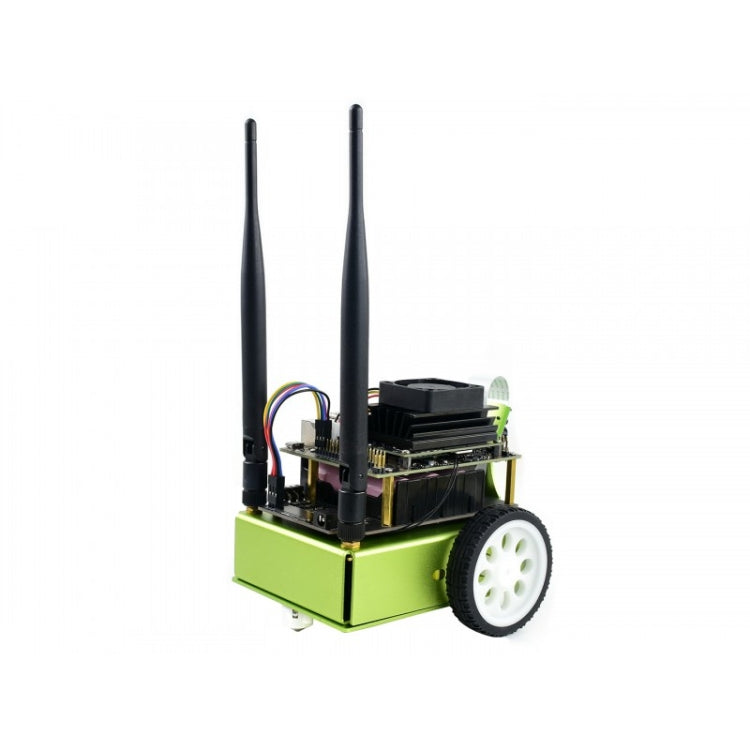

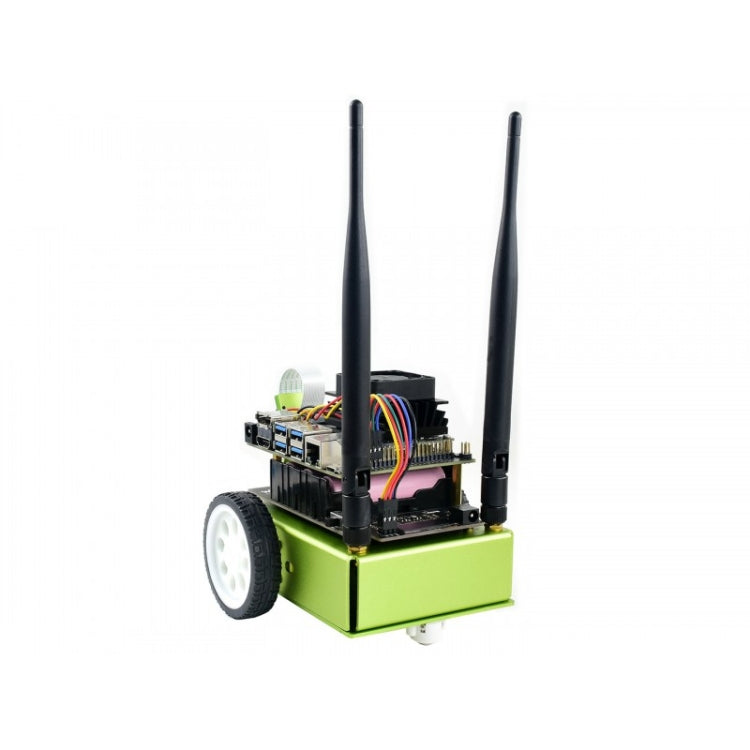

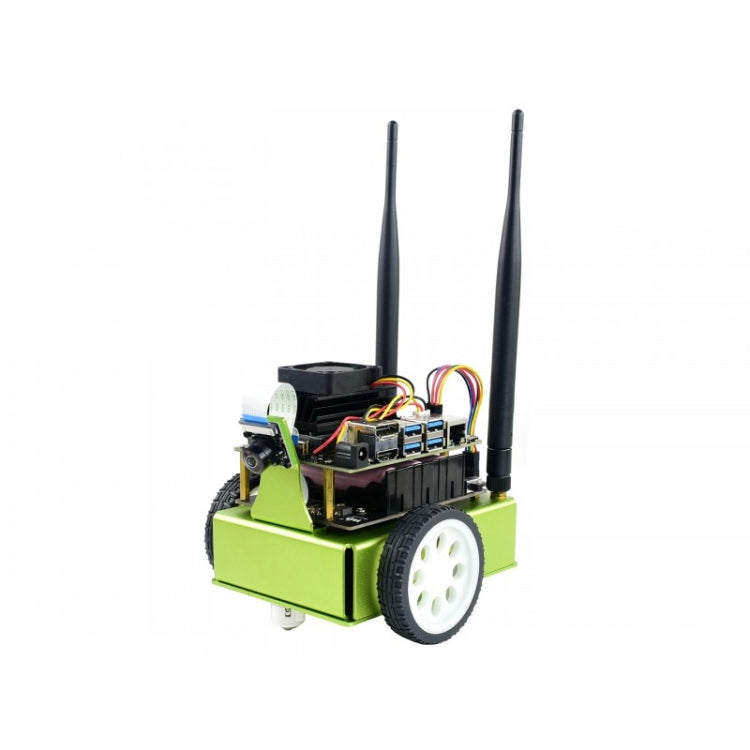

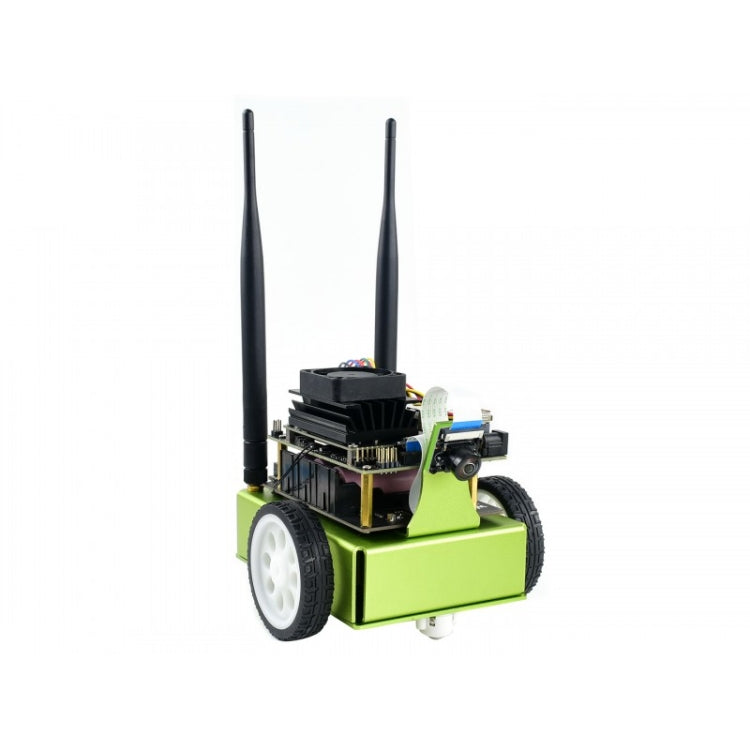

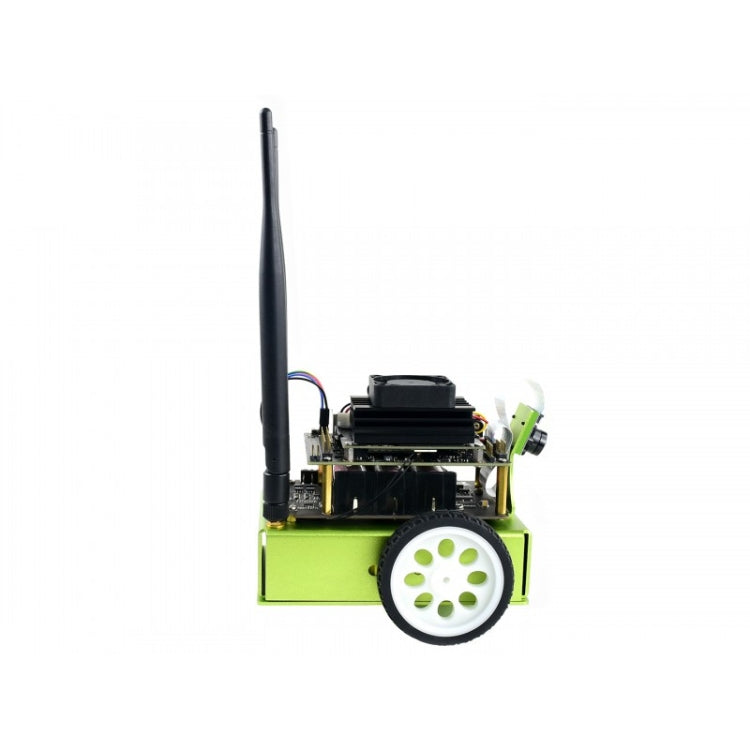

The Waveshare JetBot AI Kit is an AI robot based on the Jetson Nano platform. It is designed for electronic enthusiasts to build smart robots with capabilities such as facial recognition, object tracking, and collision avoidance.

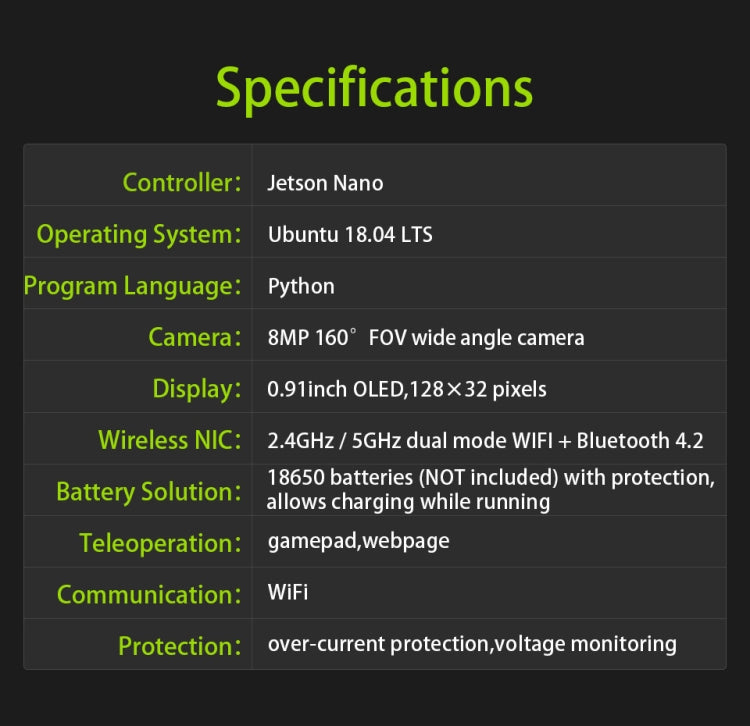

- Primary function: AI robot based on Jetson Nano

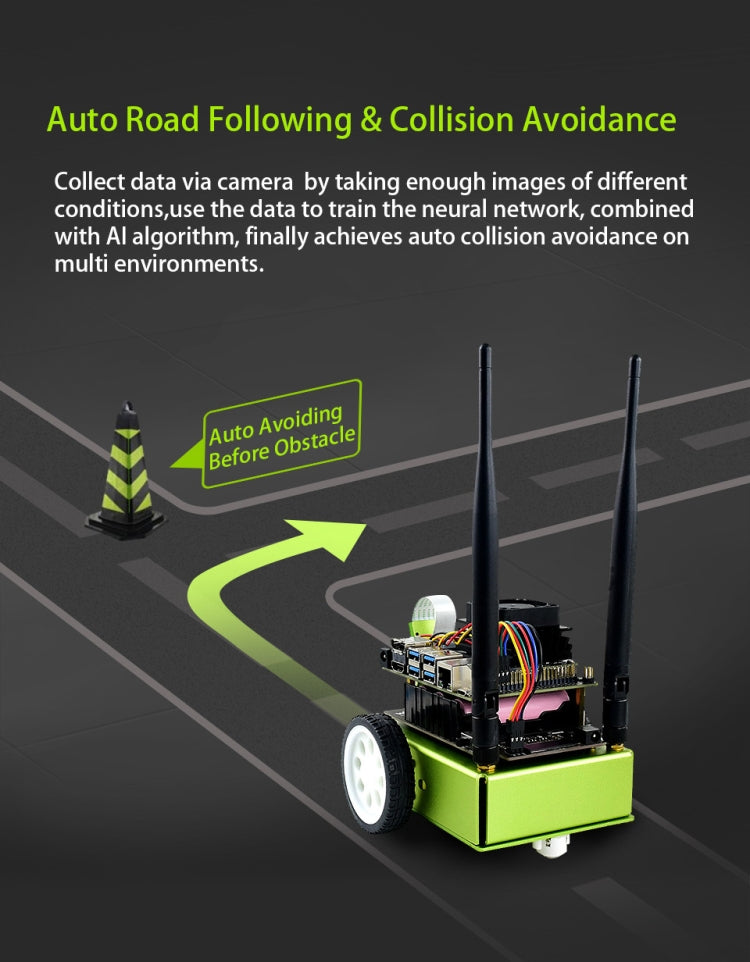

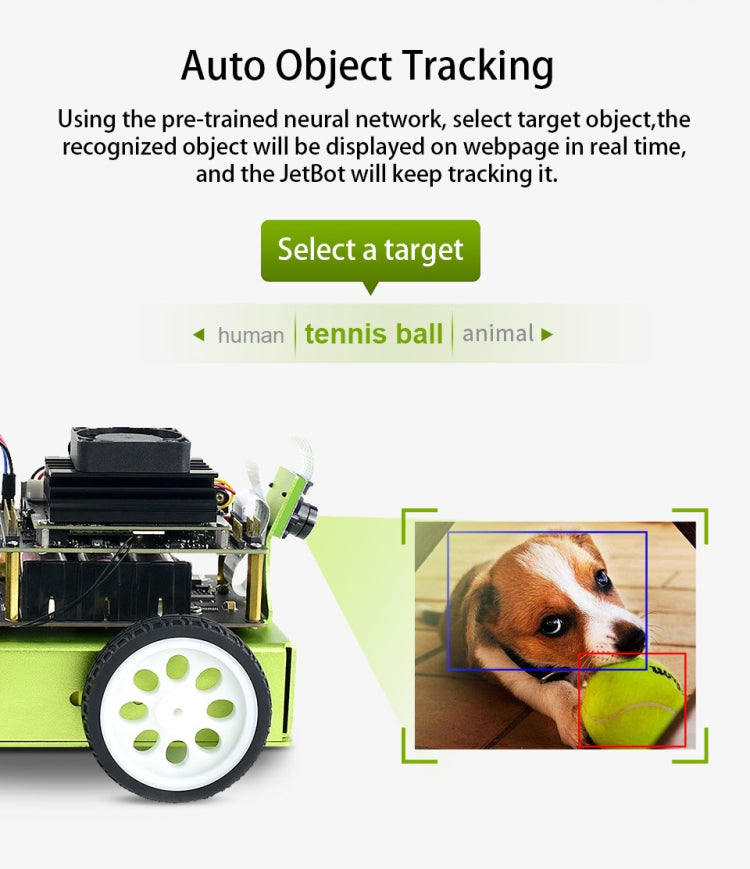

- Facial recognition, object tracking, auto line following, and collision avoidance capabilities
- Power source: 3x 18650 batteries (not included)
- Voltage output: Up to 12.6V
- Battery protection circuit: S-8254AA + AO4407A
- Voltage regulator: Onboard APW7313 providing stable 5V for Jetson Nano
- Motor driver: Onboard TB6612FNG dual H-bridge
- Display: 0.91 inch OLED, 128×32 pixels for IP address, RAM, battery life
- Battery monitoring: Onboard ADS1115 AD acquisition chip
- Weight: 1029g

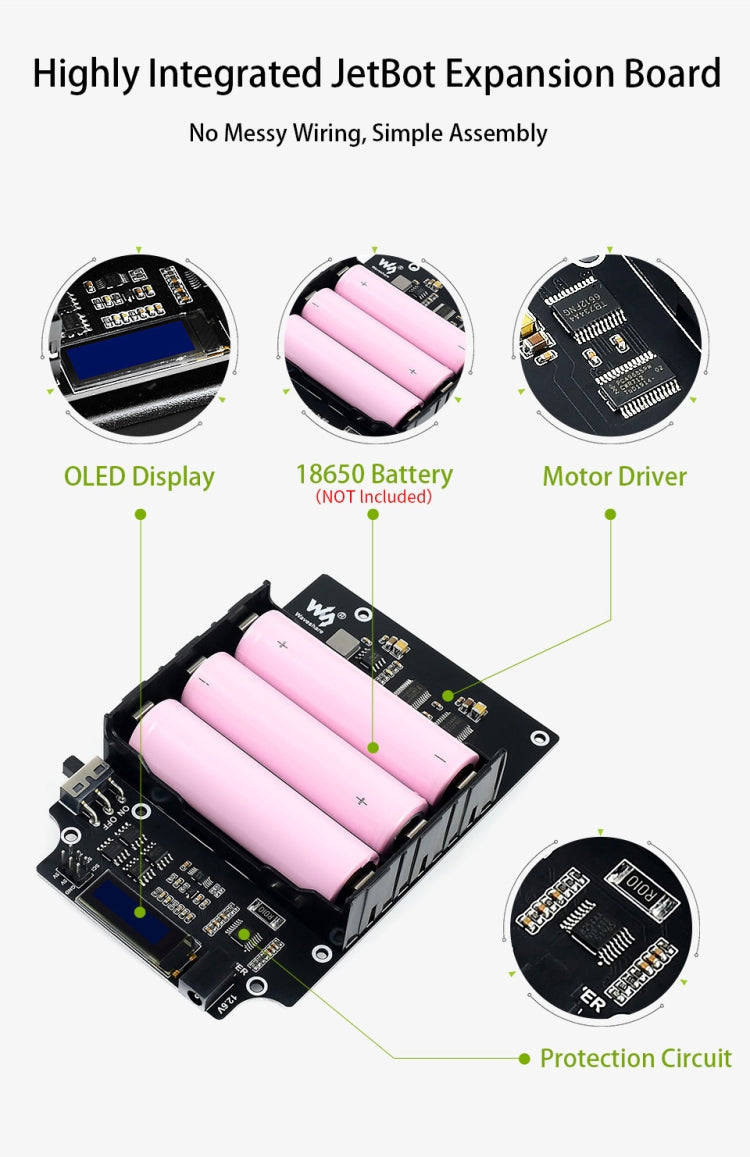

- Expansion board components: S-8254AA, ADS1115, AO4407A, APW7313, PCA9685, TB6612FNG, 0.91 inch OLED
- Battery charger input for 3x 18650 batteries

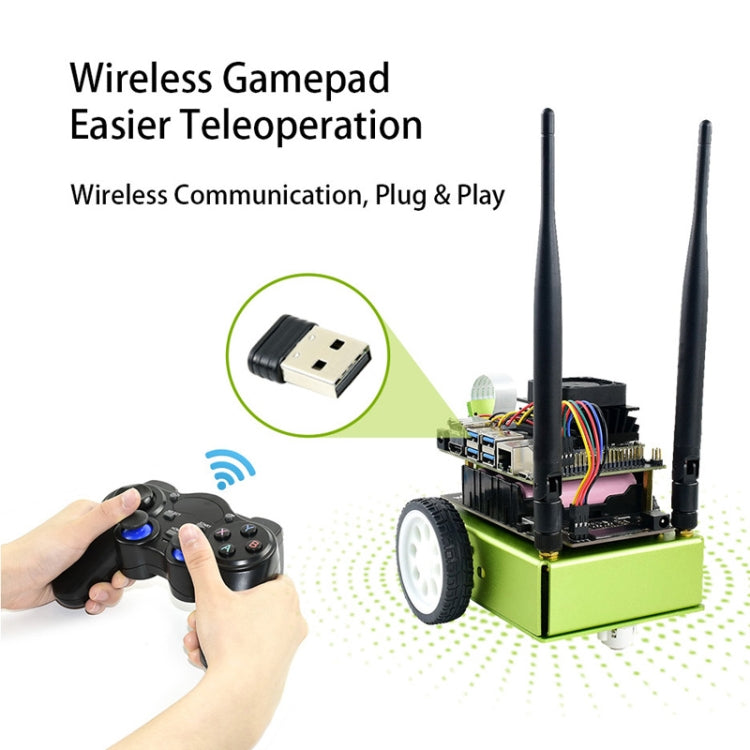

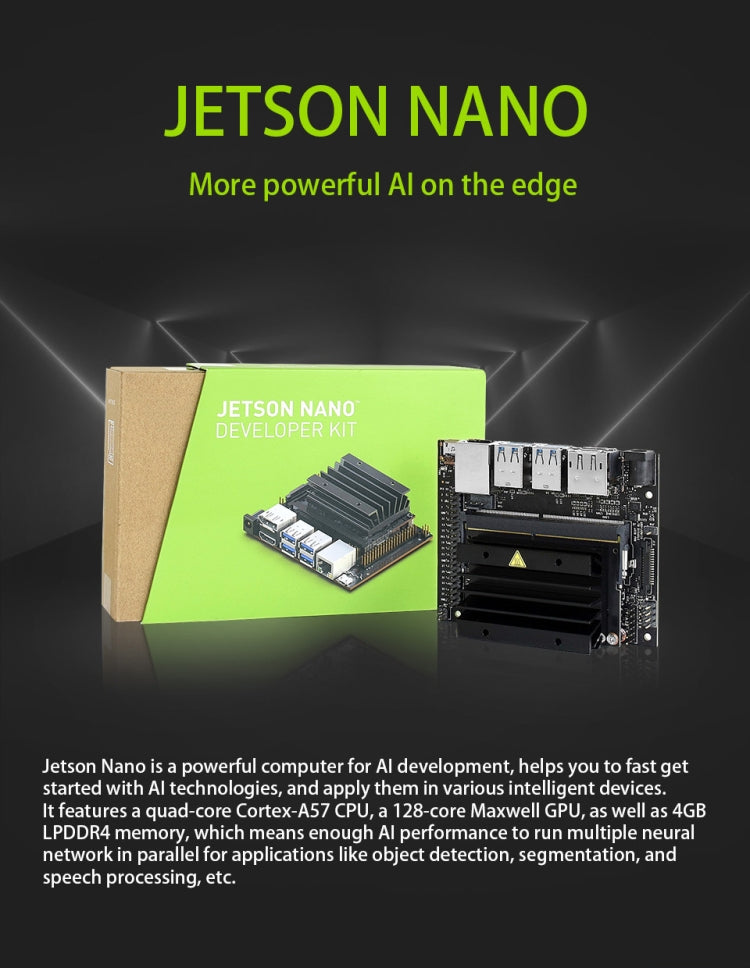

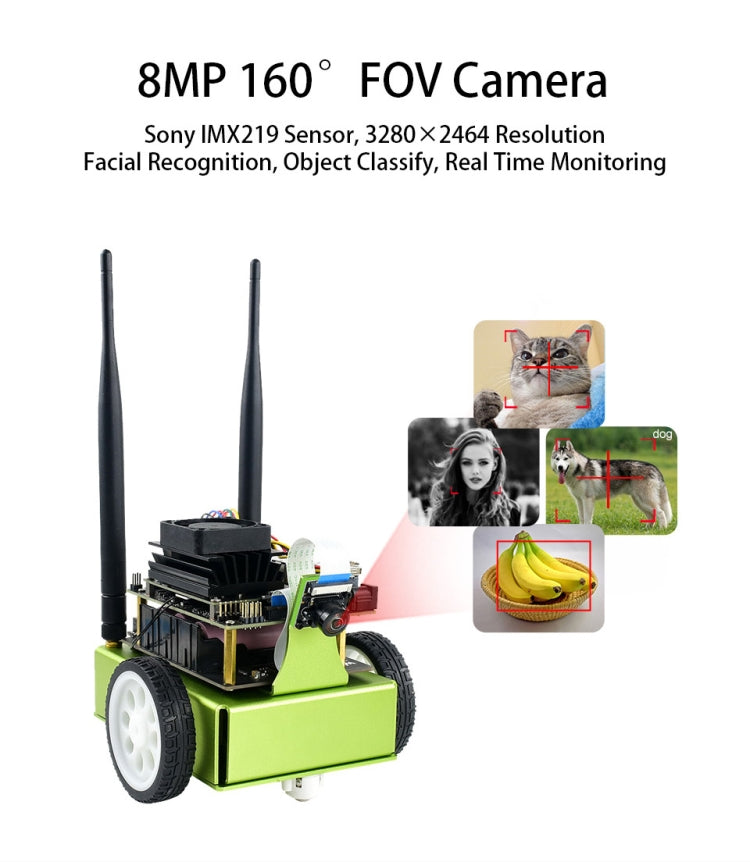

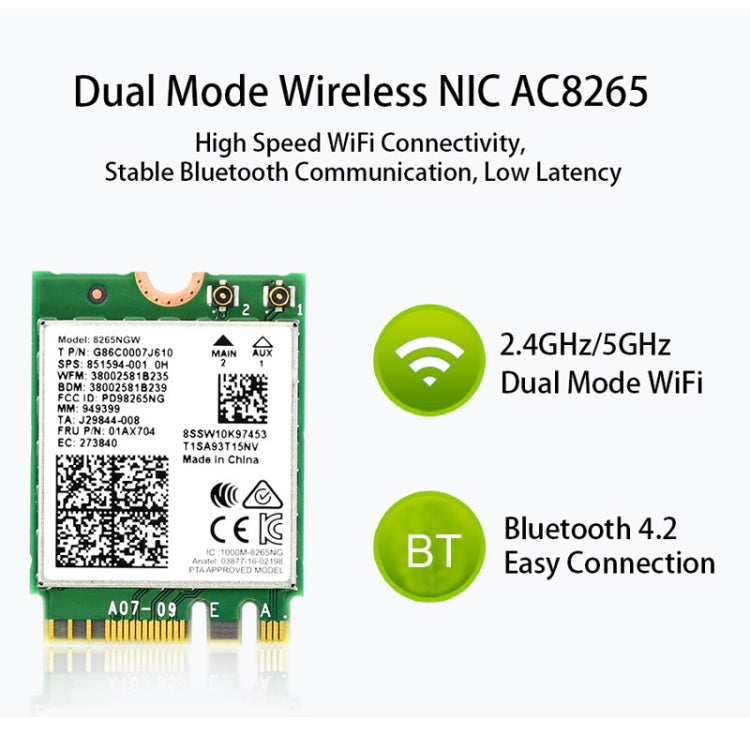

- Includes: Jetson Nano Developer Kit, Micro SD Card 64GB, metal box, camera holder, acrylic piece, Jetbot expansion board, IMX219-160 Camera, Wireless-AC8265, 2 motors, 2 wheels, 2 omni-direction wheels, power adapter (EU head), 12.6V battery charger, wireless gamepad, screwdriver, 6Pin 9cm cable, screws pack, spanner, cooling fan, micro SD card reader
