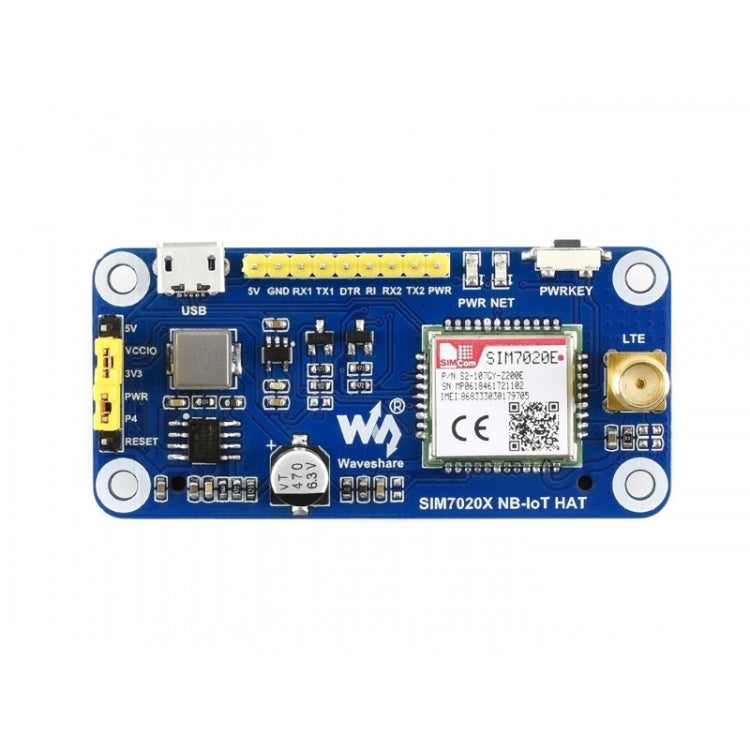

Waveshare NB-IoT HAT for Raspberry Pi, for Europe, Asia, Africa, Australia
Waveshare NB-IoT HAT for Raspberry Pi, for Europe, Asia, Africa, Australia
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R200.75/mo 3 months
- R101.51/mo 6 months
- R53.57/mo 12 months
- From R200.75/month over 3 months, or as low as R53.57/month over 12. Total repayable over 12 months: R642.84. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
NB-IoT HAT for Raspberry Pi provides NB-IoT connectivity for IoT applications. It is suitable for intelligent instruments, asset tracking, and remote monitoring.
- Product Type: Modules Expansions Accessories
- Compatibility: Raspberry Pi (any revision)
- Material: Not specified
- Key Feature: NB-IoT connectivity
- Color/Variant: Not specified
- Intended Use: IoT applications
- Category: Electronics Module
- Based on SIM7020E, supports bands B1/B3/B5/B8/B20/B28
- Applicable Regions: Europe, Asia, Africa, Australia
- Communication Protocols: LWM2M, COAP, MQTT, TCP, UDP, HTTP, HTTPS
- Onboard USB interface for power supply or debugging
- Breakout UART control pins for connection with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, switchable to 5V via jumper

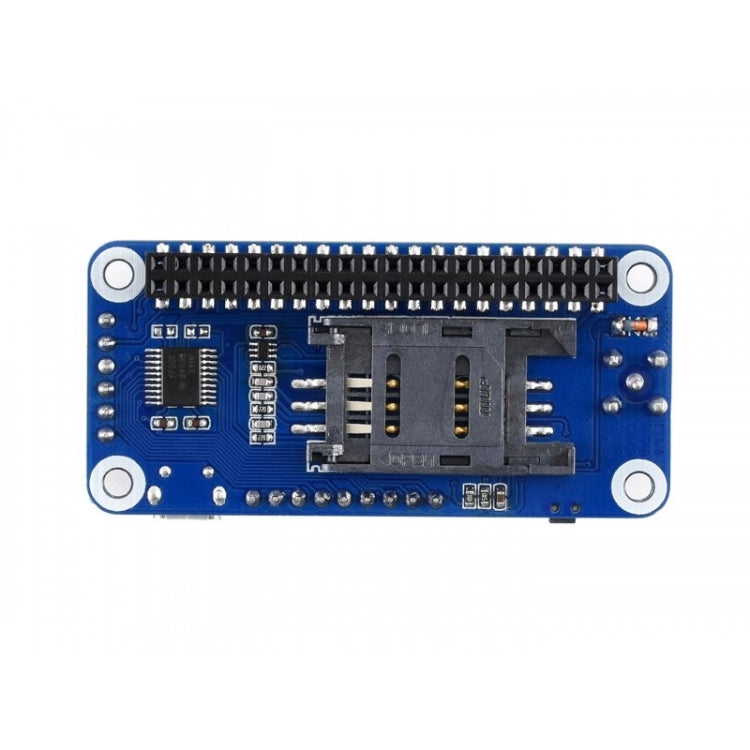

- SIM card slot for NB-IoT specific card
- 2x LED indicators for monitoring working status
- Baudrate: 300bps to 921600bps (115200bps by default)
- Control via AT commands (V.25TER, 3GPP TS 27.007, SIMCOM AT Commands)
- Development resources and manual included (examples for Raspberry Pi/Arduino/STM32/Python)
- Power Supply: 5V
- Logic Level: 5V/3.3V (3.3V by default)
- Overall Current (idle mode): ~18mA
- Single Module Current: Idle mode: 5.6mA, Sleep mode: 0.4mA, PSM mode: 5uA, eDRX mode: 70uA (eDRX=655.36s)

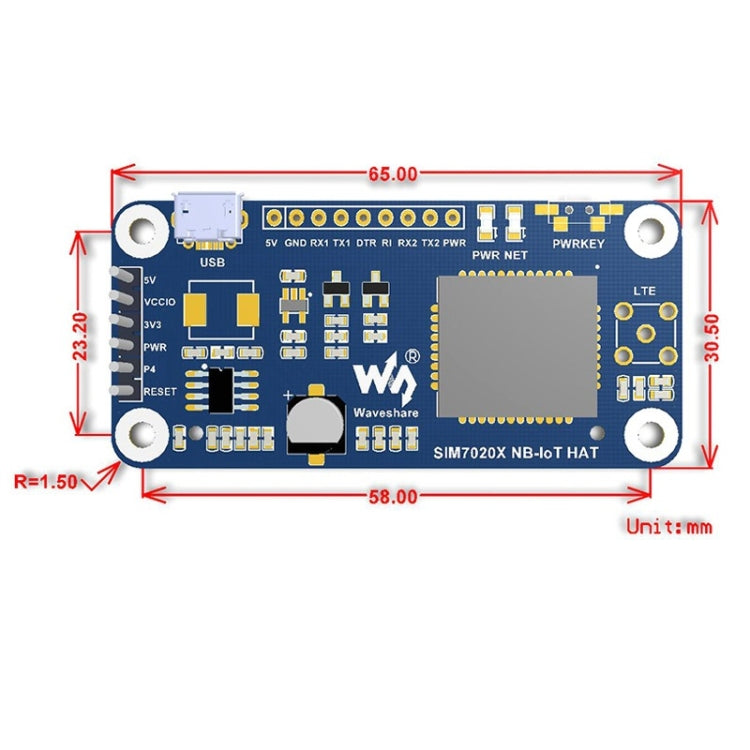

- Dimensions: 30.5mm x 65.0mm
- Package Contents: 1x SIM7020E NB-IoT HAT, 1x Antenna, 1x USB type A plug to micro plug cable, 1x RPi screws pack (2pcs)
- Note: Raspberry Pi is NOT included
