Description

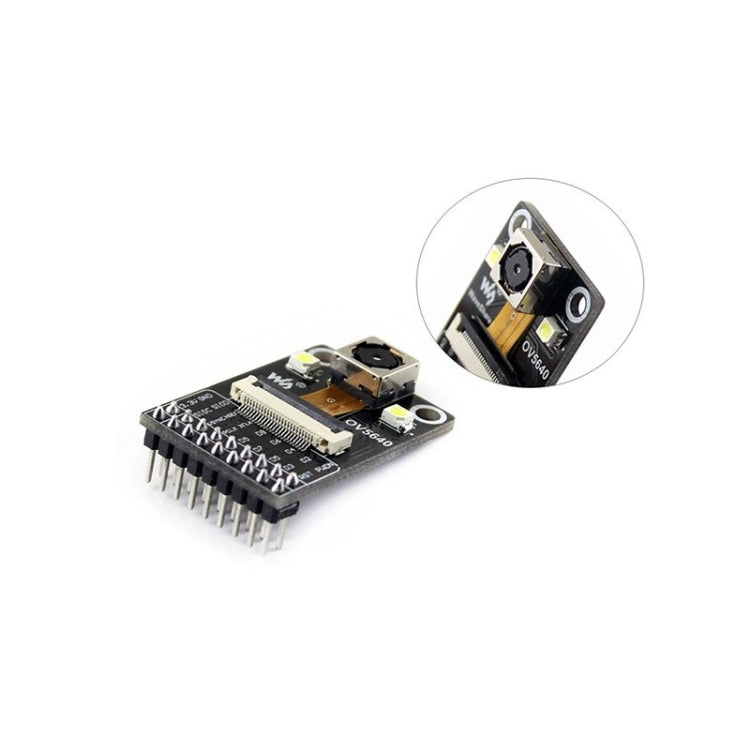

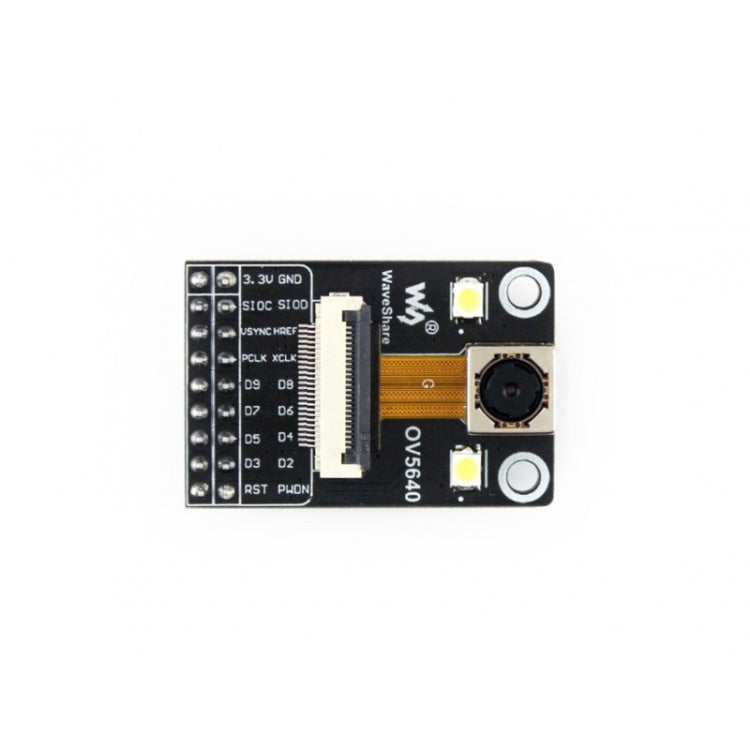

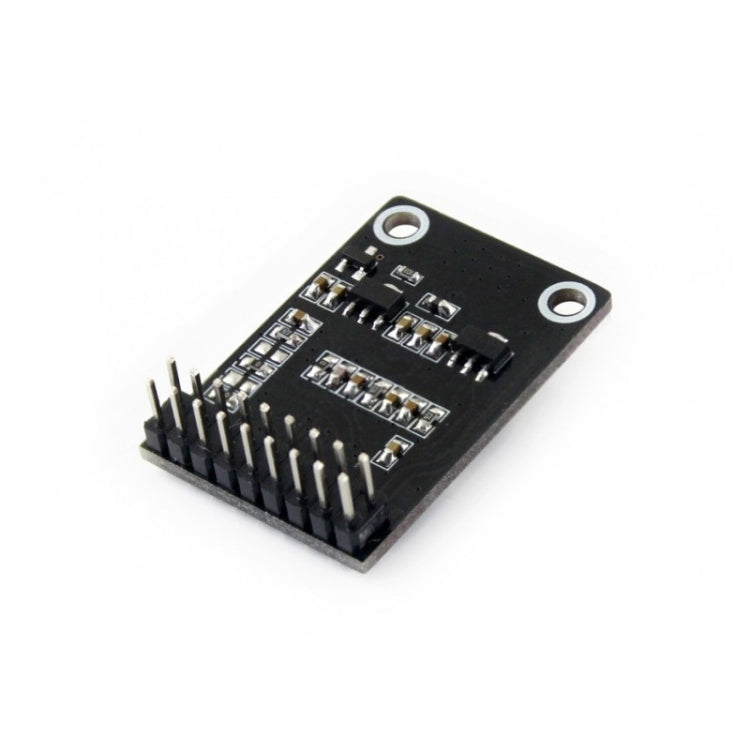

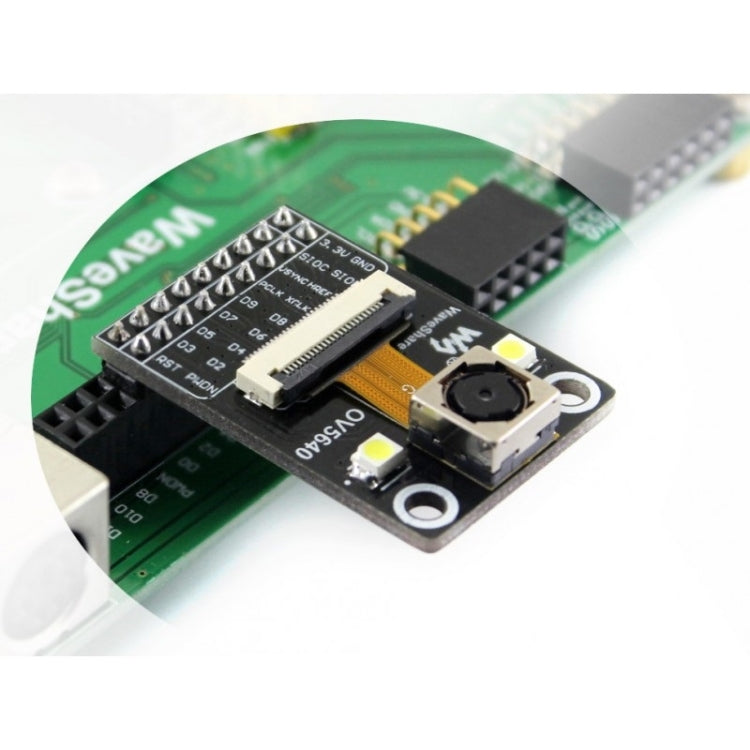

The Waveshare OV5640 Camera Module Board is a 5-megapixel imaging device designed for various electronic applications. It is suitable for capturing images in low-light conditions due to its onboard flash LED.
- Product Type: Camera Module Board
- Image Sensor: OV5640
- Pixels: 5 Megapixel
- Resolution: 2592 x 1944
- Auto Focus: Yes, detects object distance
- Onboard Flash LED: Yes, enables low-light photography
- Sensor Technology: OmniBSI, high sensitivity, low crosstalk, low noise
- Automatic Image Control Functions: AEC, AWB, ABF, ABLC
- Image Quality Controls: Color saturation, hue, gamma, sharpness, lens correction
- Image Scaling: Supports scaling, panning, windowing
- Lens Specifications:
- CCD Size: 1/4 inch
- Aperture (F): 2.8
- Focal Length: 3.37 mm (adjustable)
- Diagonal Field of View: 67.4 degrees
- Output Formats: YUV (422/420), YCbCr422, RGB565/555/444, CCIR656, RAW RGB, Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8-bit
- Dimensions: 35.70 mm x 23.90 mm
