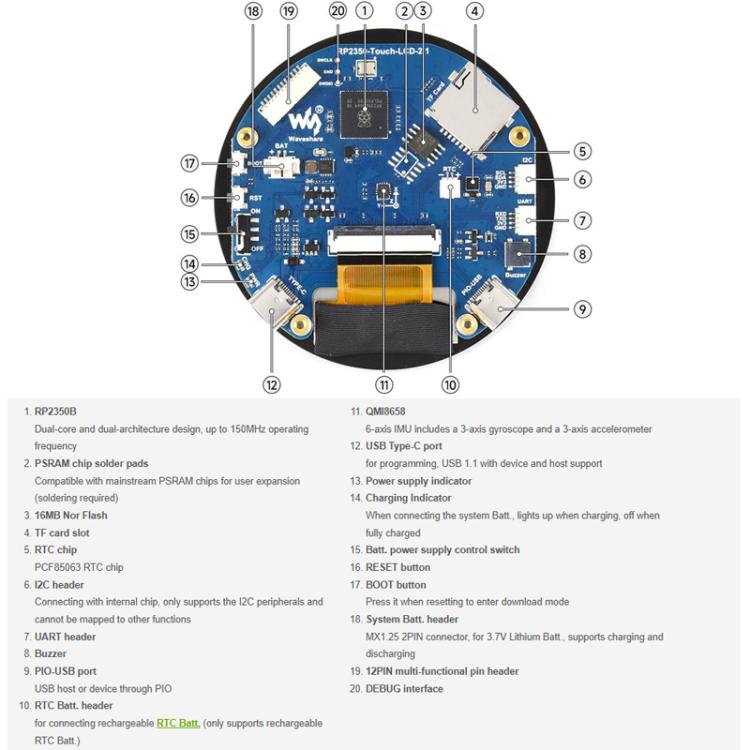

WAVESHARE RP2350 2.1 Inch Capacitive Touch Round Display Development Board, Spec: 2.5D Curved

The WAVESHARE RP2350 2.1 Inch Capacitive Touch Round Display Development Board is an electronics module designed for development use. It is suitable for projects requiring a touch interface and high-resolution display.

• Product Type: Arduino Nucleo Accessories
• Compatibility: RP2350
• Material: IPS

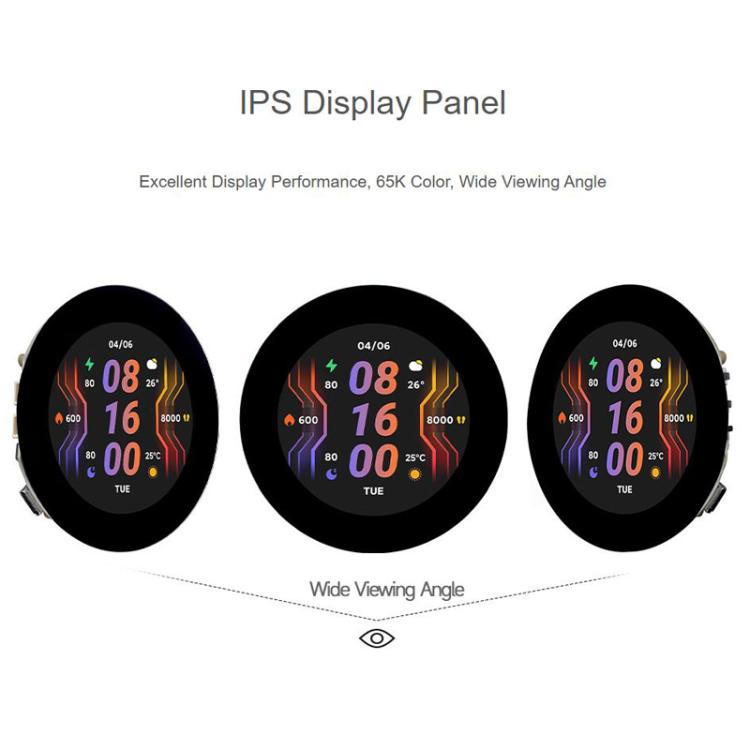

• Display Panel: IPS
• Display Resolution: 480 x 480
• Communication Interface: SPI + RGB
• Touch Interface: I2C
• Touch Type: Capacitive Induction

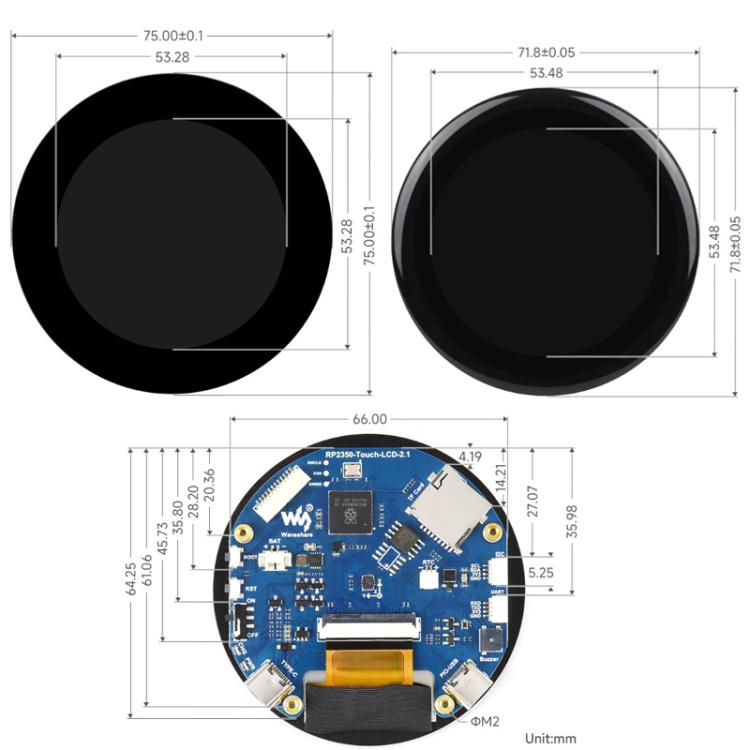

• Display Size: 2.1 inches
• Display Color: 65K
• Display IC: ST7701
• Touch IC: CST820
• Number of Touch Points: Single-touch
• Microcontroller Chip: RP2350B
• Processor: Dual-core ARM Cortex-M33 and RISC-V
• Clock Frequency: Up to 150MHz
• Built-in SRAM: 520KB
• On-chip Flash: 16MB
• PSRAM Interface: Reserved
• Interface Type: Type-C
• USB Support: USB1.1 host and slave
• Power Modes: Low-power sleep and hibernation
• USB Functionality: Recognized as mass storage for drag-and-drop program downloads

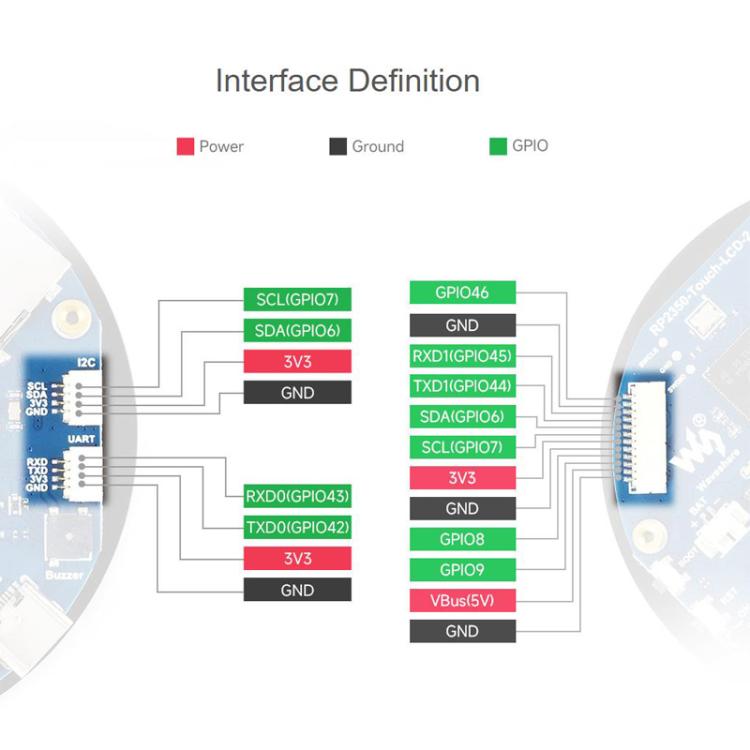

• GPIO Pins: 9 multi-functional
• Communication Protocols: 2 SPI, 2 I2C, 2 UART, 5 12-bit ADC, 9 controllable PWM channels
• Clock and Timer: Precision on-chip
• Temperature Sensors: Included
• Floating Point Library: On-chip accelerated
• Programmable I/O State Machines: 12 for custom peripheral support
