WAVESHARE RP2350B-Plus-W Development Board Raspberry Pi RP2350B Dual-Core Microcontroller Supports Wi-Fi & Bluetooth(32048)

• Product type: Raspberry Pi Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Dual-core microcontroller
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Raspberry Pi Accessories

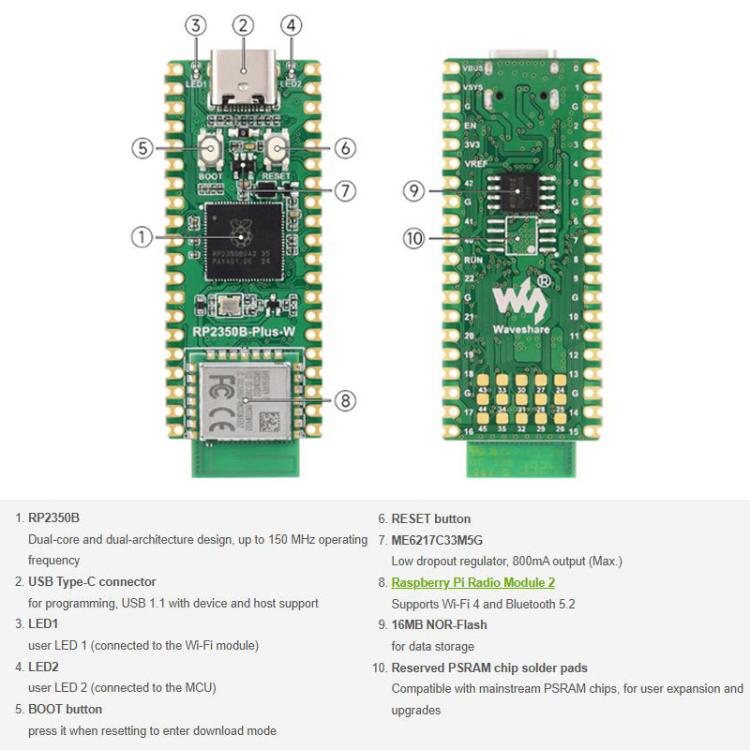

1. RP2350B microcontroller chip designed for Raspberry Pi
2. Unique dual-core, dual-architecture design featuring dual-core ARM Cortex-M33 processors and dual-core Hazard3 RISC-V processors, each clocked at up to 150MHz, enabling flexible switching between architectures
3. Equipped with the Raspberry Pi Radio Module 2, supporting Wi-Fi 4 wireless networking and Bluetooth 5.2
4. Features 520KB of SRAM and 16MB of on-chip Flash, with a reserved PSRAM interface
5. Utilizes a Type-C interface, eliminating orientation concerns
6. Supports USB 1.1 host and device functionality
7. Supports low-power sleep and hibernation modes
8. USB mass storage mode for drag-and-drop program downloads
9. 41 versatile GPIO pins
10. 1 HSTX, 2 SPI, 2 I2C, 2 UART, 6 12-bit ADCs, and 22 controllable PWM channels
11. Precise on-chip clock and timers
12. Temperature sensor
13. On-chip accelerated floating-point library
14. 12 programmable I/O (PIO) state machines for custom peripheral support
