Description

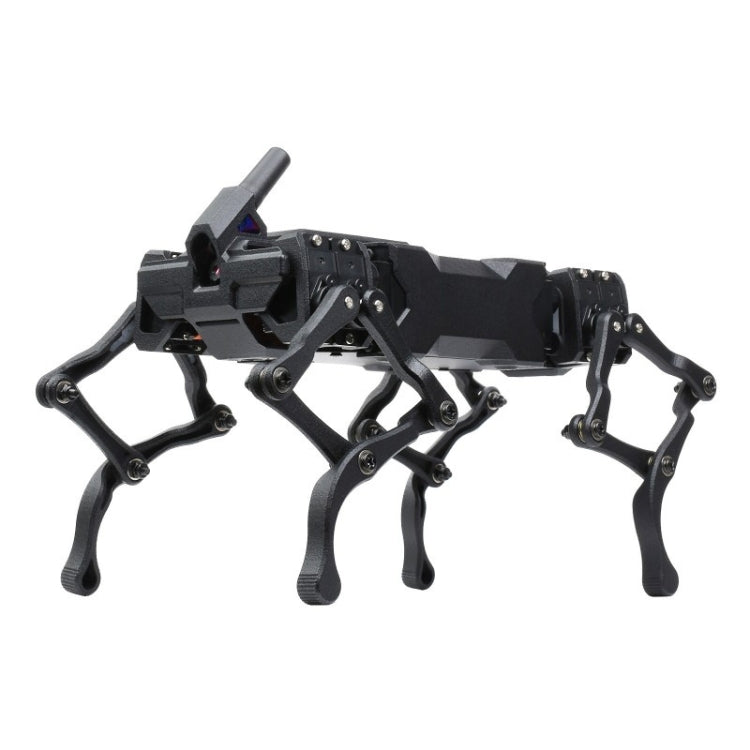

The WAVEGO is a high-degree-of-freedom bionic quadruped robot designed for various robotic applications. It can perform multiple gaits such as shaking hands, standing up, and jumping, making it suitable for educational and research purposes.
- Product Name: WAVEGO high-DOF bionic quadruped robot

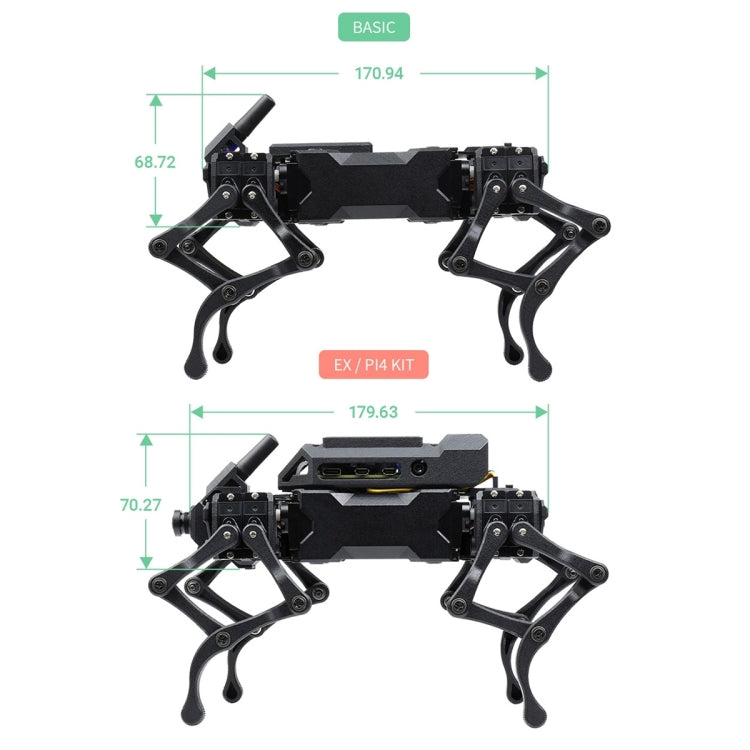

- Overall Dimensions: Stand up - 218mm (L) x 116mm (W) x 152mm (H); Lie down - 228mm (L) x 116mm (W) x 127mm (H)
- Overall Weight: 465g (with batteries)
- Degrees of Freedom (DOF): 12 (3 per leg)
- Operating System: FreeRTOS + Raspberry Pi OS
- Available Gaits: Shake hands, stand up, crouch slowly, diagonal gait, jump, self-balancing
- Load Capacity: 300g
- Servo Specifications: Dimensions - 23.2mm x 12.1mm x 25.25mm; Weight - 13.0 +/- 1g; Operating Voltage - 6V; Idle Speed - 0.1sec/60 degrees (100RPM); Stalling Torque - 2.3kg.cm (31.99oz.in); Rated Load - 0.7kg.cm; Rated Current - 350mA; Control Method - Pulse width modulation; Control System Type - Digital comparator
- Visual Functionality: Web-based real-time video streaming (FreeRTOS demo); Real-time video streaming, facial recognition, color tracking, moving object detection (Raspberry Pi OS demo)
- Processor: ESP32 sub controller with Xtensa LX6 dual-core processor at 240MHz; SRAM - 520KB + 8MB; Flash - 448KB + 4MB
- Wireless Standards: WiFi 802.11b/g/n; Bluetooth 4.2 (BR/EDR and BLE)
- External Ports: 2 x 5P multi-function extension ports for host controller communication, power supply selection, assembly mode selection
- Power Supply: Requires 18650 Li-ion batteries (not included); Supply Voltage - 7-8.4V; Recharge Voltage - 8.4V; Protection features include overcharge, discharge protection, overcurrent protection, short circuit protection, reverse proof, equalizing charge
- Output Voltage: Provides 5V output for other host controllers

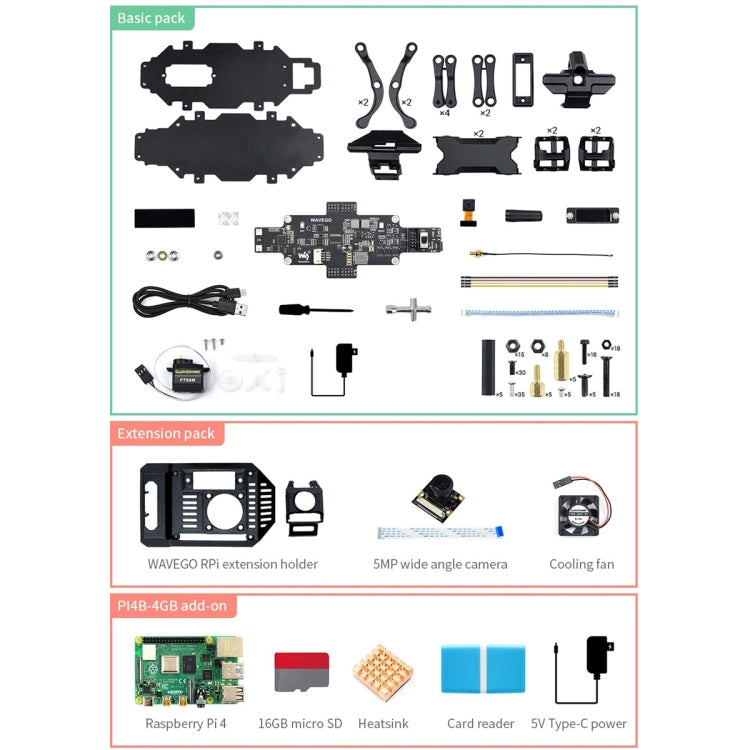

- Package Contents: WAVEGO body case, basic parts, semi-transparent acrylic panel, double-sided sticker, base board, 2MP camera, 2.4G antenna, 0.91 inch OLED display, micro thrust bearings, micro ball flange bearings, USB cable (~1m), plus screwdriver, cross wrench sleeve, IPEX 1 to SMA cable (~17cm), jumper wires (~20cm), 4PIN PH2.0 cable, servo pack, 8.4V 2A battery charger, screws and standoffs
