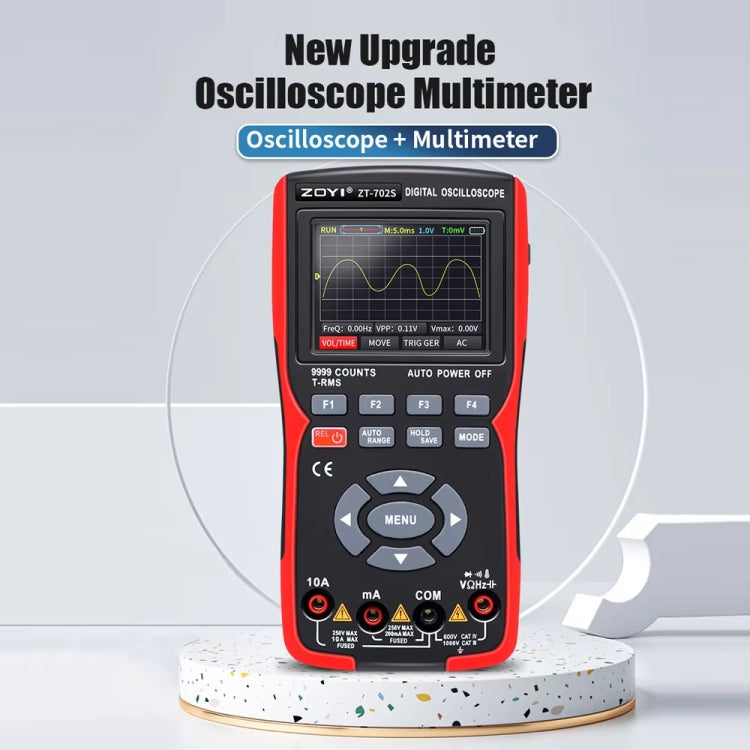

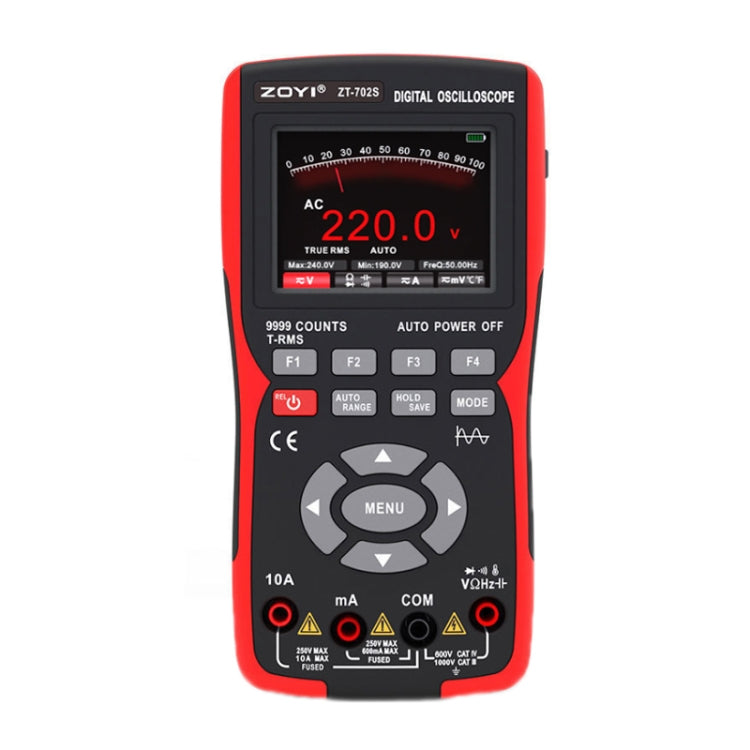

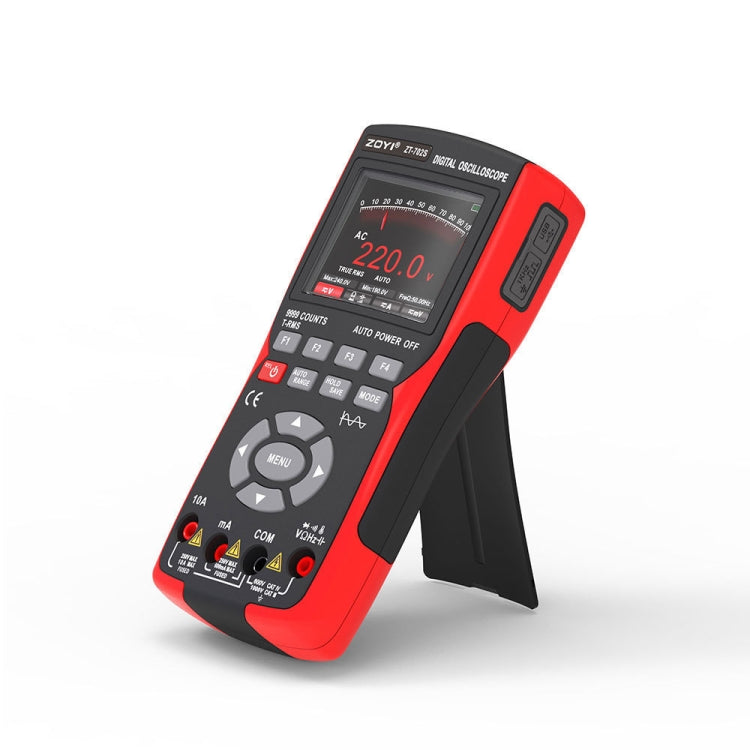

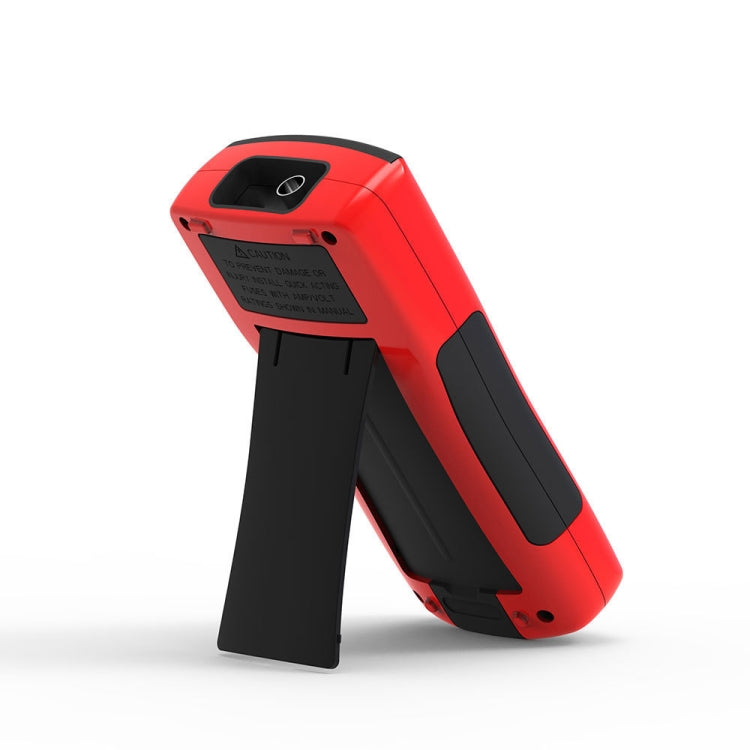

ZOYI Color Screen Multifunctional Handheld Digital Oscilloscope Multimeter(English)

Name: ZOYI Color Screen Multifunctional Handheld Digital Oscilloscope Multimeter(English)
Brand: ZOYI
SKU: TBD0605293101A
Price: 1669.00 ZAR
Availability: InStock

R 1,669.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Range: auto/manual
2. Display: 9999 words
3. Power supply: 18650 battery 4000mAh
4. Input voltage: 400V (DC+AC peak) MAX
5. AC current ACA: 10uA~10A
6. DC current DCA: 10uA~10A
7. AC voltage ACV: 0.01mV~750V
8. DC voltage: DCV0.01mV~1000v
9. Resistance: 0.1~100 milliohms
10. Capacitance: 0.01nF~10000uF
11. Frequency: 0.1Hz~5MHz
12. Temperature: -20~1000 degrees Celsius
13. Bandwidth: 10MHz
14. Record length: 64Kbyte (k)
15. Sampling rate range: 1.5Sa/s=48MSa/s
16. Waveform interpolation: (sinx) x
17. Scan rate range: 50ns/div=20s/div
18. Time base accuracy: 20ppm
19. Three measurement modes
- Automatic: automatic triggering will collect and refresh waveform records in real time, and will not retain the waveform
- Normal: when the amplitude of the collected signal reaches the set trigger level value, the trigger system will lock the waveform and keep it displayed on the screen. The oscilloscope is still collecting. When it is triggered again, the waveform on the screen will be updated to the current waveform again, which is a continuous trigger
- Single: when the amplitude of the collected signal reaches the set trigger level value, the trigger system will lock the waveform and keep it displayed on the screen. When the waveform acquisition is completed, the STOP state is displayed, and the oscilloscope stops signal acquisition; if you need to trigger again, press HOLD to cancel STOP and enter the waiting trigger state

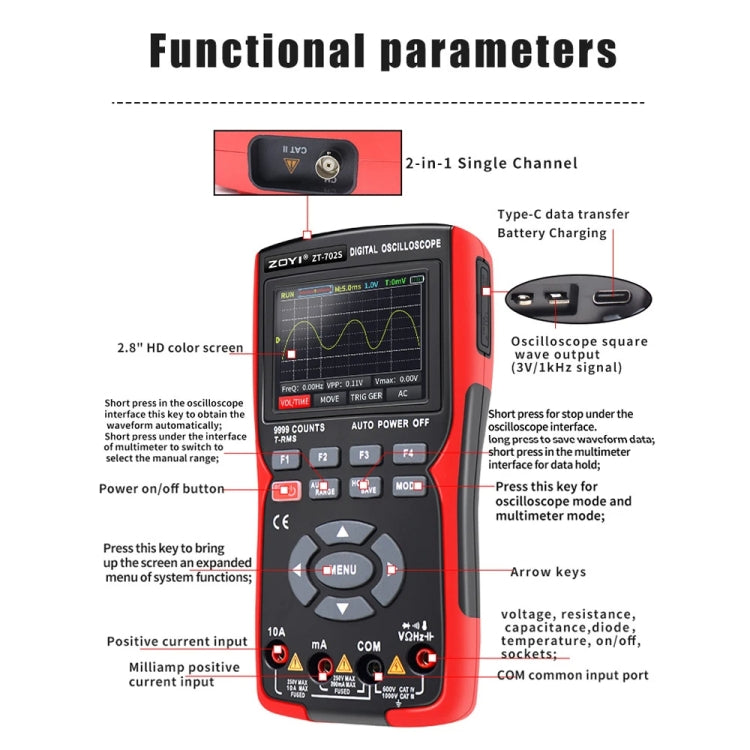

21. TYPE-C data cable connects to the DC 5V output adapter for charging

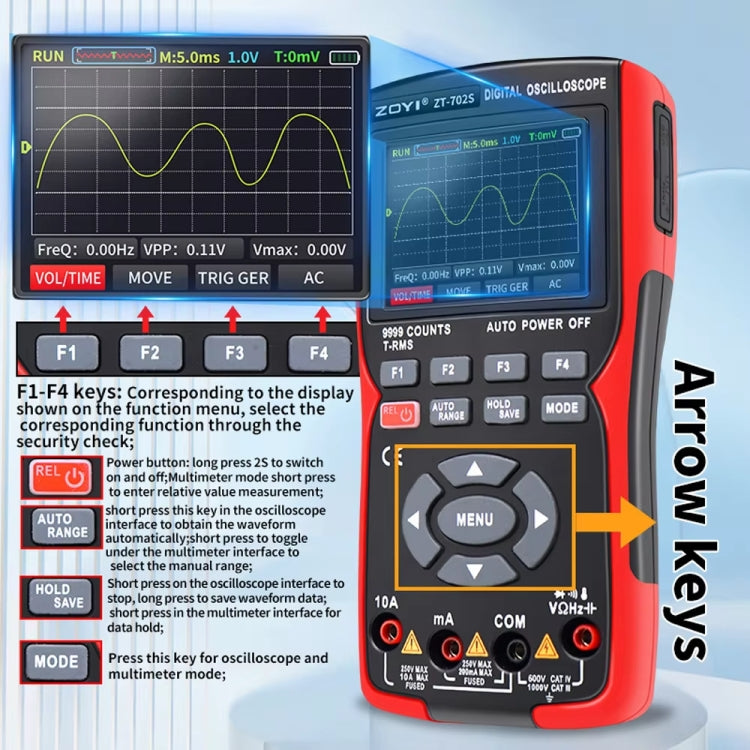

22. Long press for 2 seconds to turn on and off, short press to enter relative value measurement

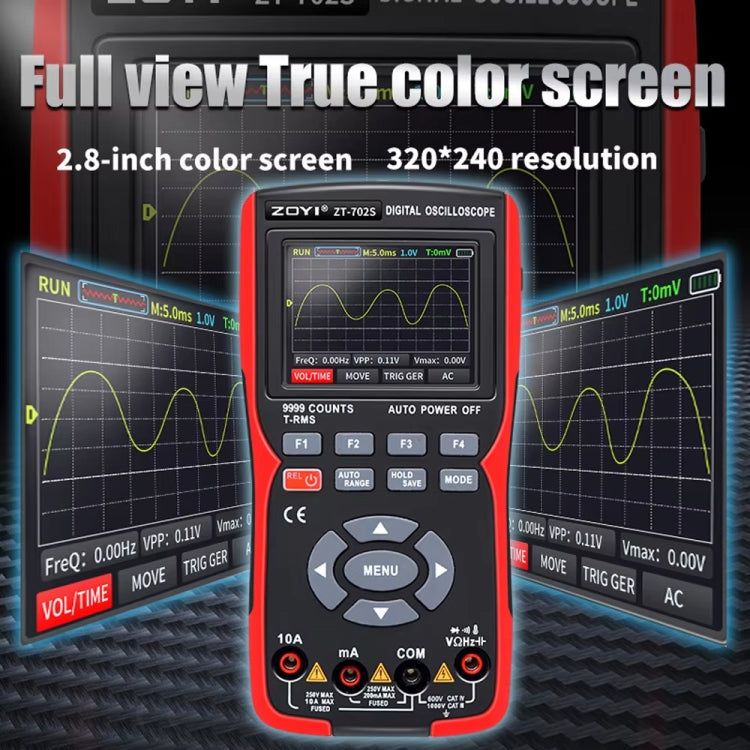

23. The screen uses a 2.8-inch IPS full-view color screen
24. Oscilloscope square wave output terminal, permanent output 3V/1KHZ signal square port is ground output metal end round port is signal output metal end
25. Dimensions: 180x90x45mm
26. Net weight: 348g
