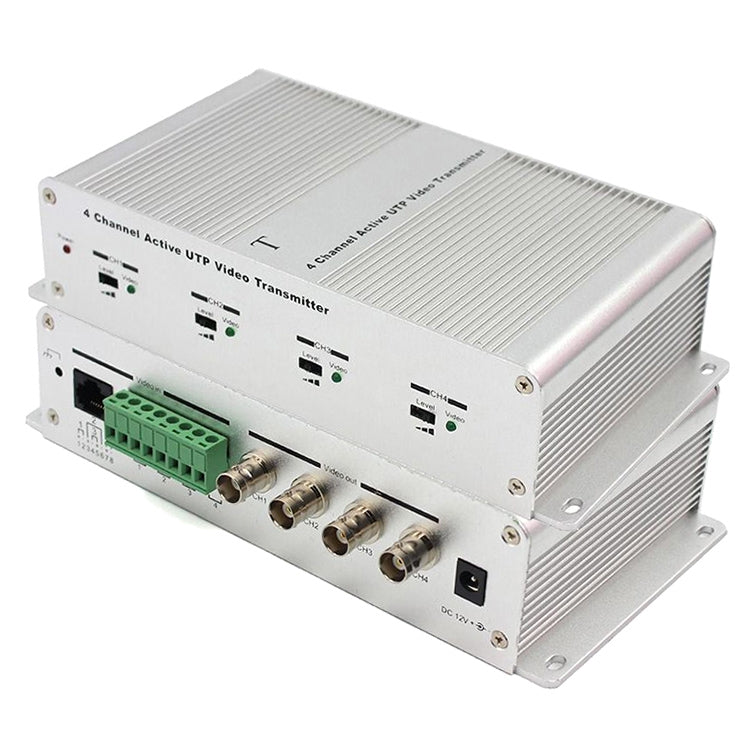

4 Channel Active UTP Video Transmitter(Silver)
4 Channel Active UTP Video Transmitter(Silver)
Em promoção
Esgotado
Pre-order
Preço normal
R 659.00
Preço normal
Preço de saldo
R 659.00
Preço unitário
por
Envio calculado na finalização da compra.
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Não foi possível carregar a disponibilidade de recolha
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Descrição
1. Applicable to NTSC, PAL, SECAM and CCIR system.
2. Full motion CCTV video at distance up to 7200ft(2400m).

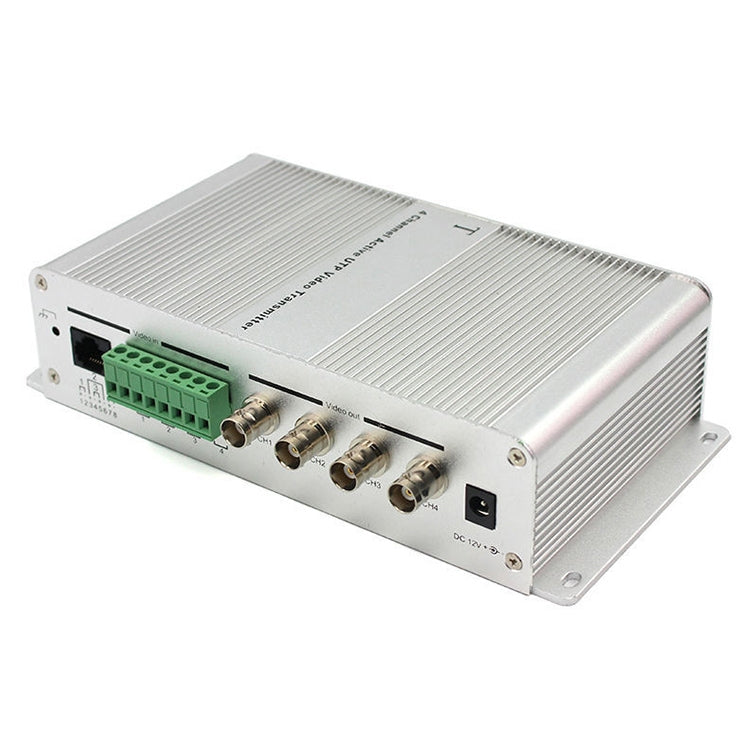

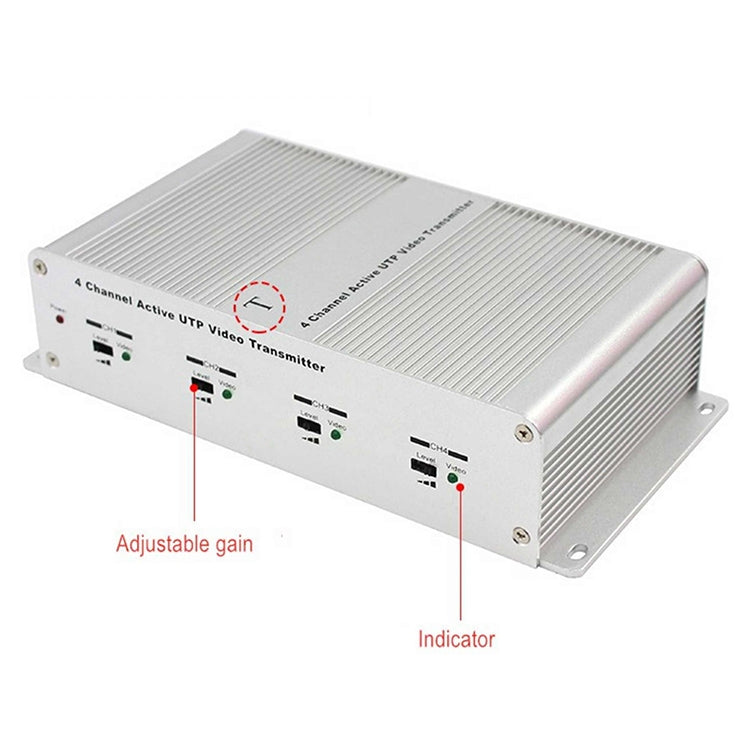

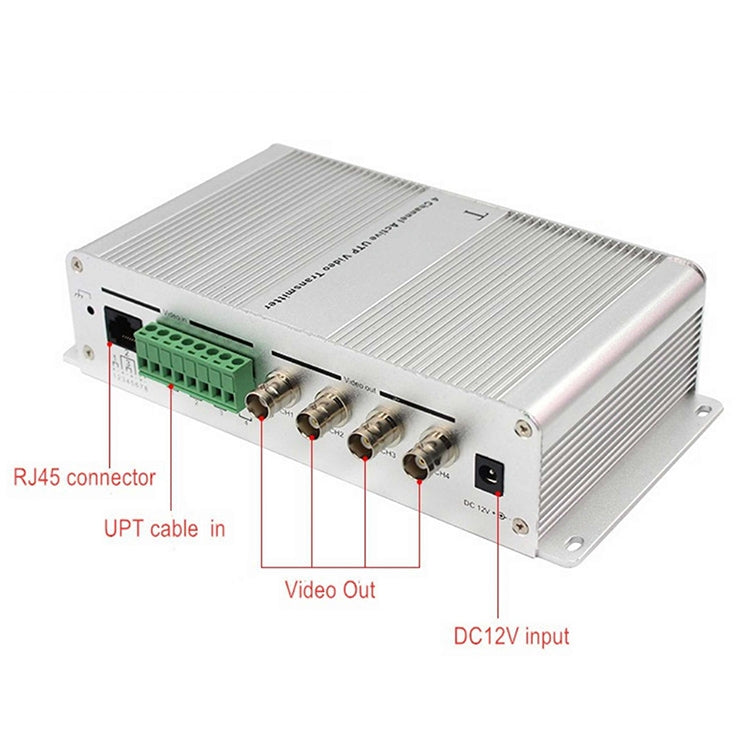

3. 18 pin RJ 45 socket, 8 position green terminal block, 4 BNC port, 4 "brightness"adjustable knob, 4 "sharpness" adjustable knob.
4. Applied for the occasions such as video monitoring and video meeting, can transmit four channels of video signal via 8 core cat-5 unshielded twisted pair wire.
5. Can receive balanced signal to convert it into unbalanced signal, and raise the receive signal with receiving effect well.
Specifications:
1. Product Name: 4 Channel UTP Video Transmitter
2. Channel: 4
3. Material: Metal
4. Frequency Response: DC-8MHz
5. CMRR: 60db
6. Impendance: BNC Terminal: 75Ohm; Connection Terminal: 100Ohm
7. Working Temperature: -10-70 degree C
8. Voltage: DC 12V
9. Current: Max.200mA
10. Characteristic Impendance: 100+/-20 Ohm
11. DC Loop Resistance: 18Ohm/100m
12. Size: 20 x 7 x 4.3cm
13. Color: Silver Tone
14. Weight: 579g
2. Full motion CCTV video at distance up to 7200ft(2400m).
3. 18 pin RJ 45 socket, 8 position green terminal block, 4 BNC port, 4 "brightness"adjustable knob, 4 "sharpness" adjustable knob.
4. Applied for the occasions such as video monitoring and video meeting, can transmit four channels of video signal via 8 core cat-5 unshielded twisted pair wire.
5. Can receive balanced signal to convert it into unbalanced signal, and raise the receive signal with receiving effect well.
Specifications:
1. Product Name: 4 Channel UTP Video Transmitter
2. Channel: 4
3. Material: Metal
4. Frequency Response: DC-8MHz
5. CMRR: 60db
6. Impendance: BNC Terminal: 75Ohm; Connection Terminal: 100Ohm
7. Working Temperature: -10-70 degree C
8. Voltage: DC 12V
9. Current: Max.200mA
10. Characteristic Impendance: 100+/-20 Ohm
11. DC Loop Resistance: 18Ohm/100m
12. Size: 20 x 7 x 4.3cm
13. Color: Silver Tone
14. Weight: 579g
