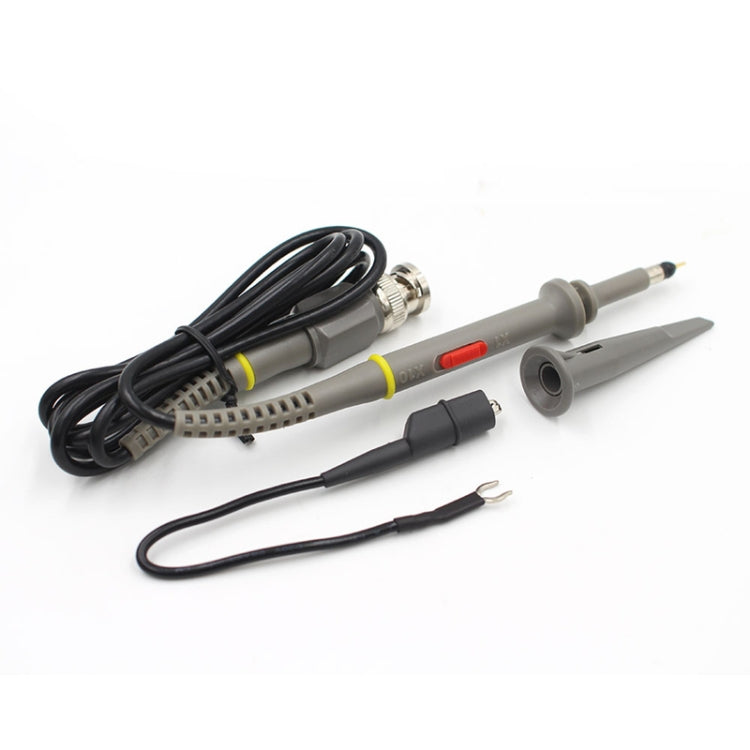

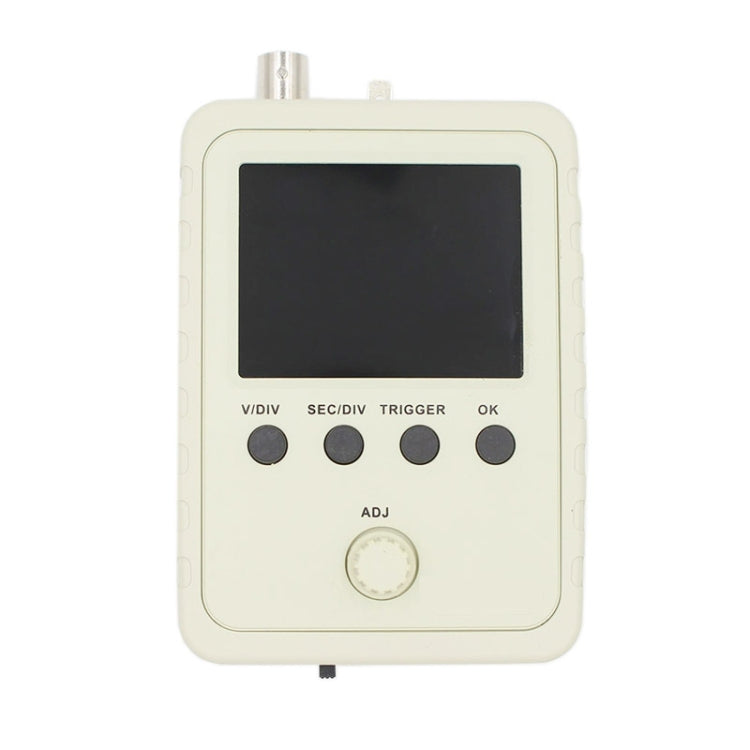

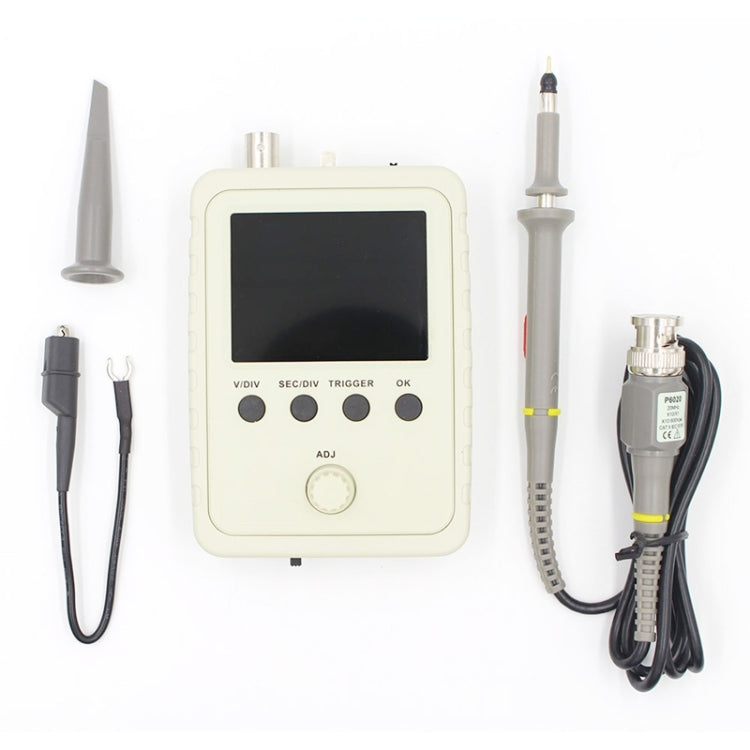

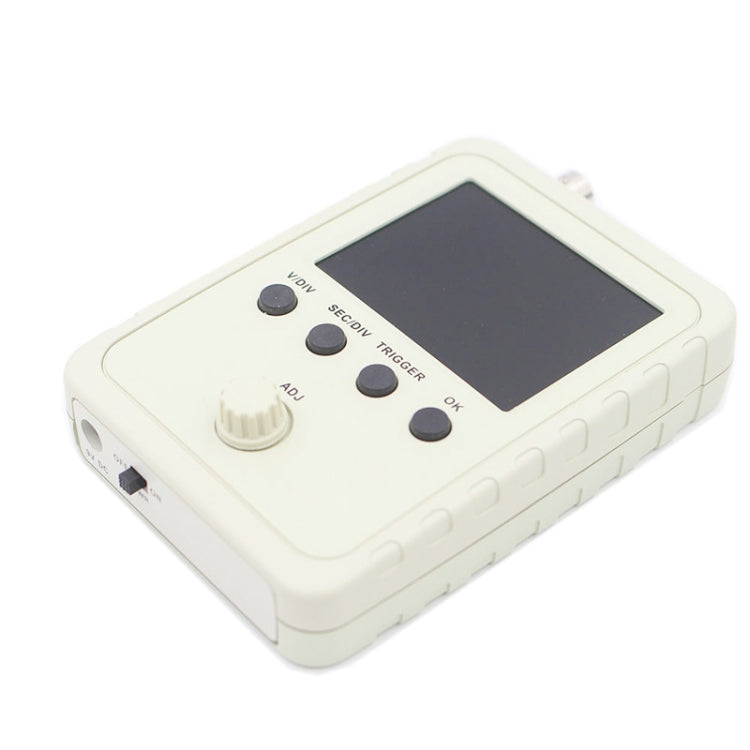

DSO150 Shell Oscilloscope Kit with BNC Probe

Name: DSO150 Shell Oscilloscope Kit with BNC Probe
Brand: PMC Jewellery
SKU: TBD0532820
Price: 929.00 ZAR
Availability: InStock

R 929.00

Em promoção Esgotado

Envio calculado na finalização da compra.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Highest real-time sampling rate: 1Msps
2. Accuracy: 12Bit
3. Sampling buffer depth: 1024 bytes
4. Analog band width: 0-200KHz
5. Vertical sensitivity: 5mV / Div – 20V / Div (progressive in 1-2-5 way)
6. Adjustable vertical displacement with instructions
7. Input impedance: 1MΩ
8. Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

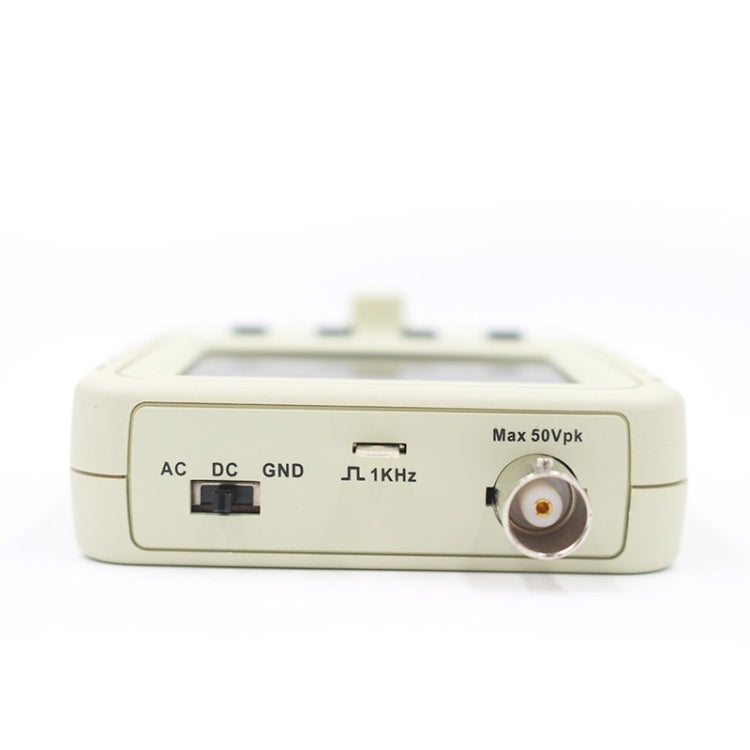

9. Coupling methods include: DC / AC / GND
10. Horizontal time base range: 10μs / Div – 50s / Div (progressive in 1-2-5)
11. Trigger mode: With automatic, regular and single shot, easy to capture instantaneous waveform
12. Trigger on rising or falling edge
13. Trigger level position is adjustable, with indication
14. Observe waveform before trigger (negative delay)
15. Freeze waveform display at any time (HOLD function)
16. Signal source: Comes with 1KHz /3.3V square wave test

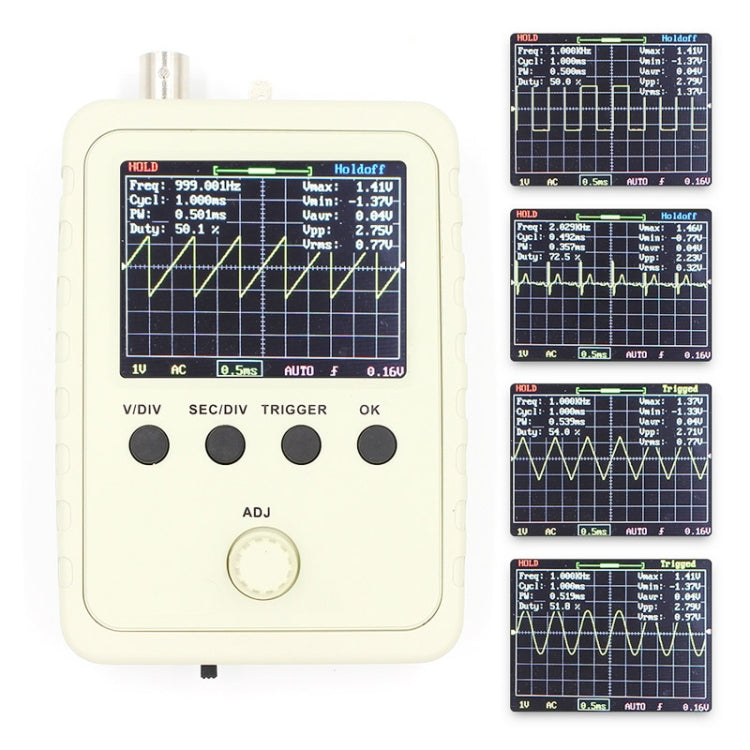

17. The parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, and effective value.
18. Save / recall waveform, the waveform does not disappear after shutdown
19. Packing list:
20. 15001K (SMD components are soldered)
