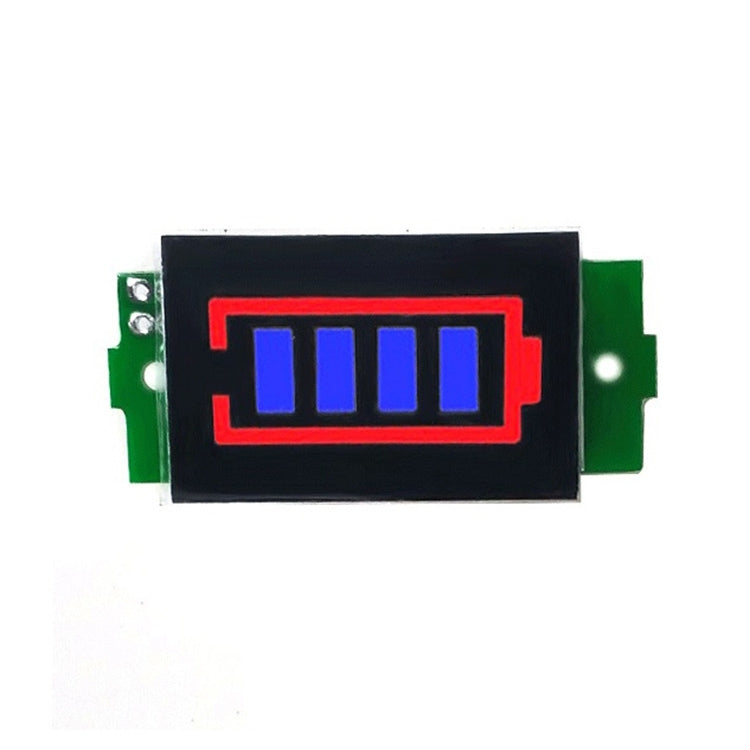

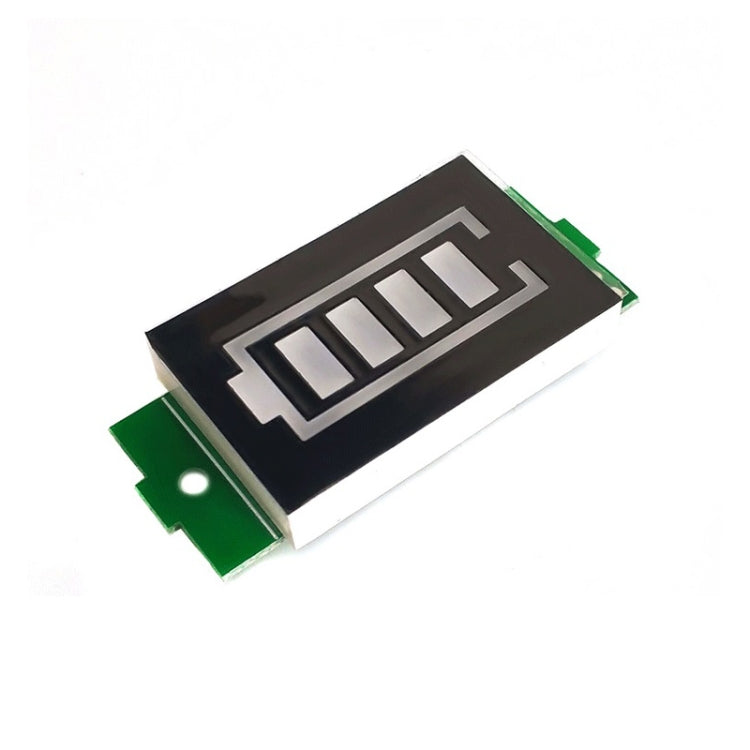

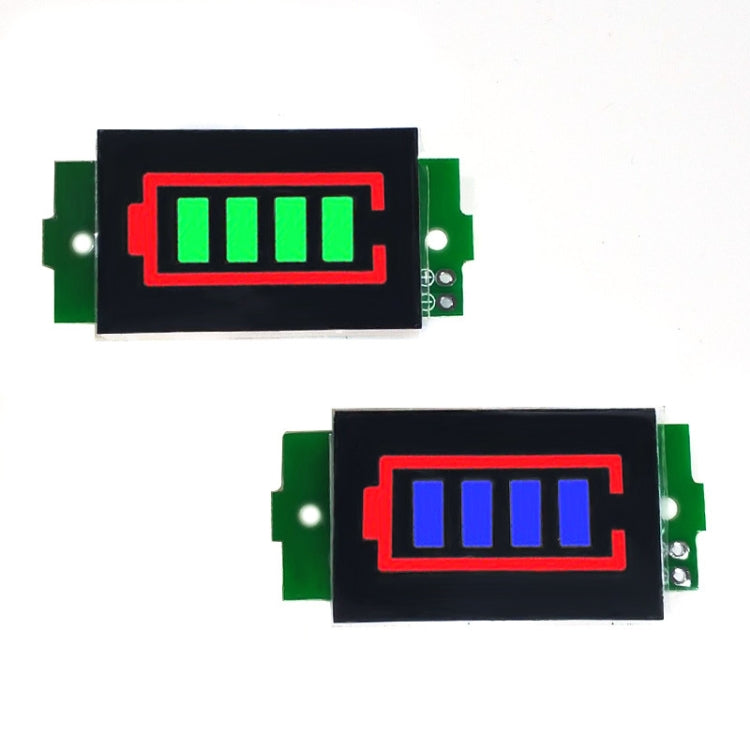

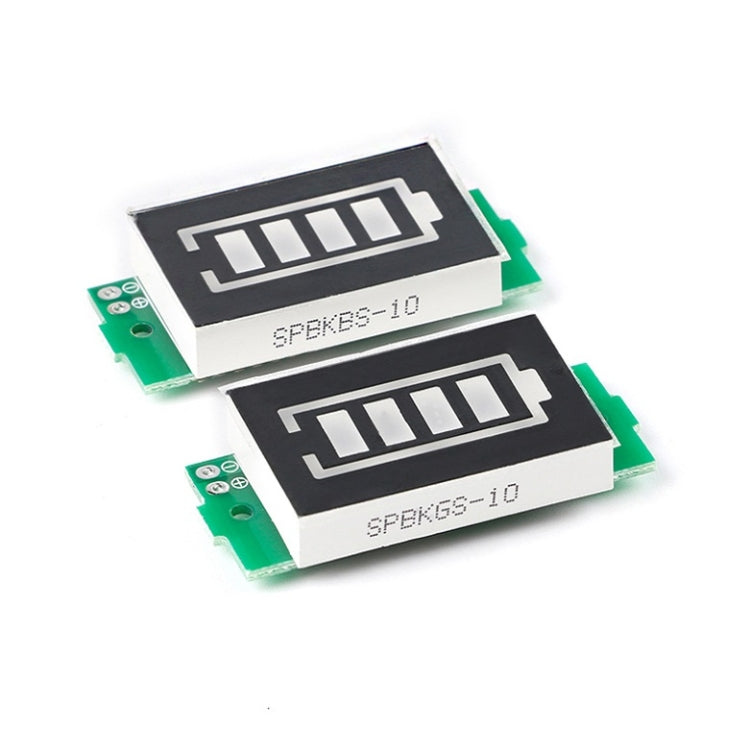

Lithium Battery Fuel Gauge Display Module(Blue)

Name: Lithium Battery Fuel Gauge Display Module(Blue)
Brand: PMC Jewellery
SKU: TBD0601773101B
Price: 189.00 ZAR
Availability: InStock

R 189.00

Em promoção Esgotado

Envio calculado na finalização da compra.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

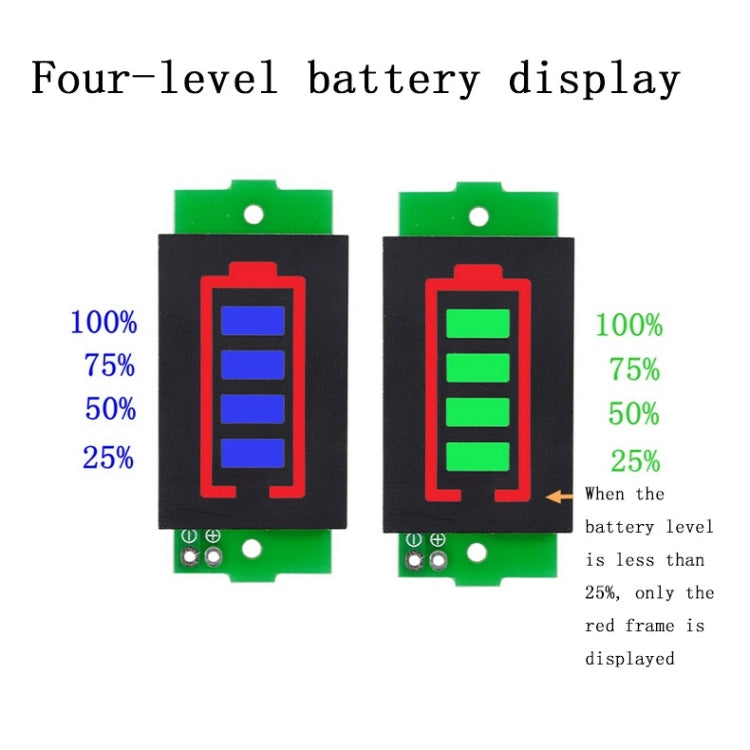

1. Four-level battery display
2. Working current: 5mA
3. Working voltage: 3-34V
4. Please be waterproof for outdoor use
5. Working temperature: -20-50 degrees Celsius
6. When the battery level is less than 25%, only the red frame is displayed
7. S1-S8 optional pads can only be connected to one type, and 2 or more simultaneous short-circuiting are not allowed
8. Lithium battery, lead acid, nickel metal hydride, battery can be used to display the battery, as long as the voltage is within the range of the parameter table

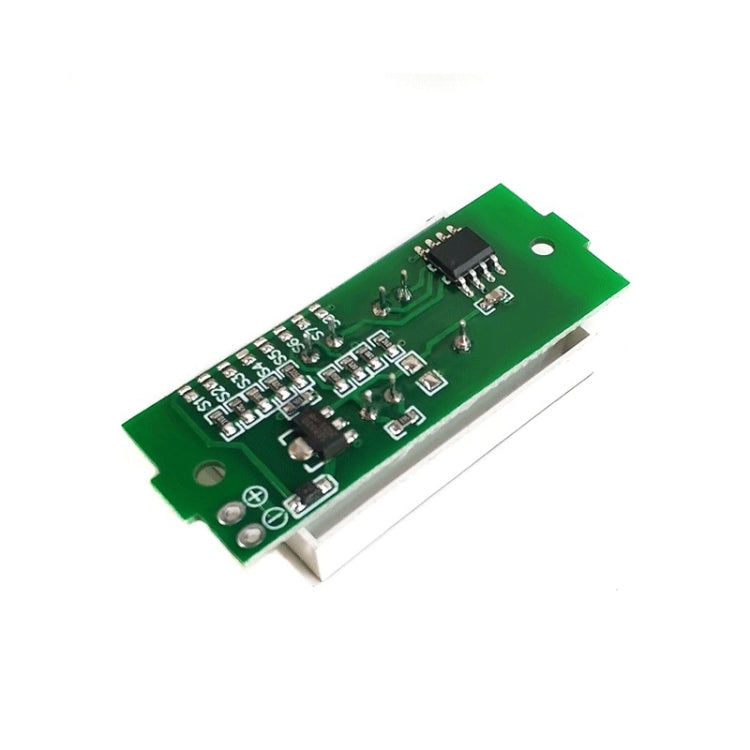

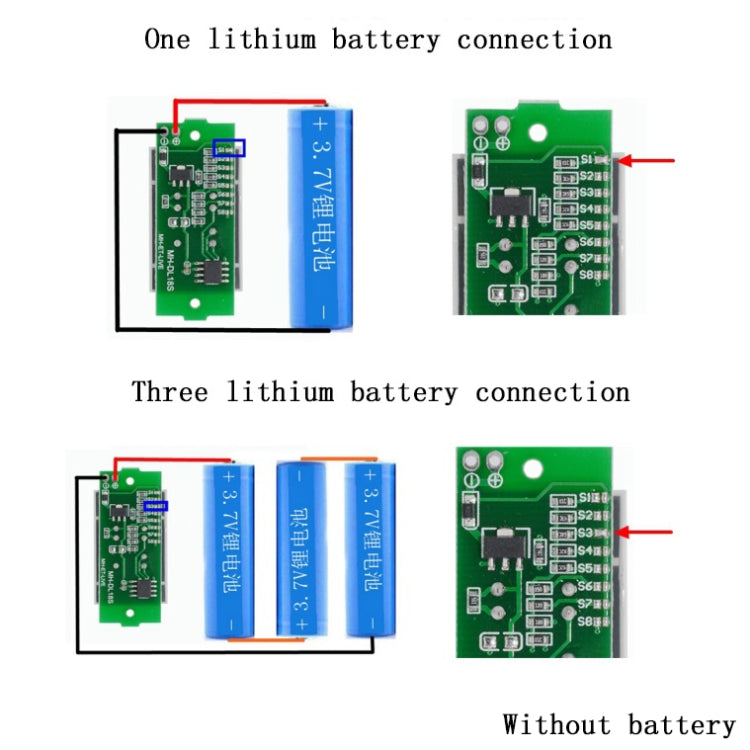

9. Battery-type power display, select the corresponding solder pad to detect the voltage of the battery pack corresponding to 1S-8S, which is very convenient
10. How to use: connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube will display the real-time battery power
