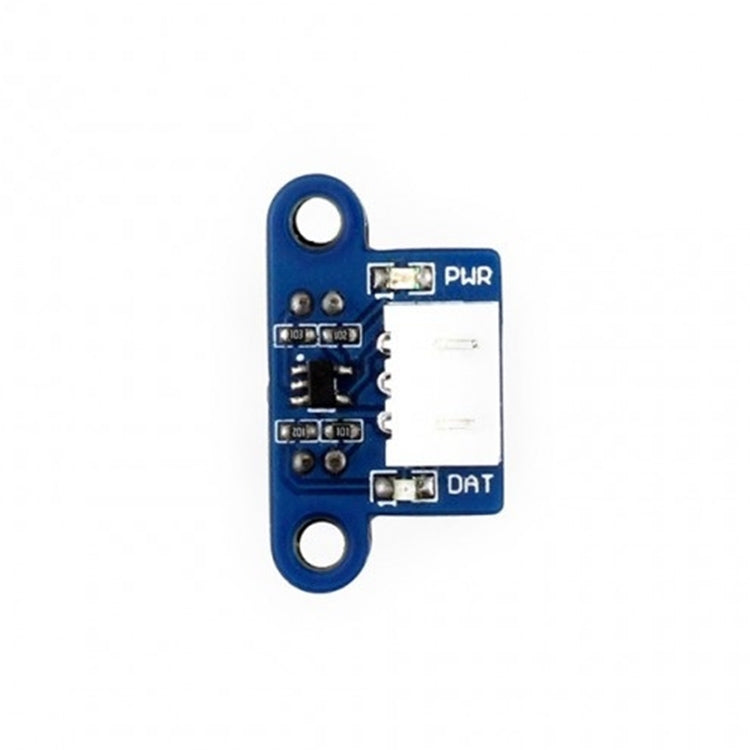

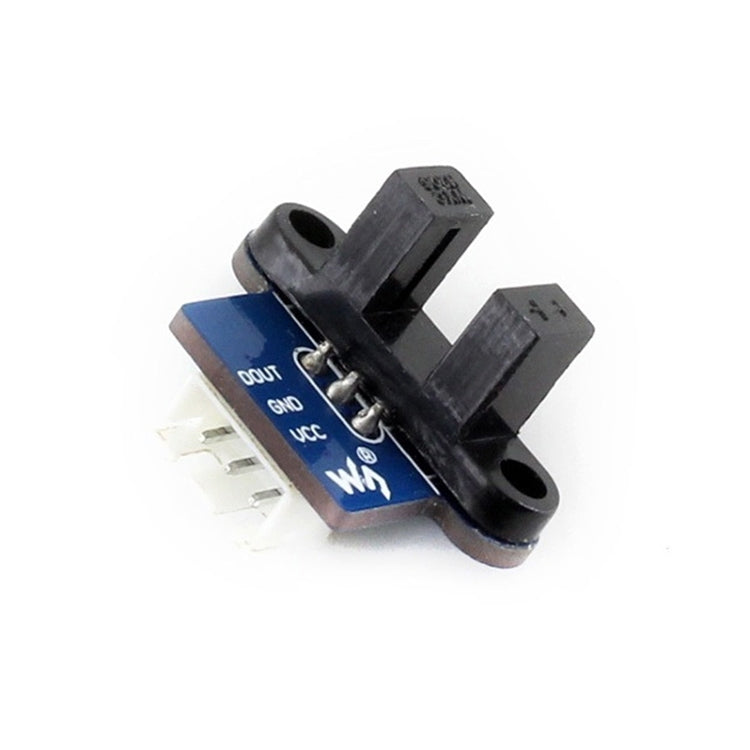

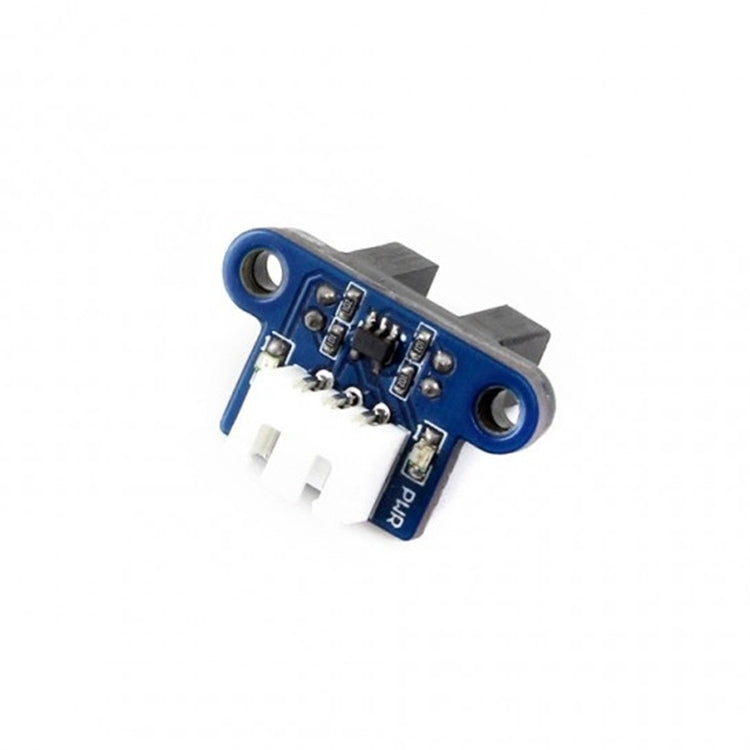

Waveshare Photo Interrupter Sensor, Speed Measuring
Waveshare Photo Interrupter Sensor, Speed Measuring
Em promoção
Esgotado
Pre-order
Preço normal
R 229.00
Preço normal
Preço de saldo
R 229.00
Preço unitário
por
Envio calculado na finalização da compra.
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Não foi possível carregar a disponibilidade de recolha
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Descrição
• Product type: Robotics Accessories
• Compatibility: Speed Measuring Applications
• Material: Infrared
• Key feature: Infrared detection eliminates external light interference
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Consumer Electronics
Overview
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals
3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications

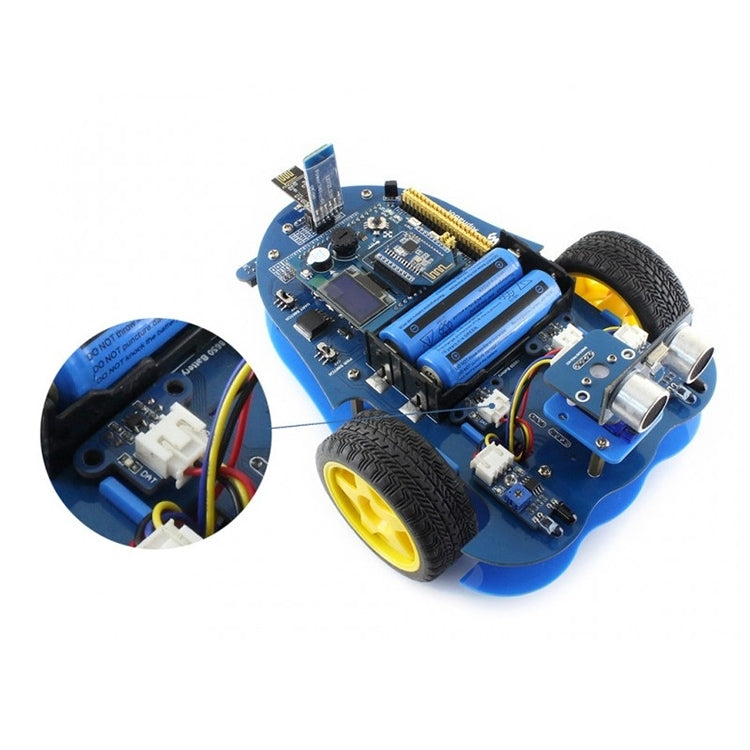

- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- DOUT ? MCU.IO (digital output)
• Compatibility: Speed Measuring Applications
• Material: Infrared
• Key feature: Infrared detection eliminates external light interference
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Consumer Electronics
Overview
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals
3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications
- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- DOUT ? MCU.IO (digital output)
