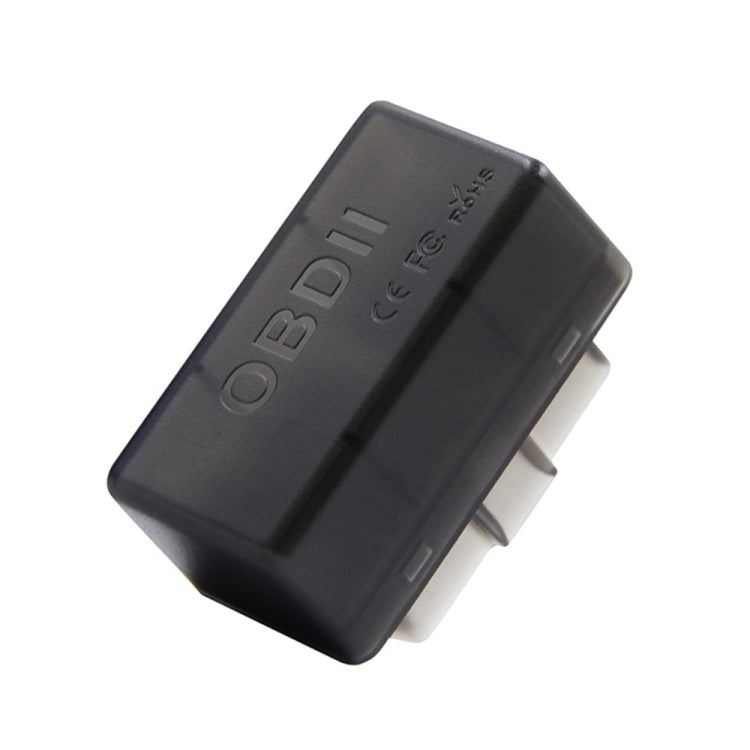

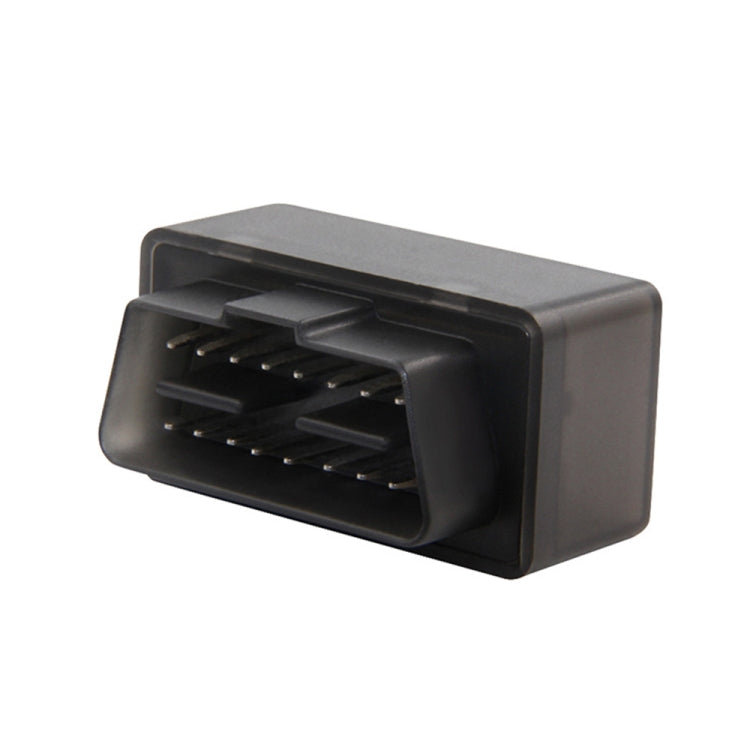

Mini Bluetooth ELM327 OBD Car Fault Diagnostic Scanner
Mini Bluetooth ELM327 OBD Car Fault Diagnostic Scanner
Sale
Sold out
Pre-order
Regular price
R 309.00
Regular price
Sale price
R 309.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Code Readers & Scan Tools
• Compatibility: Vehicles
• Material: Not specified
• Key feature: Bluetooth communication
• Color/Variant: Not specified
• Intended use: Diagnostic scanning
• Category: Diagnostic Scan Tools

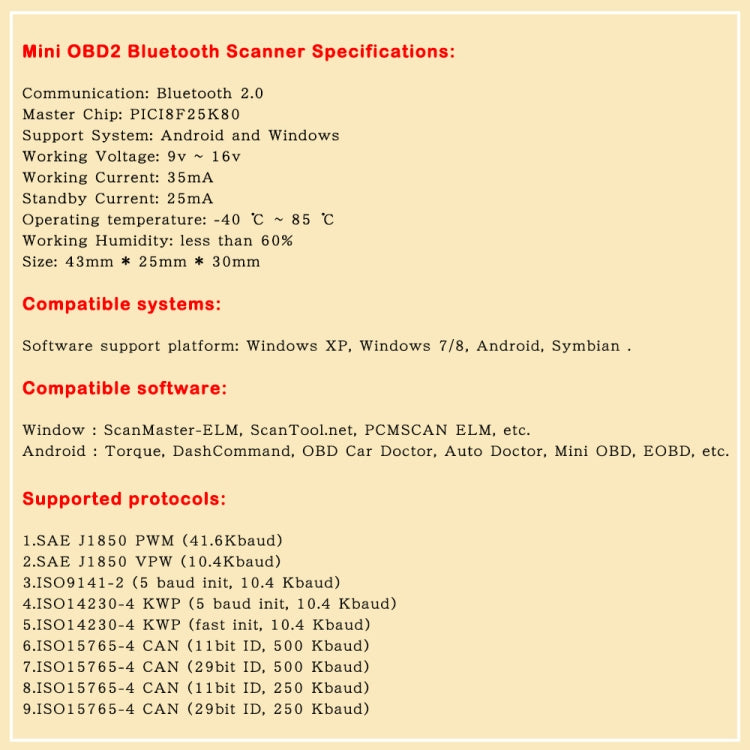

Function1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL (Check Engine light) 3. Display current sensor data 4. Engine RPM 5. Calculated Load Value 6. Coolant Temperature 7. Fuel System Status 8. Vehicle Speed 9. Short Term Fuel Trim 10. Long Term Fuel Trim 11. Intake Manifold Pressure 12. Timing Advance 13. Intake Air Temperature 14. Air Flow Rate 15. Absolute Throttle Position 16. Oxygen sensor voltages / associated short term fuel trims 17. Fuel System status 18. Fuel PressureSpecification1. Communication: Bluetooth 2.0 2. Master Chip: PICI8F25K80 3. Support System: Android and Windows 4. Working Voltage: 9v ~ 16v 5. Working Current: 35mA 6. Standby Current: 25mA 7. Operating temperature: -40~85 degree Celsius 8. Working Humidity: less than 60% 9. Compatible systems: Software support platform: Windows XP, Windows 7/8, Android, Symbian 10. Compatible software: Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc. Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc. Symbian : OBDScope 11. Size: 45mm x 25mm x 65mmSupported protocols1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2 (5 baud init, 10.4 Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
• Compatibility: Vehicles
• Material: Not specified
• Key feature: Bluetooth communication
• Color/Variant: Not specified
• Intended use: Diagnostic scanning
• Category: Diagnostic Scan Tools
Function1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL (Check Engine light) 3. Display current sensor data 4. Engine RPM 5. Calculated Load Value 6. Coolant Temperature 7. Fuel System Status 8. Vehicle Speed 9. Short Term Fuel Trim 10. Long Term Fuel Trim 11. Intake Manifold Pressure 12. Timing Advance 13. Intake Air Temperature 14. Air Flow Rate 15. Absolute Throttle Position 16. Oxygen sensor voltages / associated short term fuel trims 17. Fuel System status 18. Fuel PressureSpecification1. Communication: Bluetooth 2.0 2. Master Chip: PICI8F25K80 3. Support System: Android and Windows 4. Working Voltage: 9v ~ 16v 5. Working Current: 35mA 6. Standby Current: 25mA 7. Operating temperature: -40~85 degree Celsius 8. Working Humidity: less than 60% 9. Compatible systems: Software support platform: Windows XP, Windows 7/8, Android, Symbian 10. Compatible software: Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc. Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc. Symbian : OBDScope 11. Size: 45mm x 25mm x 65mmSupported protocols1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2 (5 baud init, 10.4 Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
