1. Input voltage range: 10V-75V
2. Output voltage adjustment range: 0-60V
3. Output current adjustment range: 0-12A
4. Output power: 0-720W
5. Output voltage setting resolution: 10mV
6. Output current setting resolution: 10mA
7. Output ripple: 50mVpp (input 54V, output 30V, current 5A)
8. Storage operation: M0-M9 total 10 groups of parameters storage
9. Heat dissipation method: On-board heat sink, air cooling

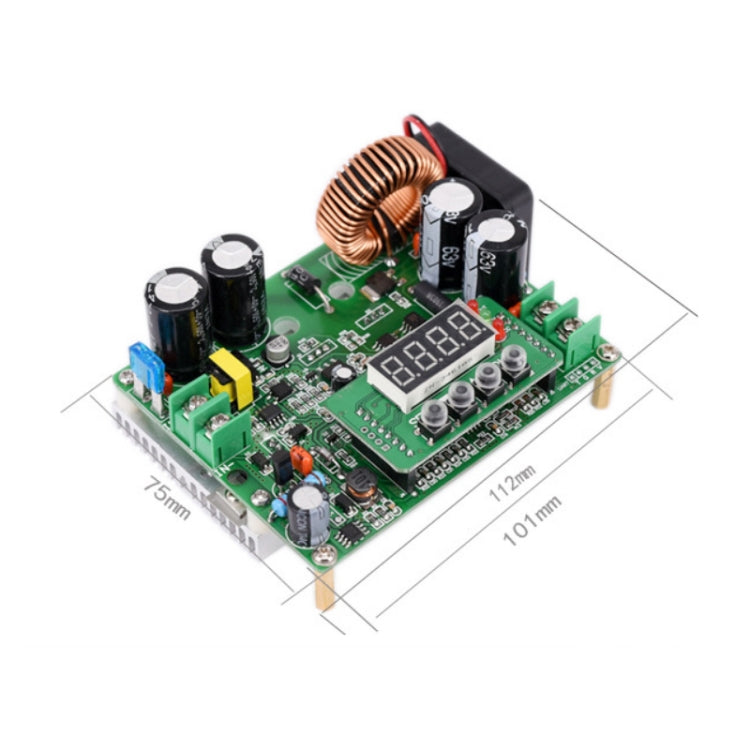

10. Dimensions: 101x75x48mm
11. Advanced microprocessor, technical keys can accurately hole section output voltage and current
12. 4-digit high-brightness digital tube, real-time display of voltage, current, capacity and time
13. Automatic output after power on can be set
14. Lockable parameter adjustment keys to prevent misoperation of output voltage and current parameters
15. Communication with microcontroller or computer through the reserved port, easy for secondary development

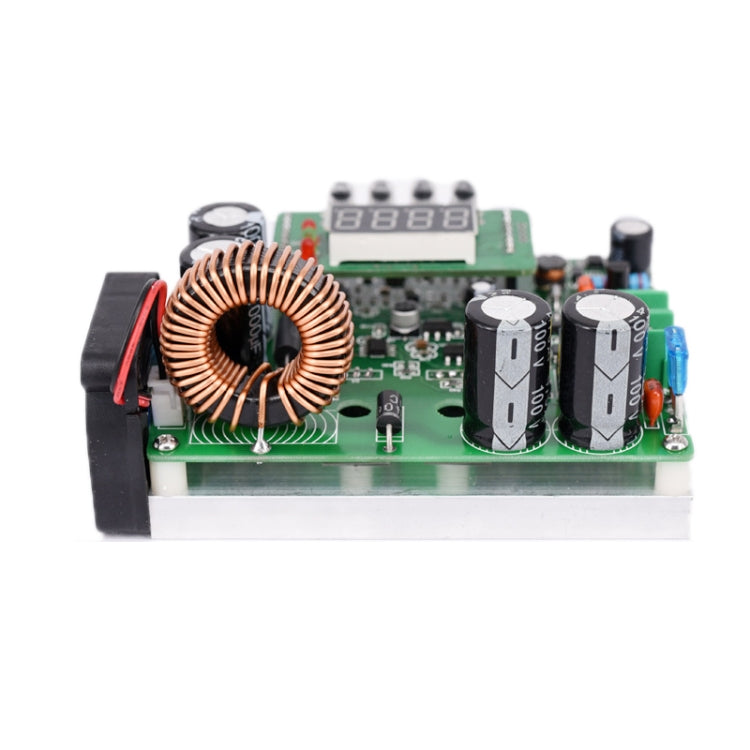

16. Two 0. 8mm double-wire wound high-current inductors, two 470uF/100V electrolytic capacitors for input, and two 1000uF/63V electrolytic capacitors for output 17. self-contained fan cooling, low temperature rise, and very good output voltage quality.
Day, full digital display, convenient and easy to use.
18. Can be constant voltage, constant current output
19. module with working status indicators, respectively output OUT, constant voltage CV, constant current cc indicators, you can view the working status in real time

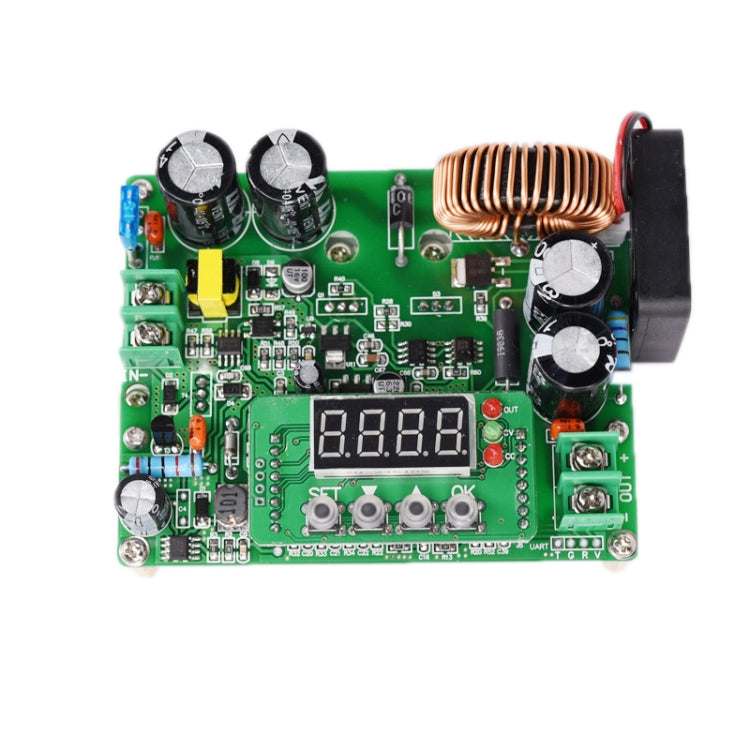

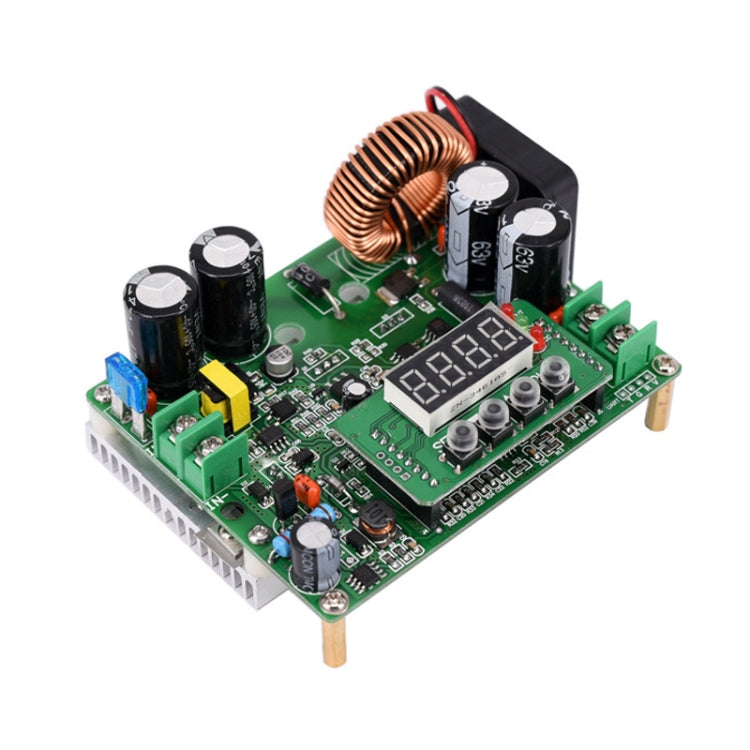

20. DKP6012 DC-DC digital control buck module is a programmable buck module with full digital display, small size, high power, high efficiency and stable operation.
21. Advanced microprocessor control, voltage and current are precisely adjusted by keypad, constant voltage and current output, and can be communicated with microcontroller or computer through the reserved port for secondary development
22. With four eight-segment LED digital tube, can display the output voltage and current in real time
23. With working status indicator, you can check the working status in real time
24. With automatic output function, can be turned on or off according to the need, in addition, the machine also has a key lock function, can lock the parameter adjustment keys, to prevent misadjustment of output voltage and current parameters
