Measurement function:
1. DC millivolt voltage: 100mV
2. DC voltage: 30V
3. DC current: 20mA
4. Loop power supply: 24V
5. Switching quantity: Yes

Output function: 1. DC millivolt voltage: 100mV
2. DC voltage: 10V
3. DC current (active): 20mA
4. DC current (passive): 20mA
5. Manual step output: Yes
6. Automatic waveform output: Yes

Description:

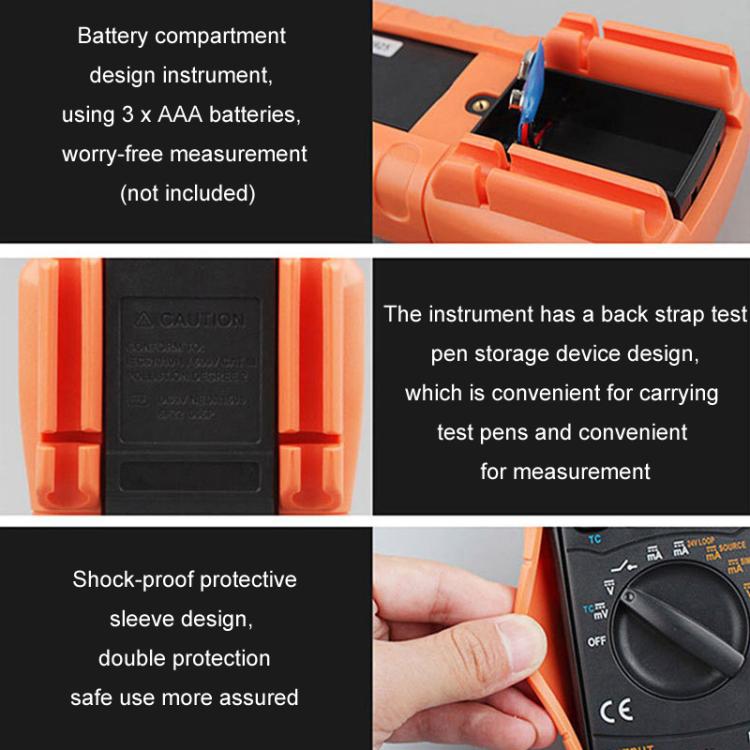

1. Shockproof protective cover, double protection design, anti-fall, safe and reliable to use
2. The back of the instrument is designed with a bracket for easy placement and easy data viewing
3. High-definition LCD display, clear handwriting without ghosting, simple and easy to understand, with backlight display, convenient for dark environment operation and measurement
4. Battery compartment design instrument, use 3 AAA batteries, worry-free measurement (not included)
5. The back of the instrument is designed with a test pen storage device,which makes it easy to carry the test pen and convenient for measurement
6. Size: 147x75x42mm
7. Weight: Approx. 230g
