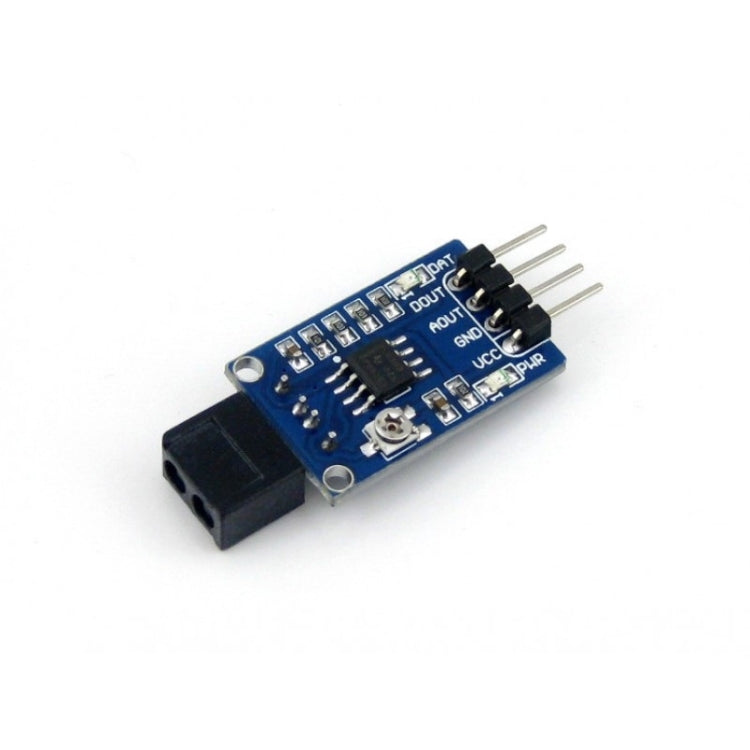

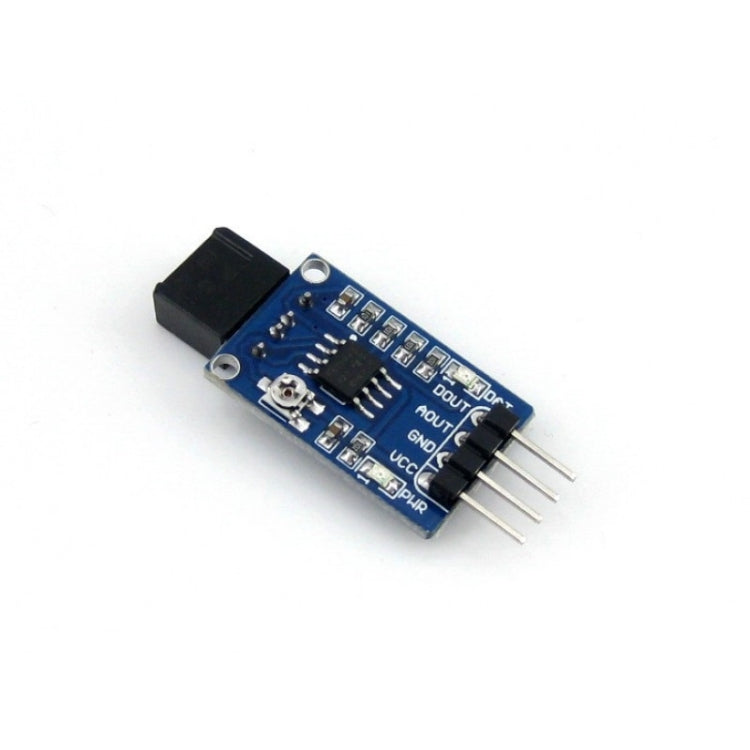

Waveshare Infrared Reflective Sensor

Name: Waveshare Infrared Reflective Sensor
Brand: Waveshare
SKU: ZY16355427
Availability: InStock

Sale Sold out Pre-order

R 229.00

FREE SHIPPING

Ships in 1-3 Days

Estimated delivery:

✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.

Shipping Included Overseas 6-13 bus days 6-Month Warranty 7-Day Returns

Description

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: MCU
• Material: Electronic components
• Key feature: Adjustable sensitivity
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module

Overview
1. Reflective infrared Transceiver
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator

Specifications
1. Power: 3.0V ~ 5.3V
2. Dimension: 25mm * 15.9mm
3. Mounting holes size: 2.0mm

Applications
1. Robot path tracking
2. Obstacle-avoiding car
3. Pipeline counter

How to Use

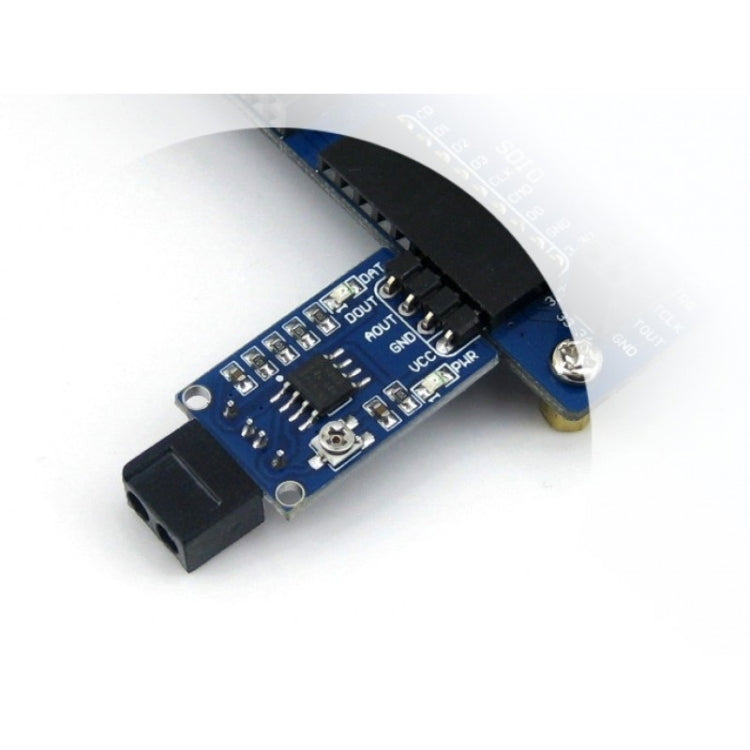

In the case of working with a MCU:

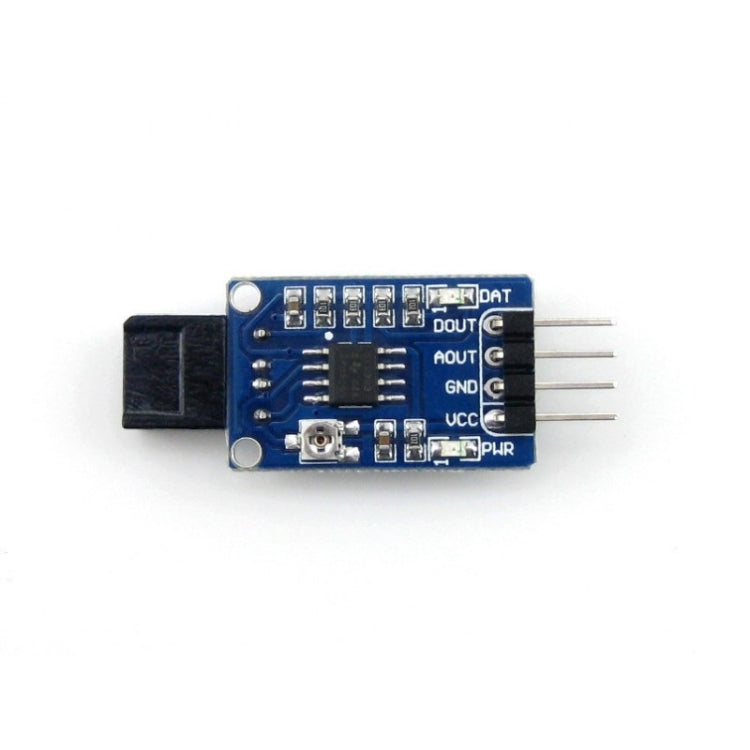

Pinouts
1. VCC: 3.0V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT : MCU.IO (digital output)

Package Contents
1. Infrared Reflective Sensor x1
2. 4-pin custom connector jumper wire x1
